Industrial fruit&vegetable drying machine

Product Overview

Description







Model		ETHK-20
heating capacity	KW	20
Drying  cabinet volume	M3	30
Power input	KW	5
Max. Amper	A	8,3
Humidity reduction capacity	L/H	25-40
Max. hot air temperature	0C	65
Cooling gas	KG	mixed gas-4
Power Supply	V/HZ	380/3/50
Air flow	M3/H	3100
Compressor type	TYPE	scroll
Compressor brand	BRAND	daikin-hitachi
Copmressor quantity	PIECE	1
Noise	db(A)	68
Diemensions NET	MM	1000*1140*2180
Net Weight	KG	296

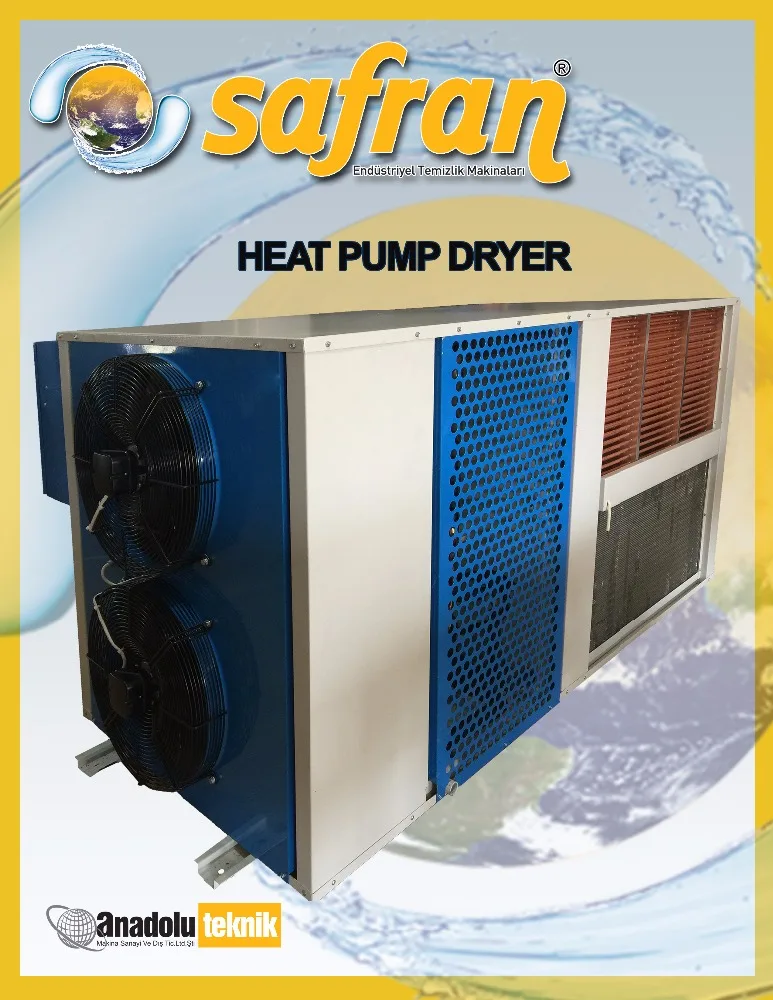

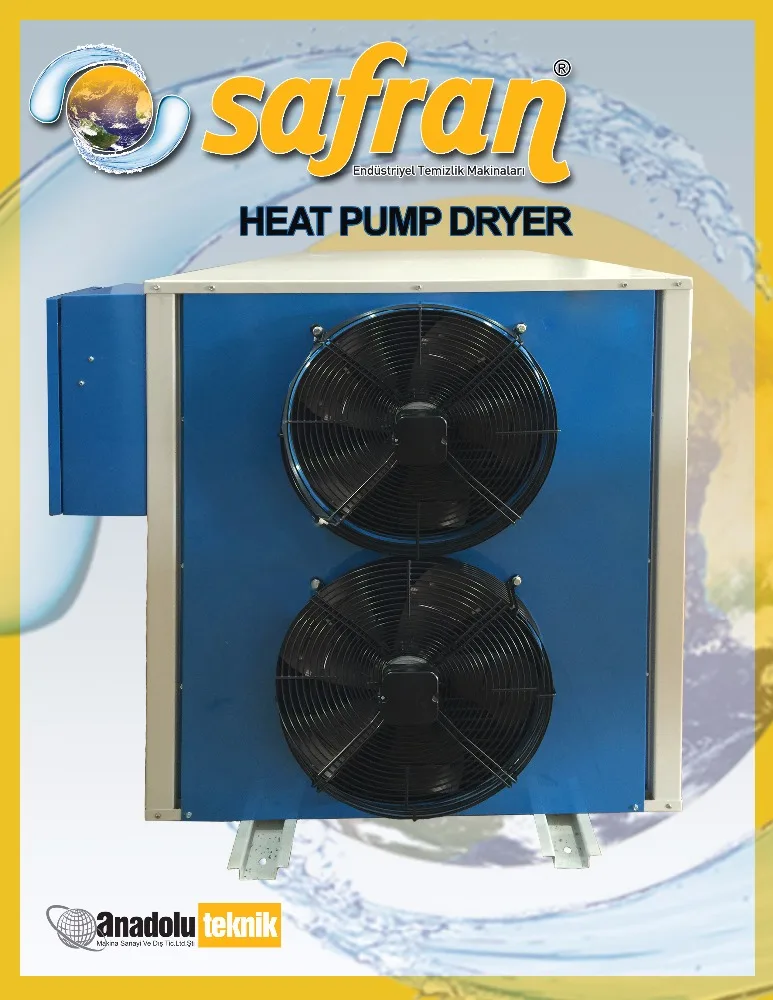

HEAT PUMP DRYER



Heat Pump Dryer Using Areas: Grape, Fig, Apricot, Apple, Lemon, Plum and other fruits, Tomato, Paprika, Laurel Leaves, Corn, Tobacco Leaves and other dried vegetable; Meat, Fish,  Pastrami and other dried foods



Function of Heat Pump Dryer: Heating, Drying and Humidty Reducing



Princible of Heat Pump Dryer Working System: Firstly, Heat Pump Dryer increases ambient temperature of inside of cabinet at 60 Celcius degree. And then the water inside of fruits, vegetables or any other foods starts evaporating. Evaporated water is carried to drier heat pump by fans. And it turns to liquid phase over there, later this water is thrown out. By this way, drying p drying process is carried out.



The Benefits of Heat Pump Dryer:

1- Heat Pump Dryer is a renewable energy system. You can use solar battery to system and you can reduce operating cost to zero.

2-Comparing fossils fuels, you can save up to %40 to %80.

3-Without taking hot air outside, you can reduce humidty and there will be no heat lose.

4-Dried food will not give different odour , except its own natural odour. There will be no any oxidation , decomposition, explosion or taste changing.

5-There is a hijgenic drying.

6-By automation system, you can make controlled drying.

7-There is no risky such as explosion, fire or poisoning.

8-Easy and fast assembly.

9-Comparing other kind of drying system, our system is more healthful and and more faster.
