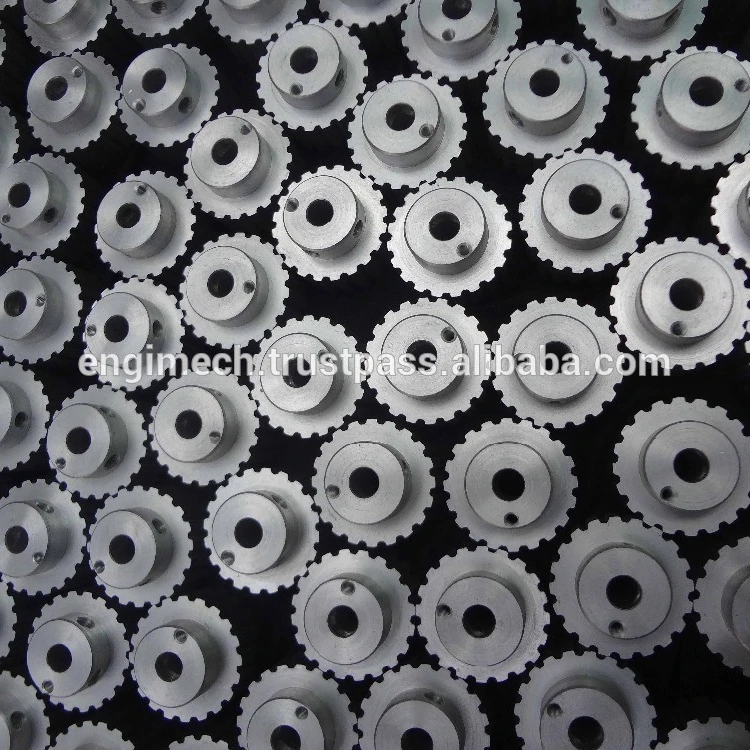

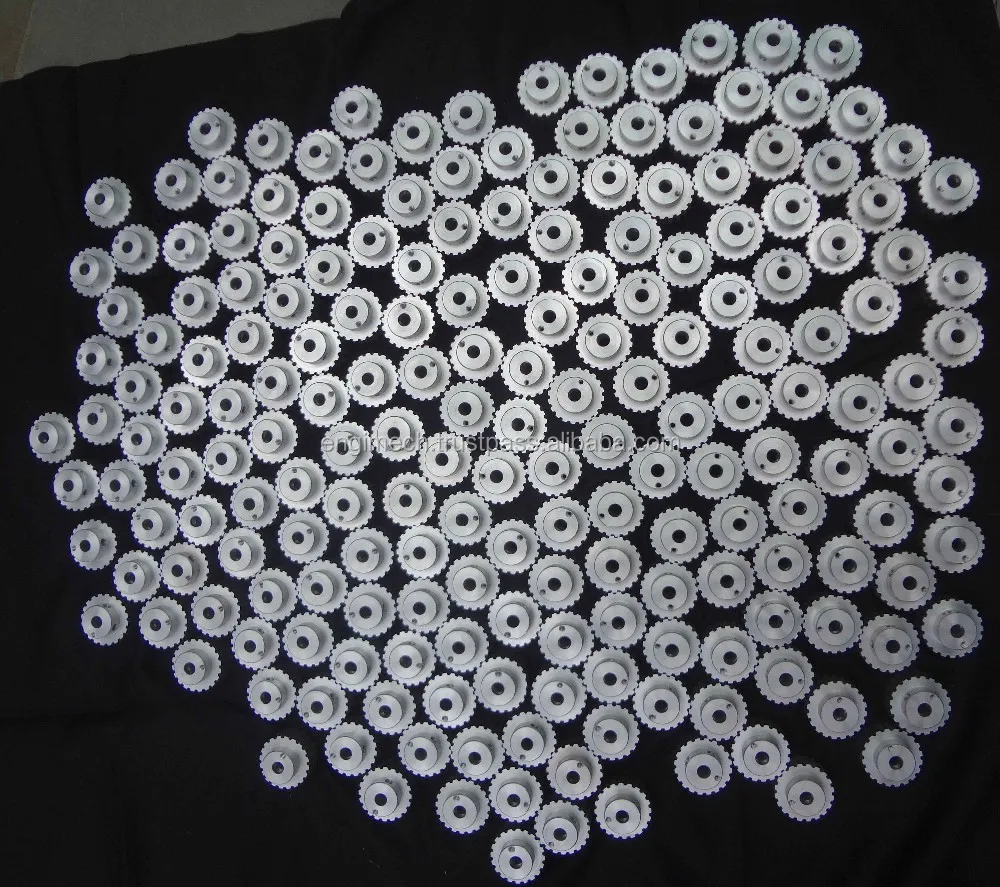

Pulleys used in Labeling Machinery

Product Overview

Description

Teeth Profile Available	No. of Teeth	Parts	Bore Size Available	Material	Surface Treatment
MXL, XL, L,H,   T2.5,T5,T10;   2M,3M, 5M,  8M,14M;    2GT,3GT	10~100	Can be equipped with Threaded Holes, Screws etc.	Pilot Bore   Keyway Set screws  Taper Bore	Aluminum	Anodising
Hole Precision	H7, H8



Features :

• Positive grip of belt teeth with pulley tooth eliminate slippage and speed variation


• Belt teeth engage with pulley axial groove in a smooth rolling motion, resulting in minimum friction and reduced noise and wear


• There is no chordal rise and fall of pitch line as with roller chain no belt creeper or slippage and hence no chatter of vibration.


• No friction, no elongation, no lack of tension, its unusually high mechanical efficiency and reduced bearing load and it increases bearing life.


• Drive permits smaller pulley size, short centre distance and narrower belt width, as well as horse power-to-weight ratio high, reduces space required and also weight of drive.


• Drive provides wide load capacity from sub fractional horsepower to 600HP.


• Drive ranges is from 10RPM to 10,000 RPM, between two spindles and multi-spindle drive system.


• In absence of metal to metal (metallic pulley and rubber/P.U belt) contact eliminates the need for lubrication systems, oil retaining device and their nuisance, cost, weight and possibility of product contamination.


• Suitable for all type of power transmission, indexing, positioning, conveying systems multi-shaft drive because of high accuracy drive


• Reversing drive is possible with double sided tooth belts, known as twin-powder and belt, also. Running serpentine drives.



Applications :

• Engineering : Machine Tools, Foundry Equipments, Conveyors, Compressors, Painting systems etc.


• Pharmaceuticals & Food Processing : Pulp Mill Blowers, Conveyor in warehouse, Agitators, Grain, Boiler, Bakery Machine, Labeling Machine, Robots etc.


• Agriculture Industries : Cultivator, Rice Winnower Tractor, Harvester, Harvester, Rice Planter etc


• Textile Mills : Looms, Spinning, Wrappers, High-speed auto looms, Processing machine, Twister, Carding machine. Ruler calendar machine high speed winder etc.


• Printing Machinery : News paper press, Rotary machine, Embossing, Screen Printer Machine, Linotype machine offset printer etc.


• Paper Industries : Chipper roll grinder, Cut off saw, Edgers, Flotation cell and chips saws etc.


• Building Construction Machinery : Buffers, Elevator Floor polisher mixing machine, vibrator, Hoists, Crusher etc.


• Office Equipments : Typewriter, Plotters, Camera, Money drive, Money Sorting machine, Data storage equipment etc.


• Glass and plastic Industries : Conveyor, Carton Sealers, Grinders, Creeper paper manufacturing machine, Lintec backing etc.


• Home Appliances : Vacuum cleaner, Laundry machine, Ice-cream machine, Sewing Machine, Kitchen equipments etc.
