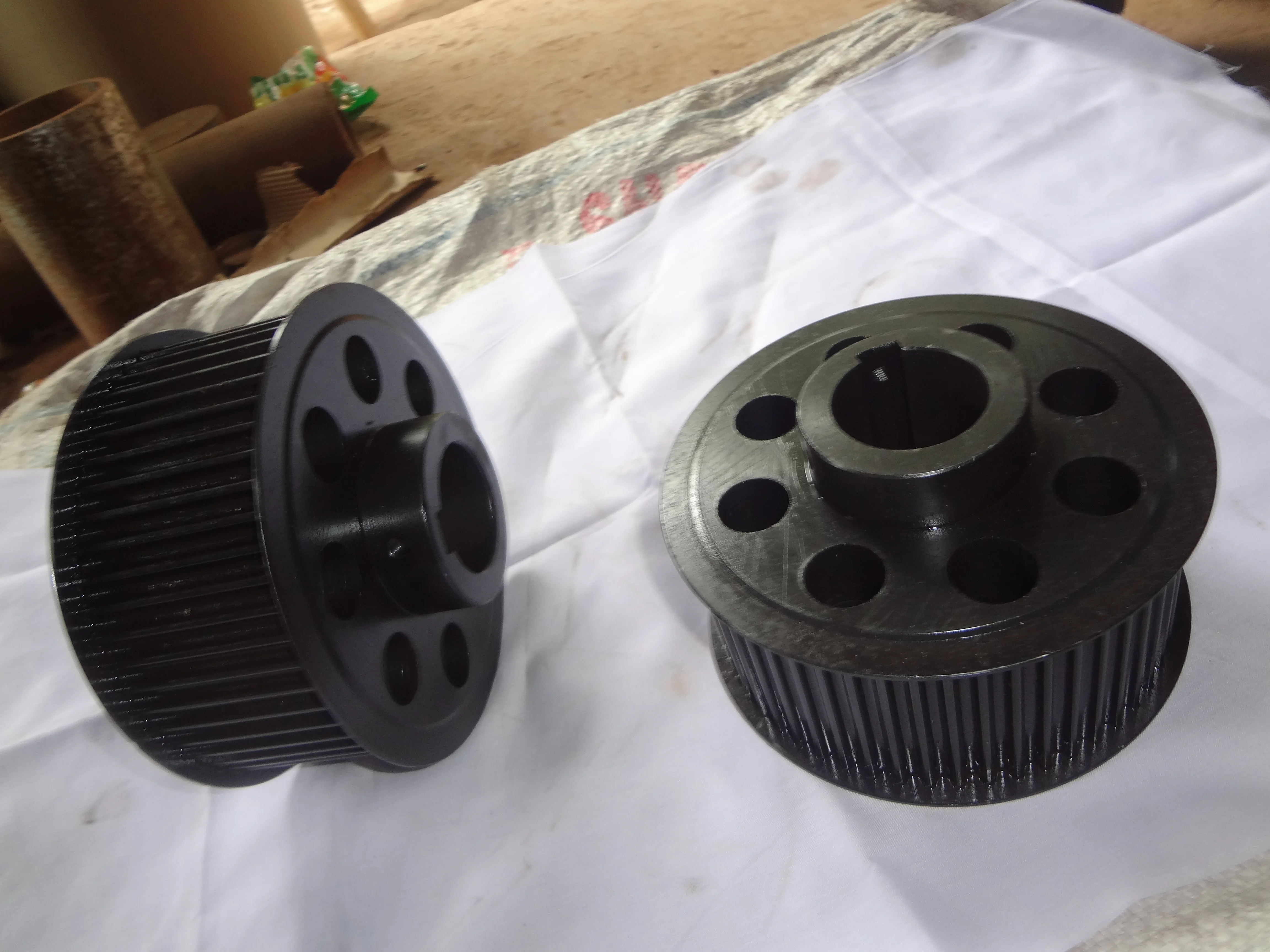

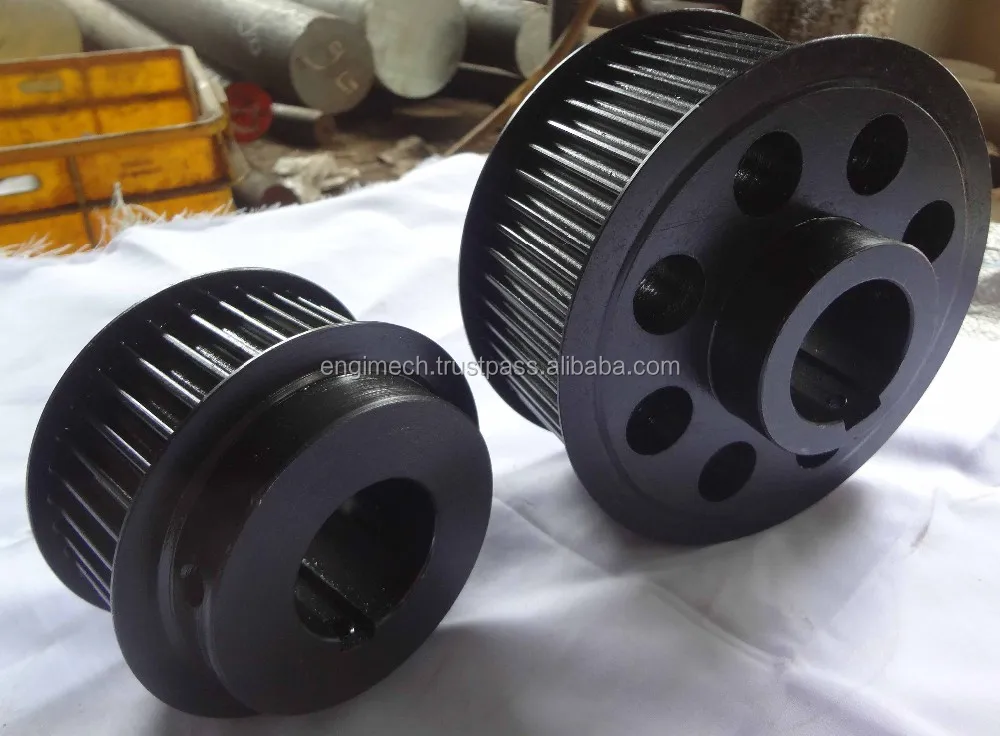

Pulleys Best Driving Tool for Various Industrial Machines

Belt Section

Pitch

Outer Diameter

(PCD less difference)

PCD = Nos. of Teeth x Pitch / 3.14

Belt Width

(Standard as follows or Customize)

Tooth Depth

Classical and Trapezoidal Teeth Shape Timing Belt Pulleys are manufactured according to ISO 5294, Pitch geometry can be as follows :

High Torque Drive Pulley (or HTD Timing Belt Pulleys) with curvilinear geometry teeth, namely as follows :

3M HTD Timing belt pulley

3.000 mm

0.75 mm

6, 9 mm

N.A.

5M HTD Timing belt pulley

5.000 mm

1.15 mm

9, 15 mm

N.A.

8M HTD Timing belt pulley

8.000 mm

1.37 mm

20,30,50,85 mm

3.560 mm

14M HTD Timing belt pulley

14.000 mm

2.80 mm

40,55,85,115,170 mm

N.A.

Nos. of Teeth

Parts

Bore Size Available

Material

Surface Treatment

10~100

Can be equipped with Threaded Holes, Screws etc.

Pilot Bore

Keyway

Set screws

AISI 1045 or 1050 (Low Carbon Steel)

Black Oxide or Zinc plating

Precision Hole

As per drawing
