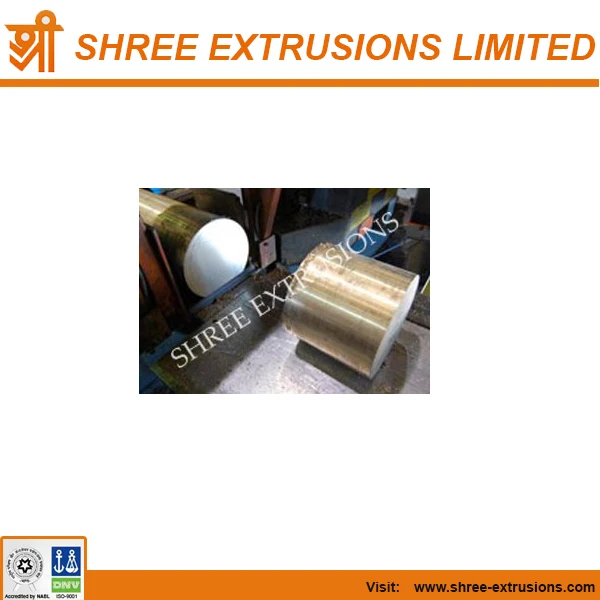

Электрическая резистивность CW614N, архитектурные бронзовые стержни для электрического использования

Share on (50028729398):


Price:9,30 $ - 10,00 $

Quantity:


Product Overview

Description



" Architectural Bronze Rods for electrical Use  "













Product Description

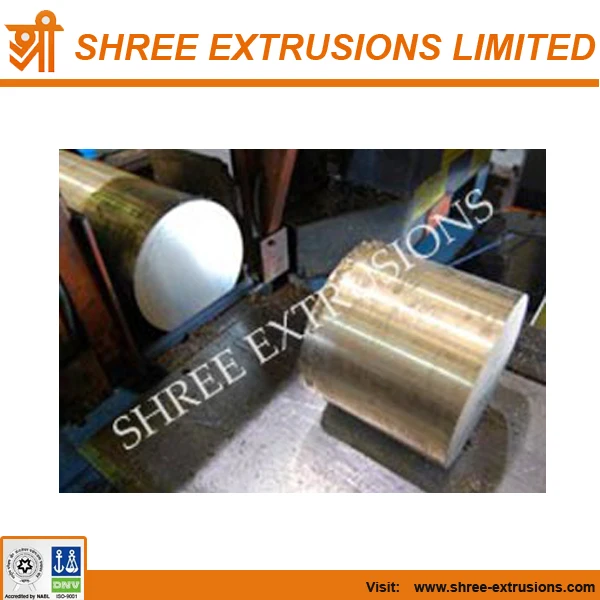

C38500 Architectural Bronze rods:






The exceptional hot working characteristics of C37700 makes it the classic alloy for forgings. With outstanding flow characteristics, this alloy can be forged and machined into sophisticated and most complex components. C37700 can also easily be electroplated with various finishes.

Typical Uses for C37700 Forging Brass :-


  • Builders Hardware :Hinges, Drawer Pulls, Lock Cams, butts, Slide Bolts, Lock Bodies, Drawer Handles

  • Consumer :Picture Frames, Funeral Urns, Lamps, Fireplace Screens, Straight Edges, Handles, Hot Combs (to straighten hair), Squeegee Retainers

  • Architecture:Elevator Trim, Thresholds, Door Frames, Handrails, Terrazzo Strip, Shower Doors, Privacy Sun Grills, Trim, Store Fronts, Architectural Forgings, extrusions, Architectural Moldings, Window Mullions, Bathroom Partition Brackets

  • Industrial:Valve Trim, Press Brake Ram Clamps, Valve Stems, Valves, Gauges, Valve Seats, Forgings, Wheeled Racks




Equivalent Specifications:




























SpecificationsDesignation
ISOCuZn39Pb3
EuropenCuZn39Pb3
BSCZ-121
JISC 3561
RussianLS59-3


Chemical Composition:

























 CuFePbZn
Min/Max55.0 - 59.00.352.5 - 3.5Rem
Nominals57.0000-3.000040.0000


Specifications:












End ProductDesignation
ShapesASTM B455


Fabrication:




















































Joining TechniqueSuitability
BrazingGood
Butt WeldFair
Capacity for Being Cold WorkedPoor
Capacity for Being Hot FormedExcellent
Coated Metal Arc WeldingNot Recommended
Gas Sheilded Arc WeldingNot Recommended
Machinability rating90
Oxyacetylene WeldingNot Recommended
Seam WeldNot Recommended
SolderingExcellent
Spot WeldNot Recommended


Physical Properties:
































































Product PropertyUS CustomaryMetric
Coefficient of Thermal Expansion11.65 ·10-6 per oF (68-572 F)20.9 · 10 6? per °C (20-300 C)
Density0.306 lb/in3 @ 68 F8.47 gm/cm3 @ 20 C
Electrical Conductivity28 %IACS @ 68 F0.164 MegaSiemens/cm @ 20 C
Electrical Resistivity37 ohms-cmil/ft @ 68 F6.15 macrame-cm @ 20 C
Melting Point Liquid US1630 F888 C
Melting Point Solid US1610 F877 C
Modulas of Elasticity in Tension14000 ksi966500 MPa
Modulas of Rigidity5300 ksi36540 MPa
Specific Gravity8.478.47
Specific Heat Capacity0.09 Btu/lb/°F @ 68 F377.1 J/kg · °K at 293 K
Thermal Conductivity71.0 Btu · ft/(hr · ft2 ·°F) @ 68 F122.9 W/m · °K at 20 C


Sizes Available:




































Hollow RodsMin Bore Size 20 mm and Max OD 100 mm
Round Rods6mm To 130 mm
Hex5mm To 60mm
Square4mm To 60mm
Flat5mm Min Thickness and max Width 120mm
Profiles / SectionsAS per Customer Drawing
BilletsUp to 200 mm
IngotsAS per Specification











Company Information





About Us


Established in the year 1989, Shree Extrusions Limited has earned a prestigious position as a manufacturer, supplier and exporter of Extruded Profile in Non Ferrous Metals. Our never-ending list of products includes Aluminum Bronze Rods, Nickel Silver Wire, Aluminum Bronze, Copper Alloy and Brass Rod. Moreover, we also offer Brass Wire for Leaded Ball Pen Tip, Nickel Silver Wire for Ball Pen Tip, Brass Wire, Aluminum Silicon Bronze Rod and Naval Brass. We have been able to earn the accolades of many renowned organizations such as Govt. of India Ministry Defense, Hindustan Shipyard Ltd, Naval Dockyard and Ship Building Centre owing to the international level of quality.

Though, our products are acclaimed worldwide but we have built a strong client base in Asian Countries. Our well established infrastructural setup is located in Jamnagar, Gujrat. The use of latest technologies such as Spectrometers (spark as well as ERF X-Ray Fluorescence) and Electronic & Computerized UTM makes us offer world-class quality products. The entire range products offered by us are valued for its excellent performance, longer service life, economical prices and high tensile strength. These are mostly used in architectural fittings, hardware, electric components, forged components, industrial valves, defense components and pump rods. We fabricate our range of products using high-grade raw material such as virgin non ferrous metals, scraps and
turning.



Our mentor, Shri Radheshyam L. Kabra has more than 35 years of experience in the domain, enabling him to proficiently manage our organizational activities. Under his able guidance, we have been able to achieve enviable market credibility.











Certifications













We offer finest range of extruded non ferrous metals & metal profiles, which are appreciated all through the Asian countries. Due to hard-work and premium quality products, we have earned the certificates & approvals from the following prestigious organizations:



  • Govt. of India Ministry Defense

  • Our Laboratory has been approved by SQAE(AR), Mumbai

  • Garden Reach Shipbuilders & Engineers Limited, Calcutta

  • Material Organization Mumbai, Vishakhapatanam, Khambhalia

  • Hindustan Shipyard Ltd., Vishakhapatanam

  • Mazagon Dock Limited, Mumbai, India

  • Naval Dockyard, Mumbai

  • Ship Building Centre, Vishakhapatanam


Applications Areas


Our range of aluminium extruded profiles in non ferrous metals finds applications in various areas given below:



  • Defense components

  • Naval components

  • Bearing cages

  • Condensed components

  • Marine hardware

  • Propeller shaft

  • Architectural fittings

  • Hardware

  • Electric components

  • Forged components

  • Industrial valves

  • Pump rods


Along with the standard specifications, we also suffice custom order of clients to meet special applicability.
