Reliable Proseven earthquake resistant mat for projector
- Outstanding vibration damping matched to the vibration force

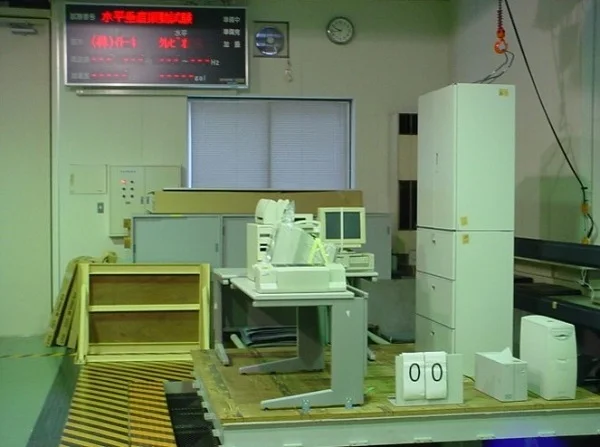

- Earthquake resistance up to class 7 earthquakes. Passed tests for 1,000 gal earthquake resistance
- Simply stick to the side of the desired object
Product Description
A new gel material with the features of both a solid and a liquid absorbs a range of vibration forces.
Adhesive power for a 100x100mm sheet is 3,550N (perpendicular) and 1,500N (horizontal). Supports stainless steel
Service life: 5-7 years
Supported temperatures: -20℃ to 75℃
https://www.youtube.com/watch?v=YcSEd4lKZ2o
Made from 5mm thick polyurethane.

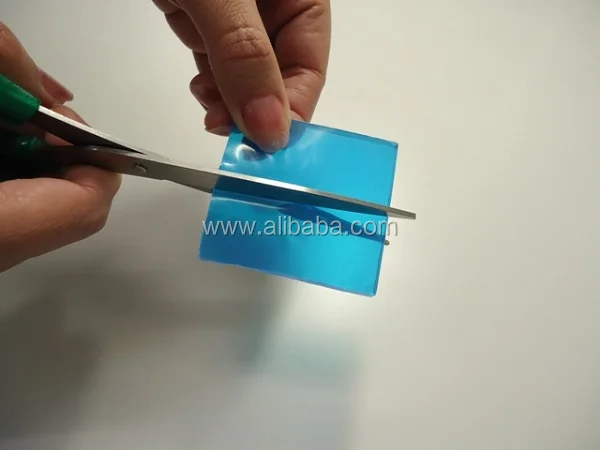

Easily cut with scissors to match the shape of the target surface.
Cut material using the conversion of 1kgf per 1cm squared.
The mat has passed certifications by public institution for safety standards.
These include RoHS, US inflammability tests, UL94, V-2, mold-resistance tests, et cetera.
Withstands long-period ground motion unique to skyscrapers and tall apartment buildings.
Can also be installed on surfaces at factories,
eliminating the need to install anchors and thereby removing any issues with dirt and mineral dust being produced.
| Model number | mat size (mm) | quantity | earthquake resistance (kg) | service life (year) |
| P-N30L | 30 x 30 | 4 | 40 | 5 to 7 |
| P-N40L | 40 x 40 | 4 | 64 | 5 to 7 |
| P-N50L | 50 x 50 | 4 | 100 | 5 to 7 |
| P-N2016L | 20 x 20 | 16 | 64 | 5 to 7 |
| P-N1001L | 100 x 100 | 1 | 100 | 5 to 7 |
| package size (mm) | H (mm) | W (mm) | D (mm) | Weight (g) |
| P-N30L | 183 | 121 | 6 | 30 |
| P-N40L | 183 | 121 | 6 | 45 |
| P-N50L | 183 | 121 | 6 | 65 |
| P-N2016L | 183 | 121 | 6 | 45 |
| P-N1001L | 183 | 121 | 6 | 67 |
Offered in five types based on the mass of the item in question.
A set supports seismic load from 40 to 100kg.
The P-N1001L is a free size that can be cut to shape with scissors.

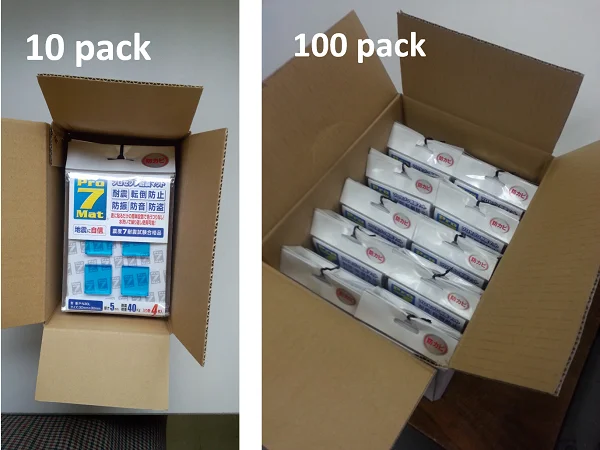

For packs of 10 or 100 units:
Twice-packed in reinforced cardboard

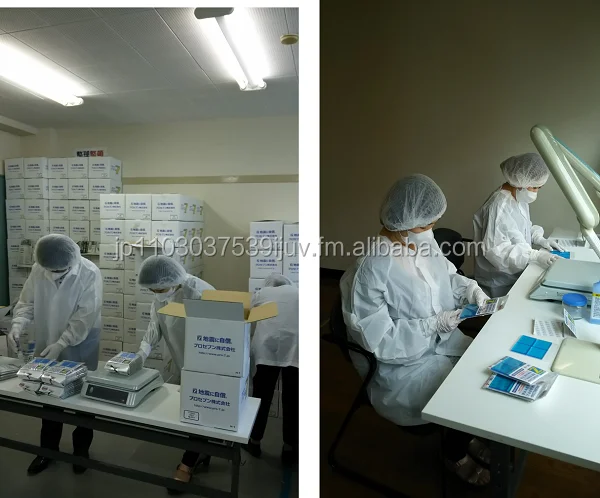

All steps, from production through crating, are handled in-house.

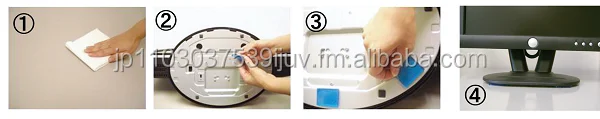

1. Remove any dust or dirt from the surface of the object and place of installation.
A dirty surface may cause decreased adhesion.
2. Remove one side of the protective film and attach to a flat surface.
3. Once the film has been smoothly adhered, remove the other side and attach the item.
4. After installation, do not touch the product for some time until it settles.
Note that the adhesive is very strong, so gently pull off from the edge inward.
Attempting to rapidly remove the product can cause breakage of the installed surface.
* If the backing fails to come off after gentle tugging, dip a hard plastic card
(e.g., an old credit card) in water and insert it between the mat and the object to remove more smoothly.
| Compatibility chart | |
| materials | adhesion |
| PP | Bad |
| PVC | Excellent |
| ABS | Excellent |
| PMMA | Excellent |
| PC | Excellent |
| Al | Good |
| SUS | Good |
| PE | Bad to Not recommended |
| Silicon resin | Not recommended |
| Fluorine treatment | Not recommended |
| Water repellent treatment, Anti-stain treatment | Not recommended |
Compatibility: if cellophane tape can be adhered to the target object, this product will adhere.

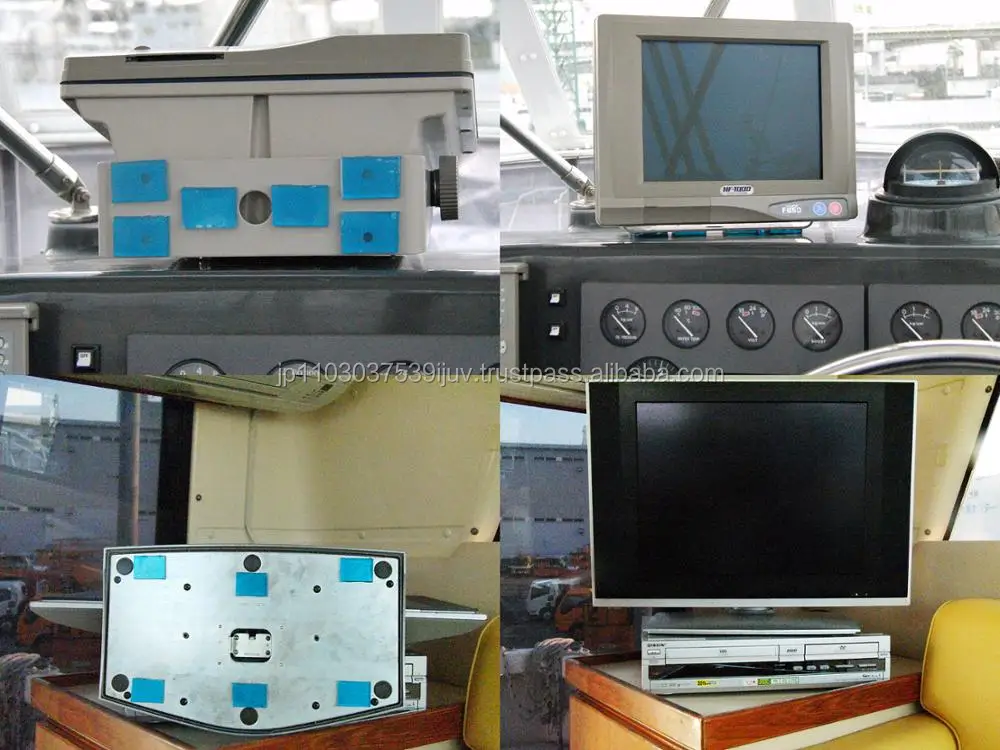

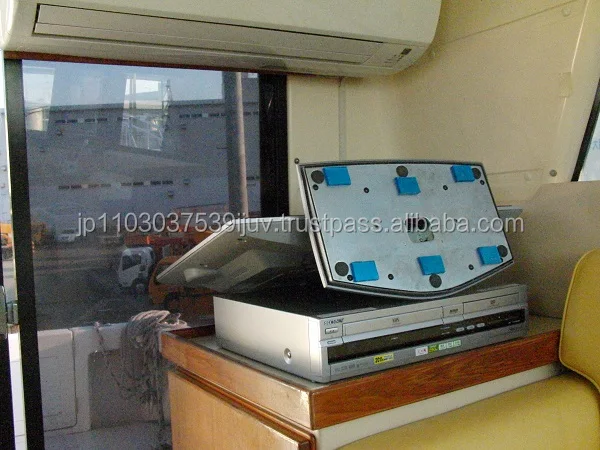

Used on a boat

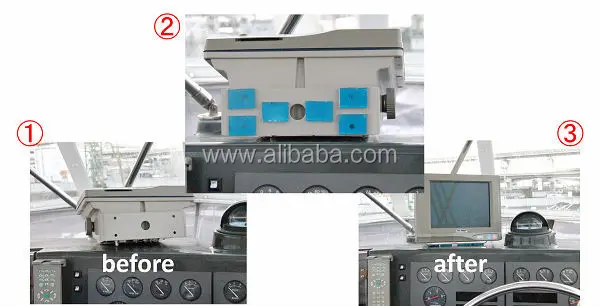

Used on a boat
Product Uses

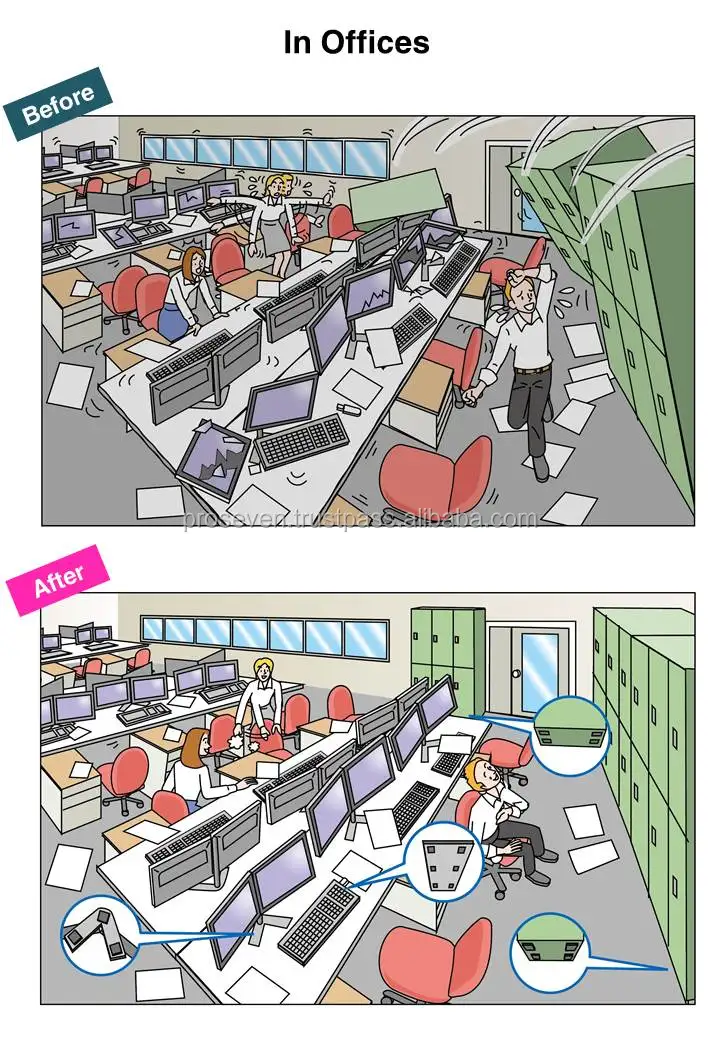

Office
Factory

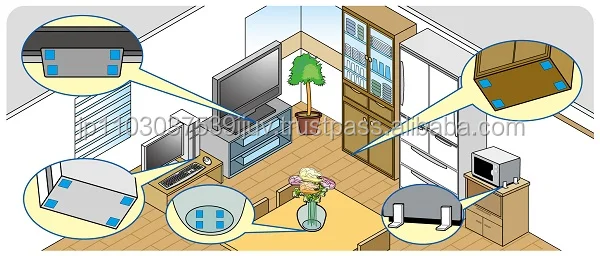

Home
Car
Boat and Yacht
Related Products
Proseven Mat
Proseven Biomass Mat
Proseven Belt Stopper for TV
Proseven L-shape Stopper
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturer.
Q: Are your items made in Japan?
A: Yes, we are manufacturing at our factory in Japan.
Q: Can we ask for a sample to verify the quality?
A: Yes, the first samples will be free, but the shipping and taxes should be on your side.
Q: How do you ship samples?
A: We usually send samples via EMS.
Q: How do we order?
A: When you find an item that you would like to purchase, please send your order requirement to our email.
Q: What mode of payments do you accept?
A: We can accept PayPal and T/T.
Q: How do you ship products?
A: We usually send products via DHL or EMS.
Company Information
Proseven Co., Ltd. has delivered safety and security to our customers since its establishment in 2000.
Since we are responsible for the manufacturing, packaging, and delivery of our earthquake resistant pads, we can even respond to individual requests and create original packages to accommodate.
Business Description: Development, production, and sales of earthquake resistance and anti vibration materials
Main Distributors: Electronic retail stores, home improvement construction and retail stores, DIY goods stores, hypermarkets, OEM
Export Experience: China, Korea, Peru, Indonesia, Singapore, France, Thailand, Russia
"Proseven" created from the lessons of the Great Hanshin-Awaji Earthquake
Proseven super sticky gel pads have proven to be effective seismic measure in many fields, protecting not only human life, but also computer systems, furniture, works of art, electronic products, etc.
All of our funds were poured into the development of the original Proseven pads, and it will continue to be further improved.
With your support, we strive to attain the position as a key material and further contribute to the safety of people all over the world.

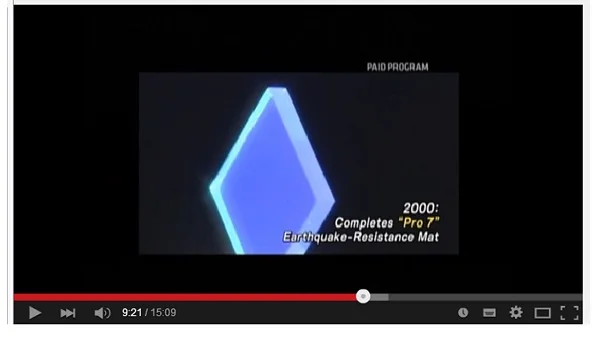

https://youtu.be/OGH44jt9wd0
