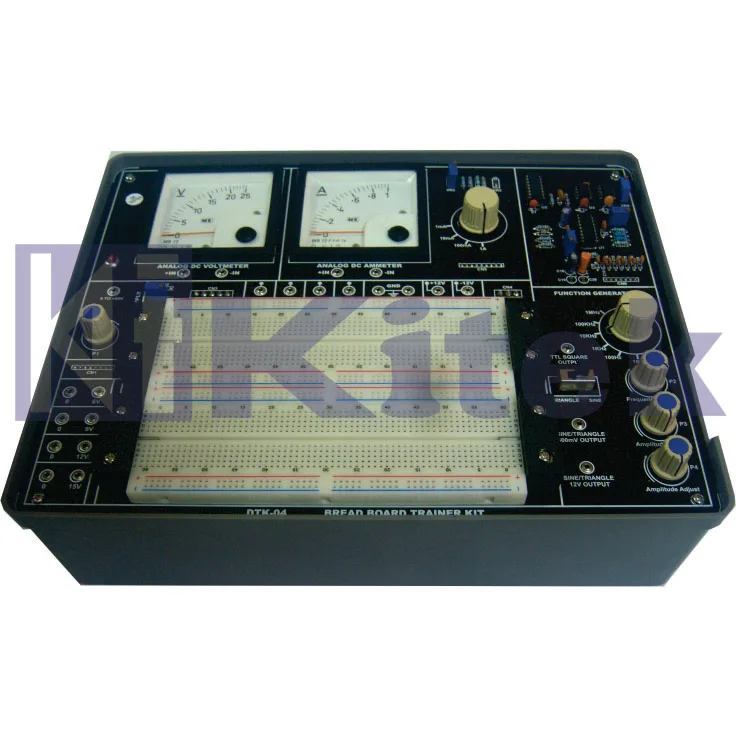

001 DTK 04 digital trainer kit / digital analog trainer kit / digital ic trainer

Product Overview

Description

DTK-04 is a single board Breadboard Trainer Kit  which is widely used to train engineers to develop/ Study hardware for any Analog integrated circuit in laboratory. This board having Sine/ Square/ Triangle  wave form Generator, Panel Meter, General purpose Breadboard, AC/DC Supplies for experimenting the analog techniques. In this board all interfacing between onboard source & breadboard are done by patch chords.

Specifications

·      Function Generator

      -   Provides Sine, Square and Triangular output  waveforms.

      -   Frequency variable from 1Hz to 100KHz in five steps.

·      Panel Meter

      -   Analog DC Voltmeter of 0 to 25 V

      -   Analog DC Ammeter of 0 to 1 A

·      Power Supplies

      -   Fixed DC Power Supply: ±5V/1A, ±12V/1A, ±12V/200mA, GND.

      -   Variable DC Power supply of 0 to +24 V

      -   AC Power Supply of 0-6V, 0-9V, 0-12V & 0 -       15V

·      Bread Board Area

      -   Four Distribution Strip of 100 tie points each  totaling 400 tie points

      -   Two Terminal Strip of 630 tie points totaling  1260 tie points

·      Interconnections

      -   All interconnections are made using 2mm banana Patch cords.

·      All ICS are mounted on IC Sockets.

·      Bare board Tested Glass Epoxy SMOBC PCB is used.

·      Attractive Metal/Wooden enclosures.

·      Set of 2mm Patch cords for interconnections

·      User's Manual with sample experiments.
