Fibre Optics Communication Trainer Without PC Communication Facility




Specification

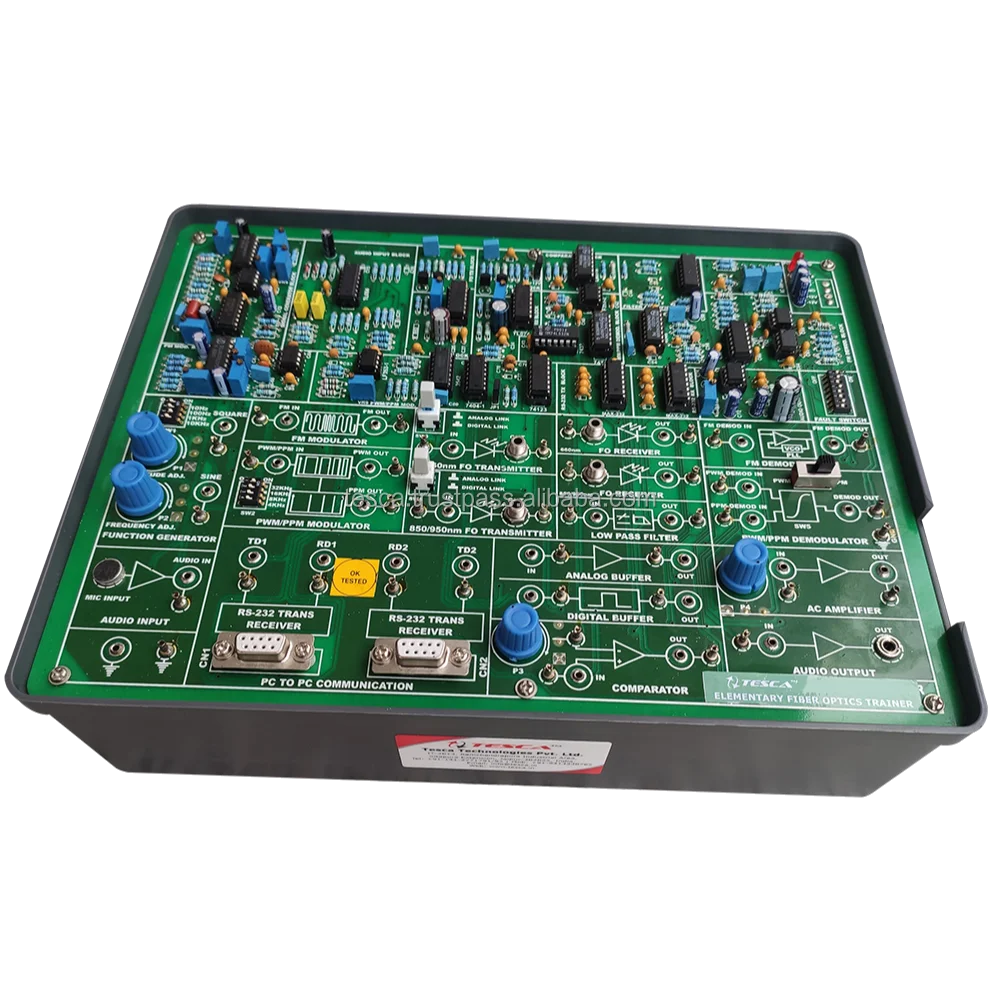

Order Code -28526 is a single board Fiber Optic Trainer Kit to study the characteristics of Fiber using Digital and Analog techniques. This kit also facilitates with digital and analog Modulation & Demodulation communication techniques.

SPECIFICATIONS:
-Two Transmitter Fiber Optics LED having peak wavelength of emission 660nm & 950nm.
-Two Receiver Fiber Optic photo detector.
-Modulation & Demodulation Techniques using Direct AM, FM, PPM, PWM.
-On-board Analog & Digital Drivers.
-On-board AC Amplifiers.
-On-board PLL Detector
-Analog Band Width 350 Khz.
-Digital Band Width 2.5 Khz.
-4th order Butter worth 3.4KHz Low Pass Filter.
-On-board 1Hz. To 10 KHz sine wave (amplitude adjustable),
-Square wave (TTL)
-FO voice link using microphone & speaker
-RS-232C PC to PC Serial link using 9 Pin D -type.
-Four Switched Faults for transmitter & receiver.
-Fiber Optics Cable Connector type Standard SMA .
-Duly polished fiber at both end for Numerical Aperture Measurement.
-Step indexed multimode PMMA plastic cable.
-Core Refractive Index 1.492.
-Clad Refractive Index 1.406.
-Numerical aperture Better than 0.5.
-Acceptance Angle Better than 60o
-Fiber Diameter 1000 microns.
-Outer Diameter 2.2mm.
-Fiber Length 5m & 1m.
-In-Built Power Supply +5V/1.5A, ±12V/250mA.
-Interconnections 2 mm Banana Sockets
-Attractive Wooden enclosures of Light weight Australian Pine Wood.
-User's Manual with set of Patch Chords.
-Dimensons: 230mm x 140mm x 80mm (L x W x H)
-Weight : 2 Kgs

FEATURES:
-660nm and 950nm Transmitter.
-Two Nos. Of Photo Detector.
-On-board Sine & Square wave generator.
-On-board FM Modulation & Demodulation
-On-board PWM Modulation & demodulation.
-On-board PPM Modulation & Demodulation.
-On-board 4th Order Low Pass Filer.
-On-boad Fault Switch.
-In-Built Power Supply.

OBJECT:
-Setting up Fiber Optic Analog Link
-Setting up Fiber Optic Digital Link
-Study of Intensity Modulation Technique using Analog Input Signal
-Study of Intensity Modulation Technique using Digital Input Signal
-Setting up of Propagation Loss in Fiber Optic
-Study of Bending Loss.
-Measurement of Optical Power using Optical Power Meter
-Measurement of Propagation loss using Optical Power Meter
-Measurement of Numerical Aperture
-Characteristics of F-O Converter using OPM
-Characteristics of Fiber Optic communication Link
-Setting up of Fiber Voice Link using Intensity Mode
-Study of Frequency Modulation and Demodulation
-Study of Pulse Width Modulation and Demodulation
-Study of Pulse Position Modulation and Demodulation
-Study of PC to PC Communication using Fiber Optics Digital Link



Company Profile

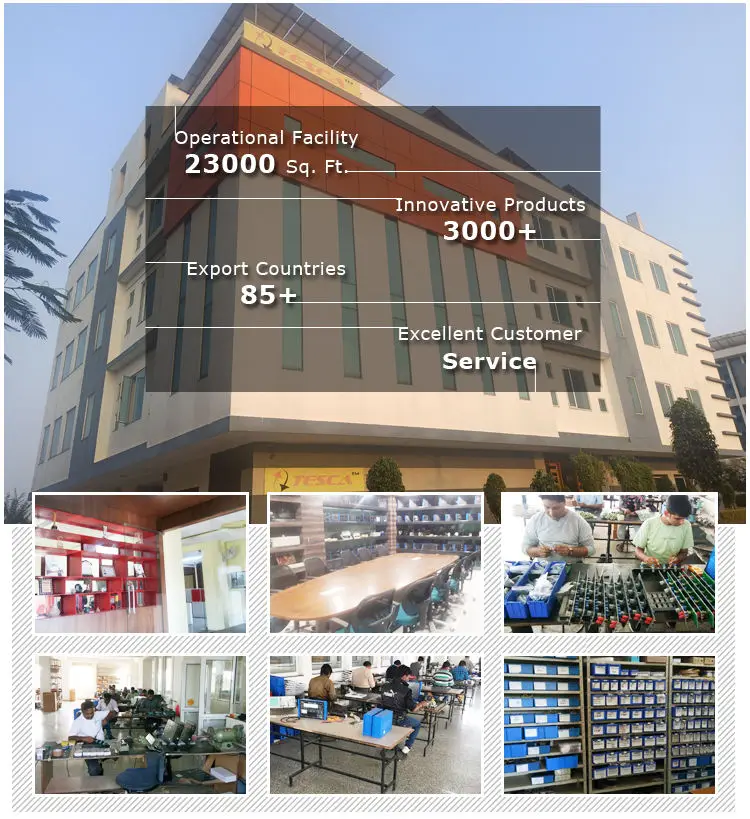

Tesca Technologies Pvt. Ltd. is World's Leading ISO & CE Certified Manufacturer & Exporter of Turnkey Projects, TVET, Skill Development, Educational Equipment, Electrical, Electronics, PLC, Hydraulic & Pneumatic, Physics Labs, Test & Measurement, Workshop Tools & Machines. Member for Electronics & Computer Software Export Promotion Council, New Delhi, India having sales in 85+ Countries Worldwide. Tesca's operations are spread out in 23000 Square Feet encompassing more than 3000 manufactured Innovative Products and Turnkey Project Capabilities for International Tenders. Tesca is an Export House established in December 2009 with our Registered & Corporate Office both set up at Jaipur. We are actively doing business in Middle East, CIS, South East Asia, Africa as well as South America Countries.

PRODUCT RANGE:
- EDUCATIONAL TRAINERS : Analog Electronics Trainer, Antenna, Satellite, GPS, Radar, RF Trainers, Biomedical Trainers, Bread Board Trainers, Communication Trainers, Consumer Electronics Trainers, Digital Electronics Trainers, Display Boards Trainers, Educational Motors & Machines, Educational Wall Charts, Embedded / Microprocessor Trainers, Fiber Optic Trainers, Instrumentation Trainers, Microwave Test Benches, PCB Lab, Physics Trainers, Power Electronics Trainers, Robotic Kits / Trainers
- TEST & MEASUREMENT INSTRUMENTS : Ac/Dc Power Supplies, Analog Oscilloscopes, Analog Portable Meters, Compact Mixed Signal Oscilloscopes, Decade Boxes (R,L,C), Digital Clamp Meters, Digital Multimeters, Digital Portable Meters, Digital Storage Oscilloscopes, Digital Tachometers, Energy Meters, Frequency Counters, IC Testers & Programmers, Infrared Thermometers, LCR Meter, Logic Probes, LUX Meters, Patch Cords, Programmable Dc Electronic Loads, Rheostats, Signal Generators, Spectrum Analyzers
- EDUCATIONAL SOFTWARES, MECHANICAL & CIVIL LAB EQUIPMENT, CIVIL ENGINEERING LAB, ELECTRONIC COMPONENTS, SOLAR PRODUCTS, MILK ANALYSER & SOIL TESTING KITS, E-LEARNING LMS, CMS, WEB & SOFTWARE APPLICATIONS, PHYSICS, CHEMISTRY, BIOLOGY, SCIENCE KITS, IT, COMPUTERS, NETWORKING, LABORATORY PLASTICWARE, SOLDERING & DESOLDERING STATION, VARIACS/DIMMERSTAT, OIL INSULATION TESTERS, FLUKE PRODUCTS, WORKSHOP HAND POWER TOOLS & MACHINES, LAB FURNITURE

EXPORT OPERATIONS:
- America/ Europe / Australia - Austria, Brazil, Bolivia, Canada, Chile, Ecuador, Finland, France, Germany, Greece, Iceland, Italy, Jamaica, Luxembourg, Macedonia, Mexico, New Zealand, Peru, Portugal, Serbia, Spain, Switzerland, Turkey, UK, USA
- Africa - Algeria, Benin, Botswana, Burkina Faso, Egypt, Ethiopia, Eritrea, Ghana, Ivory Coast, Kenya, Lesotho, Malawi, Mali, Morocco, Mozambique, Nigeria, Rwanda, South Africa, Sudan, Tanzania, Tunisia, Uganda, Zimbabwe, Zambia
- Middle East - Albania, Bahrain, Iraq, Israel, Jordan, Lebanon, Oman, Palestine, Saudi Arabia, UAE, Yemen
- Asia - Bangladesh, Bhutan, Brunei, Cambodia, China, Fiji, Hong Kong, India, Indonesia, Japan, Mongolia, Malaysia, Mauritius, Myanmar, Nepal, Pakistan, Philippines, Singapore, Sri Lanka, Taiwan, Thailand, Vietnam
Tender Support Team of 10 Engineers are working for all your tender requirements.

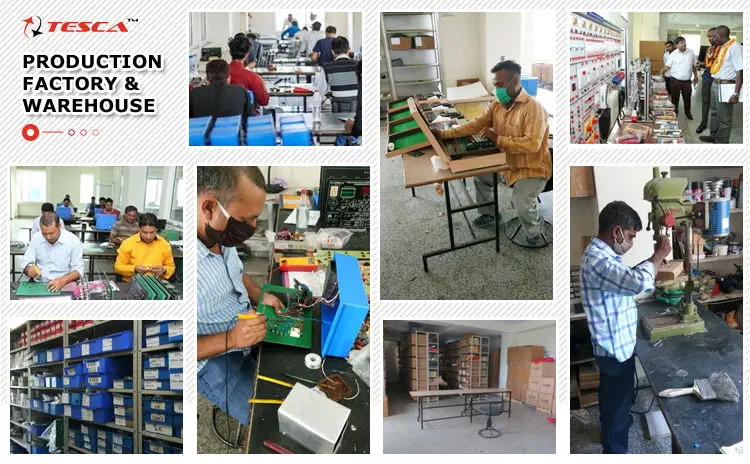

Packing & Delivery
