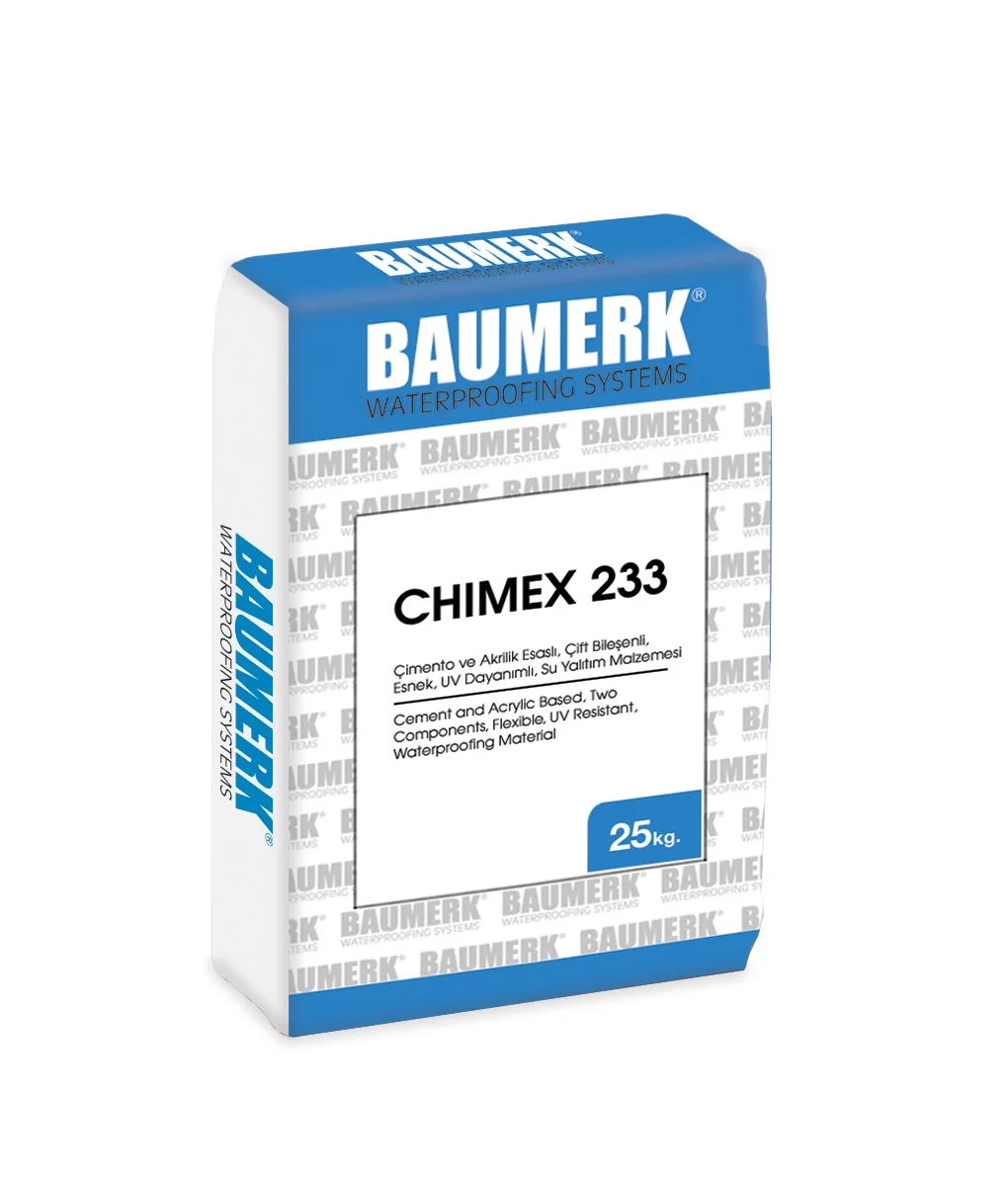

Excellent Adhesive Perfect Isolate UV Resistant Cement Based Waterproofing Material for Outdoor Exterior Applications

Product Overview

Description

White cement and acrylic based, two components, flexible waterproofing material with excellent UV resistant.

• Indoor and outdoor, horizontal and vertical applications from the direction of water


• Isolation of walkable terrace roofs (only under light weights)


• Wet areas such as bathroom, kitchen, balcony


• Swimming pools, potable and tap water reservoir


• Groundwork isolation, retaining walls and basement insulation


• Irrigation channels, manholes, concrete pipes


• Facilities such as spa and hammams


• Against salty water where water impermeability and protection is needed

• Elastic, do not shrink and crack.


• Resistant to UV.


• Water impermeable, resistant to 7 bars positive water pressure.


• Highly resistant to carbon dioxide and chlorine ions.


• Excellent adhesion property.


• Forms a perfect isolation layer under ceramic and screed due to its flexibility and high bonding property.


• High water vapor permeability allows the concrete to breathe.


• Safe to apply on uncovered deck roofs exposed to light loads.


• Provides seamless water isolation without joints.


• Can be used safely in drinking water tanks.

Content     Color Mixing Mixture Density Adhesion Strength Flexural Strength Elasticity Modulus Water Penetration (DIN 1048) Capillary Water Absorption Water Vapor Coefficient Chlorine Ion Diffusion CO2 Diffusion Resistance Resistance to Pressurized Water   Pot Life Maturity Period Application Temperature Service Temperature Drying Time Mechanical Strength  Water Impermeability Final Strength HS Code

Component A: Polymer modified admixtures and special cement Component B: Copolymer acrylic dispersion Off White 25 kg A component : 8 kg B component 1,80 g/cm3 ≥1,5 N/mm2 (28 days) ≥3,00 N/mm2 (EN 196-1) ≥2000 N/mm2 (EN 13412) 7 bars pressure no leakage (2 mm dry film thickness) ≤0,10 g (after 4 hours) (EN 12808-5) ≥3,64 x 10-4 cm2/s 260 Coulomb(ASTM C 1202) Sc ≥ 89 cm (1 mm dry film thickness) 7 bars positive 2 hours 3-5 minutes +5°C to +25°C -20°C to +80°C   2 days 7 days 14 days 3824.90.70.00.00

Preparation of Substrate

Application substrate must be dry, sound, mainly smooth, clean and fine pored. The application surface must be clear of materials which prevent bonding, such as oil, rust, paint, silicone, curing agents, detergents and paraffin wax. Weak parts of the concrete must be repaired, plasters that are not well adhered must be removed, the surface must be flat and sound, static cracks on the building must be repaired with a plaster containing LATEX or REPAMERK 301. Holes that have water outflow must be filled with WATERSHOCK. The surface must be saturated with water and must be kept moist during the application. On vertical and horizontal corners fillet with min. 4 cm radius must be applied.





Application Method

Pour liquid Part B into a clean mixing container and slowly add powder Part A while mixing with a 400-600 rpm mixer. Continue mixing for at least 3-5 minutes until a homogenous and uniform mixture is obtained. Wait for 3-5 minutes and mix again for approximately 30 seconds and becomes ready to use. Prepared CHIMEX 233 mixture is applied by brush or trowel as two or three layers. Brush application direction in each layer must be perpendicular to each other. Minimum 5 - 6 hours and maximum 24 hours, must be waited after first coat application at +20°C. Second layer must be applied before the first layer is not completely dry. In case the first layer is dry, the surface must be moisturized again before the application of the second layer. The surface must be protected from sunlight and prevented from drying quickly, for 3 days after the application of the second layer. It is recommended to use a mesh between the layers. Using mesh increases the reinforcing properties of the product.

1,5 kg/m² is applied on each layer. It is recommended that, at least 2 coats application. If application surface will be uncovered, needed 3 coats application.

33 kg set

Powder A component: 25 kg kraft bag / Liquid B component: 8 kg plastic drum

12 months in original, unopened package.

Store in dry area between +5°C and +35°C. Protect from heat, freezing and direct sunlight.

Clean tools and equipment with water immediately after use. Dried material can only be removed mechanically.
