Product Overview

Description


Cold Shrink Tubes

WETRA WCS01 Cold Shrink Tubes

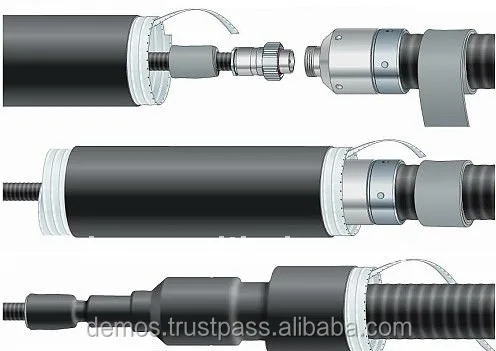

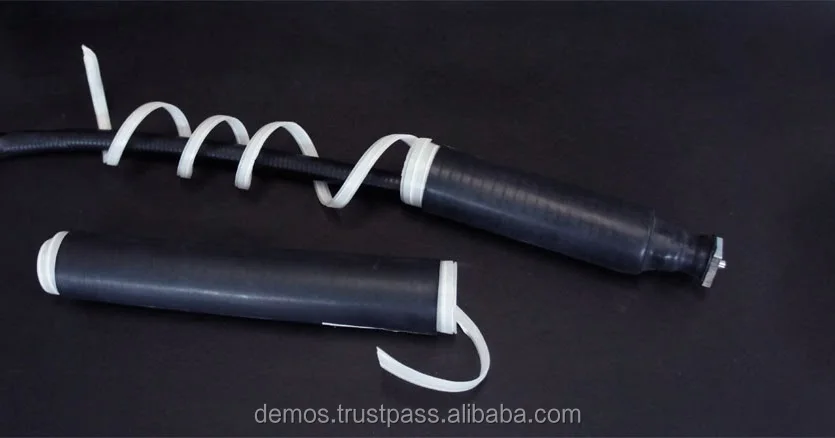

Cold Shrink Tube is insulated, open-ended, tubular, rubber sleeve which is factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over a cable connection, terminal lug, etc., allowing the tube to shrink and form a water- resistant seal. Wetra cold shrink tubes can be produced of materials such as rubber, mastic, EPDM, silicon etc upon the request of our customers.


BIG CUSTOMER REFERENCES OF WETRA COLD SHRINK TUBES

Huawei Turkey

Ericsson Turkey

NSN Turkey

Avea (Turk Telekom)

Turkcell


The insulating tube is made of solid silicone rubber which contains platinum catalysts.

\t
Simple installation, requires no special tools.
\t
No torches or heat required.
\t
Good tracking resistance and electric corrosive resistance.
\t
Good thermal stability.
\t
Allowed long time operating temperature: -65°C～ 250°C
\t
Seals tight, retains its resiliency and pressure even after prolonged years of aging and exposure.
\t
Excellent wet electrical properties
\t
Resists fungus.
\t
Resists ozone.
Application

APPLICATIONS OF WETRA COLD SHRRINK TUBES

Turkish / European brand Wetra cold shrink tubes are best for isolation of mobile phone base station antennas – jumper cable connection.

Cold shrink tube provides perfect physical protection and moisture sealing in the connection of antenna – jumper cable. It results in less vswr problems, better communication quality.

\t
Test Item
\t
Typical Value
\t
Color
\t
Black
\t
Tensile strength
\t
1232 PSI (8.5 MPa)
\t
Elongation at break
\t
710%
\t
Tear Strength
\t
169 PPI (29.6 KN/m)
\t
Compression set
(22 h/175°C)
\t
<30%

Cold shrink tubes are stable under normal storage conditions. They are not impaired by freezing or overheating due to the ambient temperatures found in storage or shipping. Normal storage and stock rotation are recommended.

Cold shrink tube’s removable core material is polyethylene and recyclable with other waste.



                                                                     DIMENSIONS


\t
Specification
\t
Before
Expansion
ID(mm)
\t
Brace Strip ID(mm)
\t
Before
Expansion
Length (mm)
\t
Before Expansion
Thickness (mm)
\t
Suit for
Diameter (mm)
\t
WCS01
\t
10
\t
39
\t
140
\t
3,5
\t
13 -- 34
Packing & Delivery

Packing Details

300 Pieces Wetra Cold Shrink Tubes for each cartoon.

The Dimensions of the carton are 65*53*43.5cm.

Each cartoon volume is 0,15 cbm.

We can make the delivery from Istanbul with air, sea, truck Cargo options.

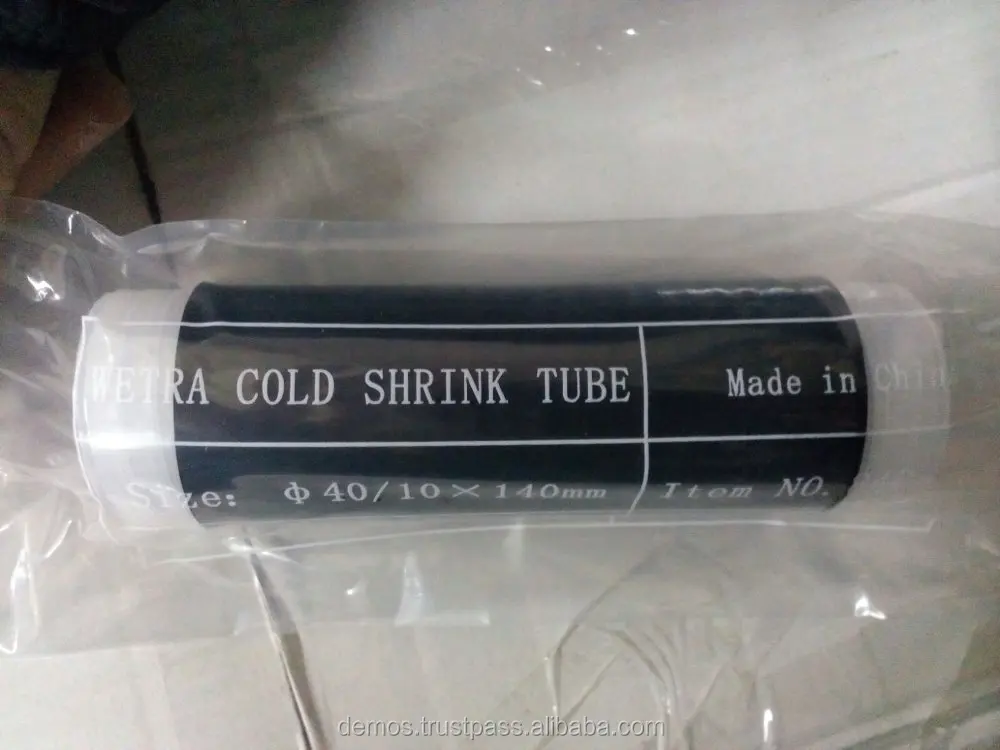

Packing Photos
