TRANSPARENT PNEUMATIC TRAINER / Mechatronics Lab

Product Overview

Description

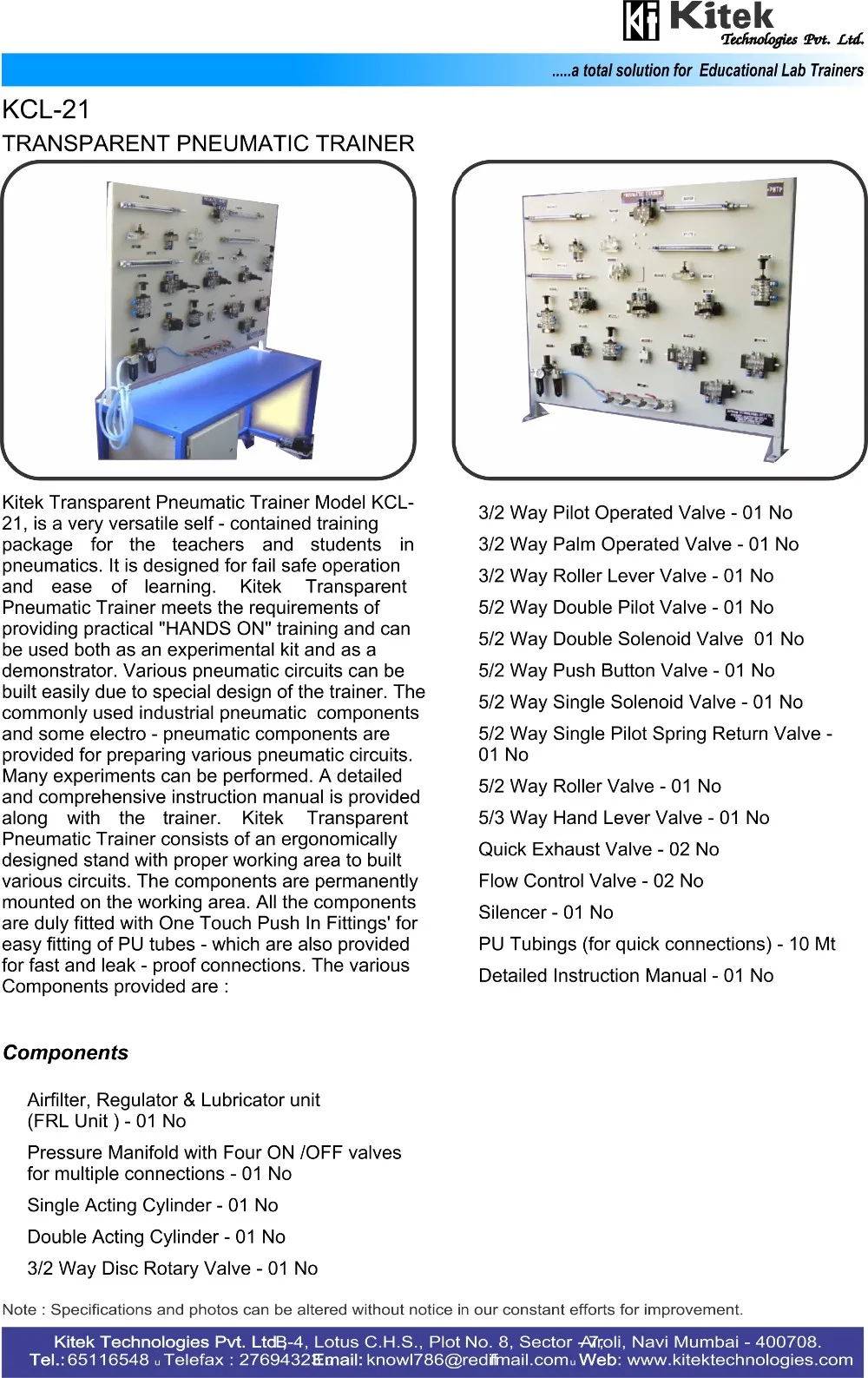

Kitek Transparent Pneumatic Trainer Model KCL-21, is a very versatile self - contained training package for the teachers and students in pneumatics. It is designed for fail safe operation and ease of learning. Kitek Transparent Pneumatic Trainer meets the requirements of providing practical "HANDS ON" training and can be used both as an experimental kit and as a demonstrator. Various pneumatic circuits can be built easily due to special design of the trainer. The commonly used industrial pneumatic  components and some electro - pneumatic components are provided for preparing various pneumatic circuits. Many experiments can be performed. A detailed and comprehensive instruction manual is provided along with the trainer. Kitek Transparent Pneumatic Trainer consists of an ergonomically designed stand with proper working area to built various circuits. The components are permanently mounted on the working area. All the components are duly fitted with One Touch Push In Fittings' for easy fitting of PU tubes - which are also provided for fast and leak - proof connections. User's Mnaula with experiments

The various Components provided are :

Components

·         Airfilter, Regulator & Lubricator unit  (FRL Unit ) - 01 No

·         Pressure Manifold with Four ON /OFF valves for multiple connections - 01 No

·         Single Acting Cylinder - 01 No

·         Double Acting Cylinder - 01 No

·         3/2 Way Disc Rotary Valve - 01 No

·         3/2 Way Pilot Operated Valve - 01 No

·         3/2 Way Palm Operated Valve - 01 No

·         3/2 Way Roller Lever Valve - 01 No

·         5/2 Way Double Pilot Valve - 01 No

·         5/2 Way Double Solenoid Valve  01 No

·         5/2 Way Push Button Valve - 01 No

·         5/2 Way Single Solenoid Valve - 01 No

·         5/2 Way Single Pilot Spring Return Valve -     01 No

·         5/2 Way Roller Valve - 01 No

·         5/3 Way Hand Lever Valve - 01 No

·         Quick Exhaust Valve - 02 No

·         Flow Control Valve  - 02 No

·         Silencer - 01 No

·         PU Tubings (for quick connections) - 10 Mt

 ·         Detailed Instruction Manual - 01 No
