KOREA BEST  RexVa's HEATING FILM SYSTEM :

Heating film for floors, walls and ceilings

 We, RexVa Co,.Ltd., are the leading and the oldest manufacturer of carbon heating film (infrared heating film) in South Korea. We are exporting our products to over 30 countries as a reliable supplier.

INFRARED CARBON HEATING FILM

RENEWABLE ENERGY :
Expensive heating systems with other types of heat producers like heat pumps can sometimes work economically but only the RexVa heating film system, combined with solar energy solutions can be operated at NO COST.


RexVa HEATING FILM IS THE FIRST CHOICE IN UNDERFLOOR HEATING :
Heating Film is the premiere solution for providing gentle and energy efficient radiant heat for your family or your place of business. RexVa’s Heating Film is a safe, comfortable, silent and a clean source of heat for your work or living environment.

LOW COSTS SOLUTION, QUICK INSTALLATION :

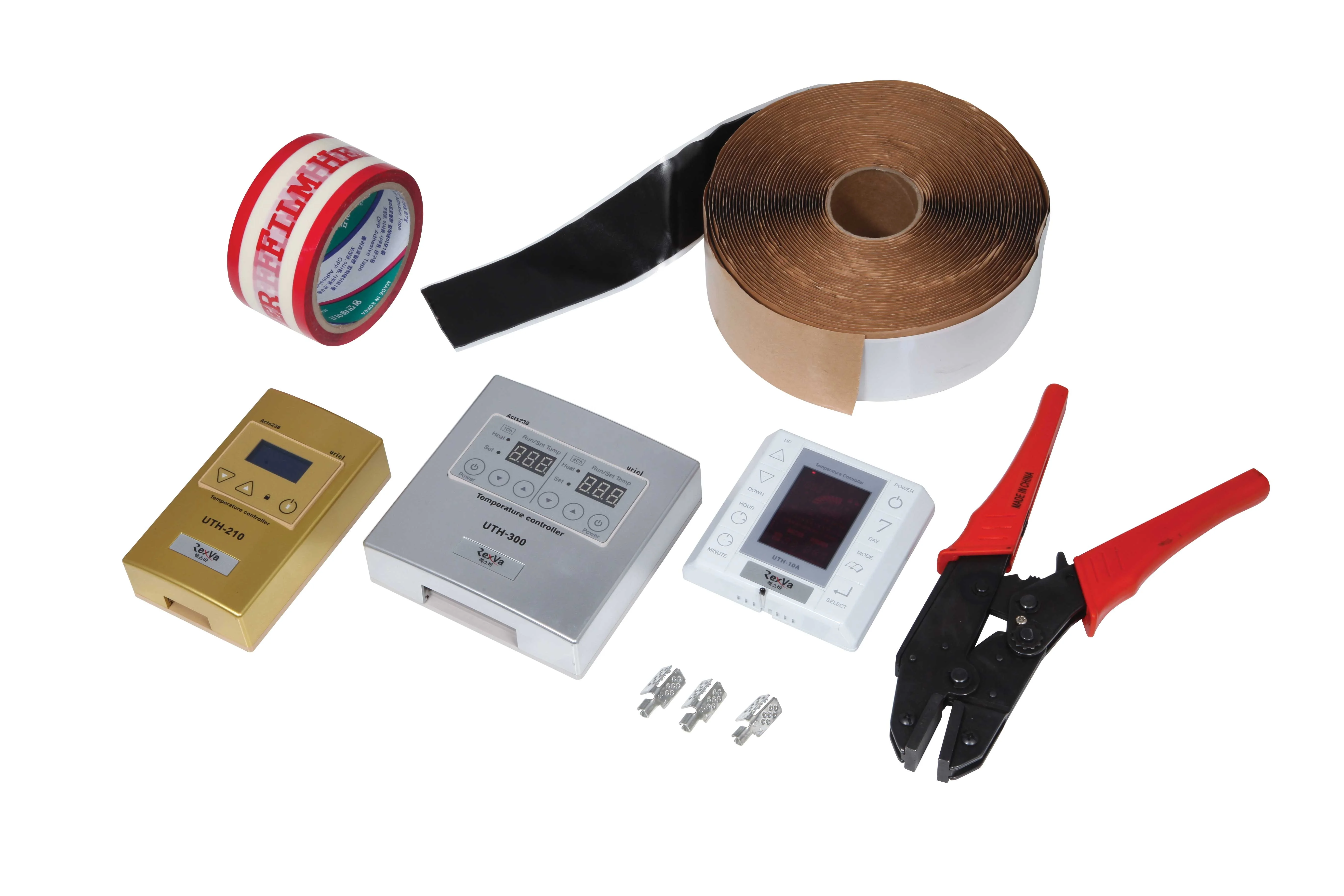

Initial cost of RexVa heating film systems is much lower than that of the traditional heating systems. Installation of the Heating Film system is so easy it can be done in one day. Heat output is flexible and easily controlled with a remote thermostat. Unlike most gas boiler or heat pump systems, efficiency loss will NOT occur in buildings with low energy demand.

MAINTENANCE-FREE OPERATION :
The RexVa heating films are made only of high quality components. The assemblies and the controlling thermostats have outstandingly long lifetime, so they do not require maintenance. With periodical inspection and ample spare part supply, the possibility of malfunction is non-existent.

PRODUCT LINE

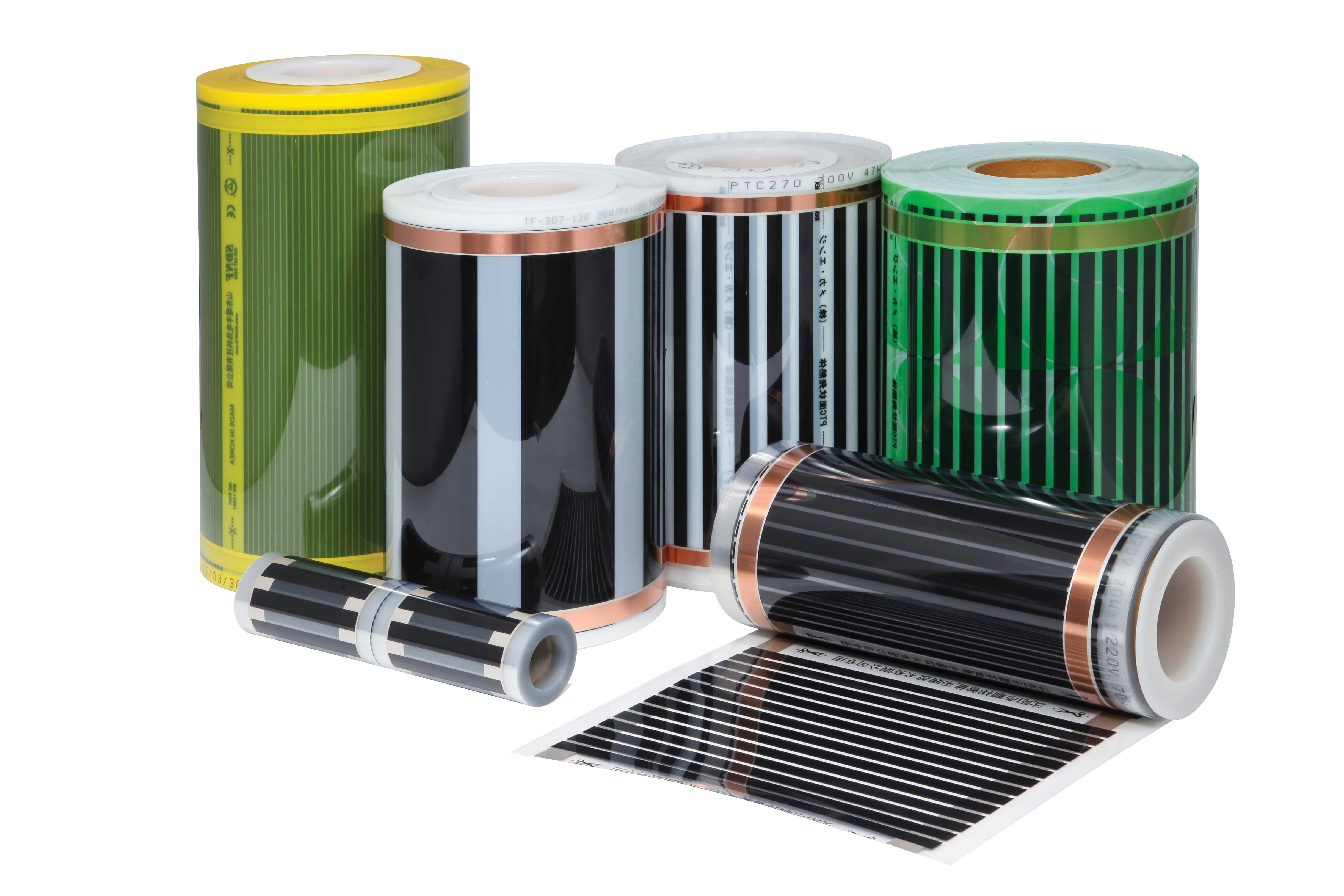

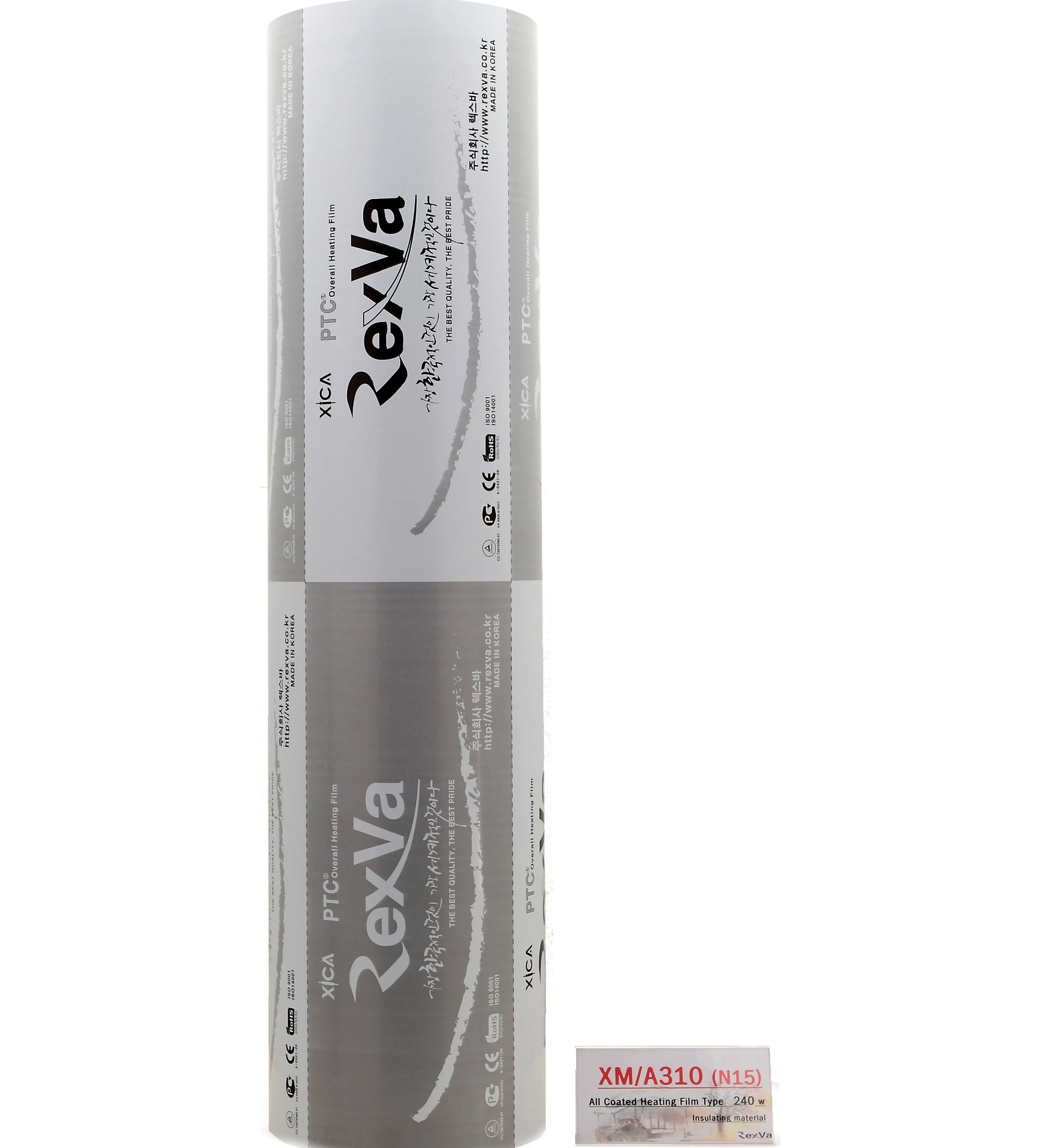

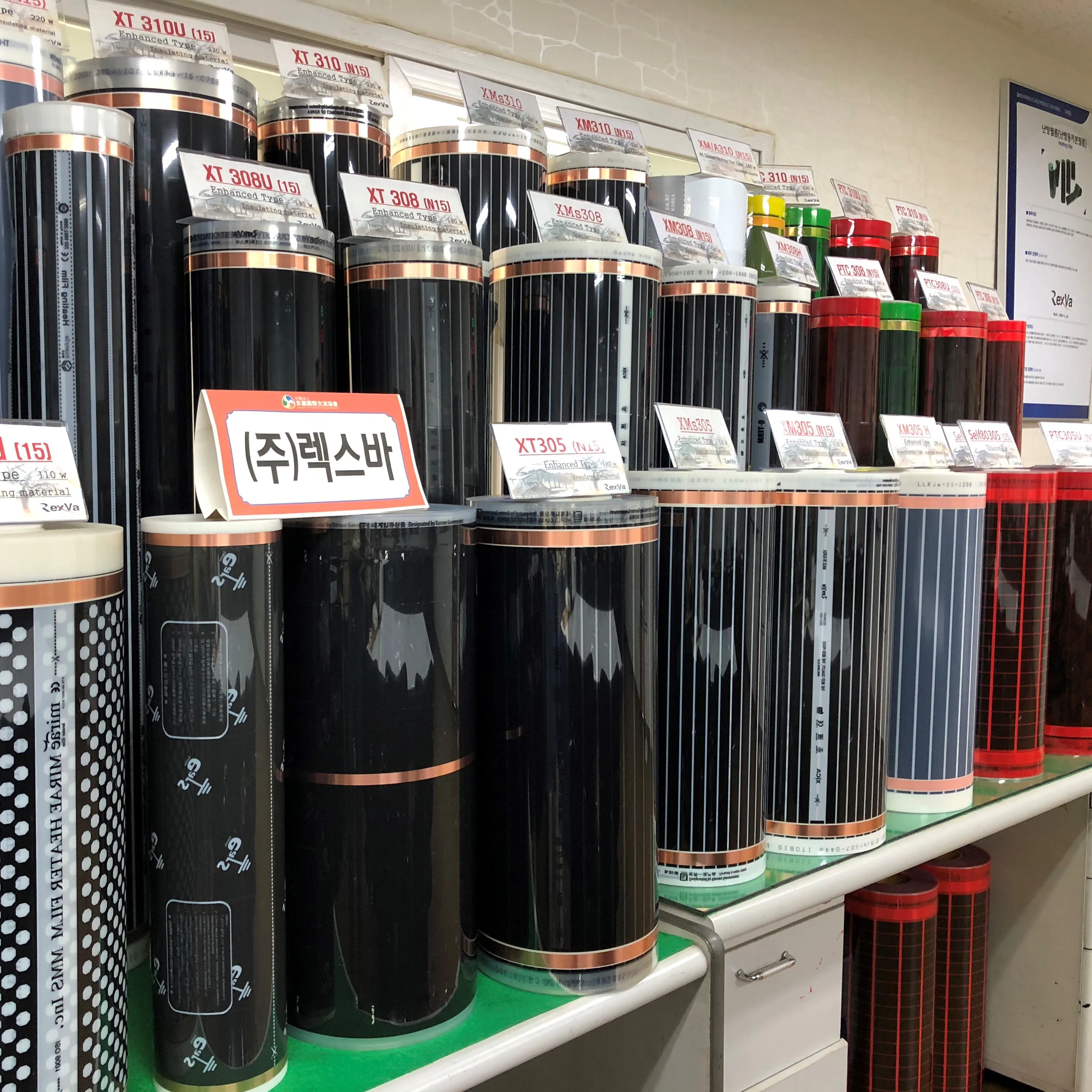

Mainly 4 types of product : XT line product, XM line product , XM Ultra and XT Ultra, PTC line product , XA line product .

Regular  heating film can reach 40~50 celcius and the sauna heating film can reach 60~65 celcius .

According to PET materials , we have milky PET heating film and transparent PET heating film ;

According to function , we have ordinary heating film , sauna heating film , PTC heating film .

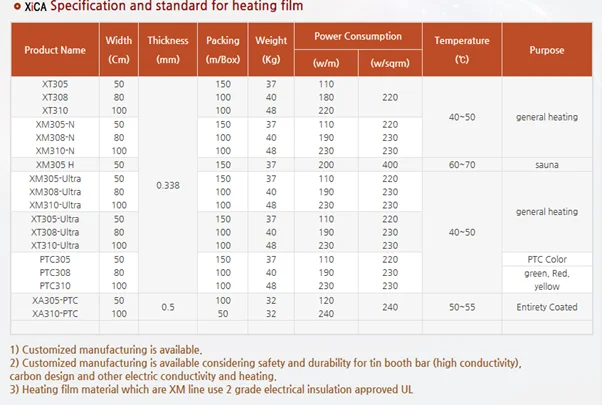

The price is also defferent according to defferent PET materials and function , please check their specification in attached file .

- XT line product have a transparent color and it is made from ordinary PET materials .This line price is most low.

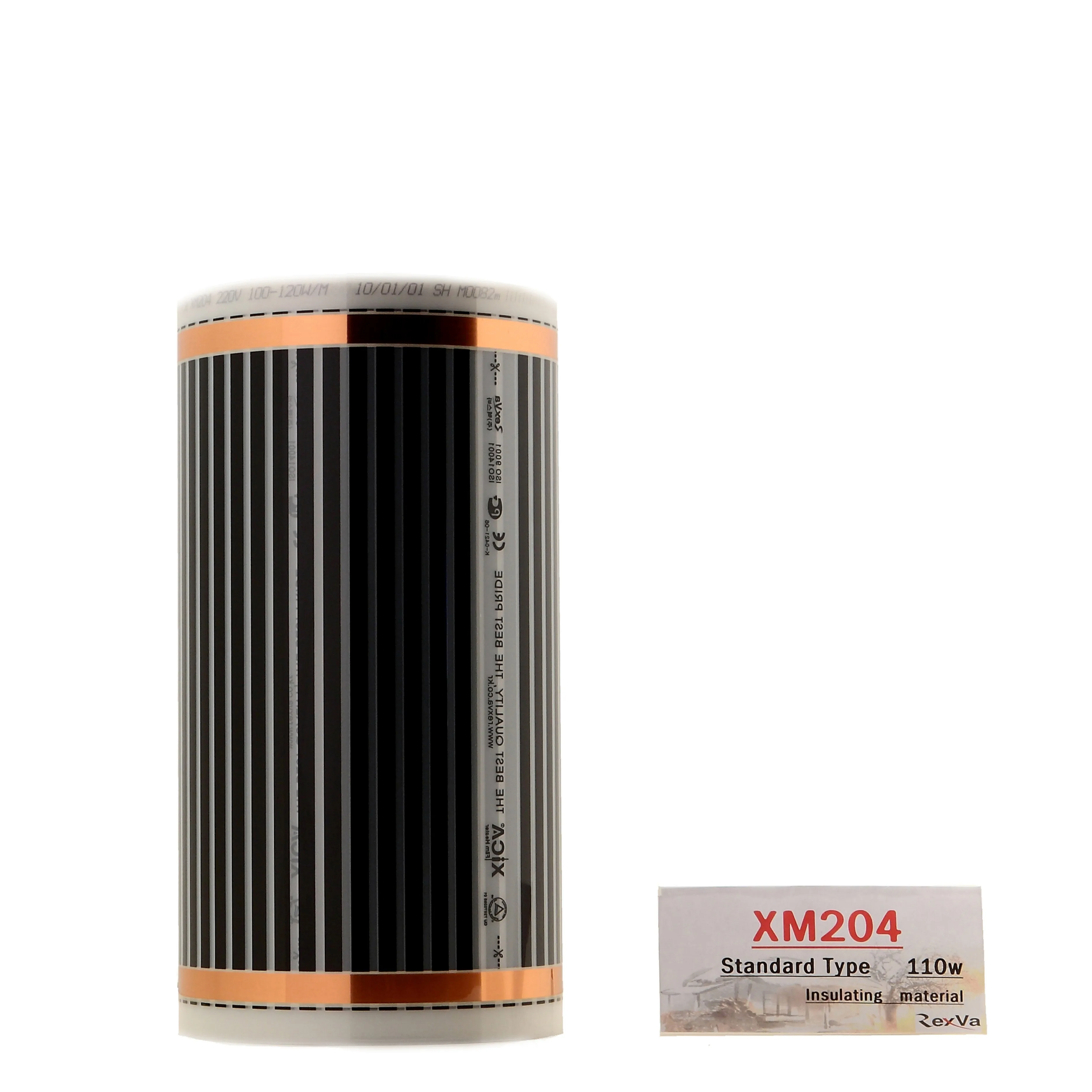

- XM line product have a milky color and it is made from a special PET materials which is 2 grade electrical insulation PET approved by UL . This PET has a good insulation performance .

- XM Ultra and XT Ultra are made on the basis of XM and XT line respectively , Their special design are made for reducing the likehood of local overheating , means that they reduce the likehood of overheating by mild heating . XM-Ultra product have a milky color and it is made from a special PET materials which is 2 grade electrical insulation PET approved by UL . This PET has a good insulation performance

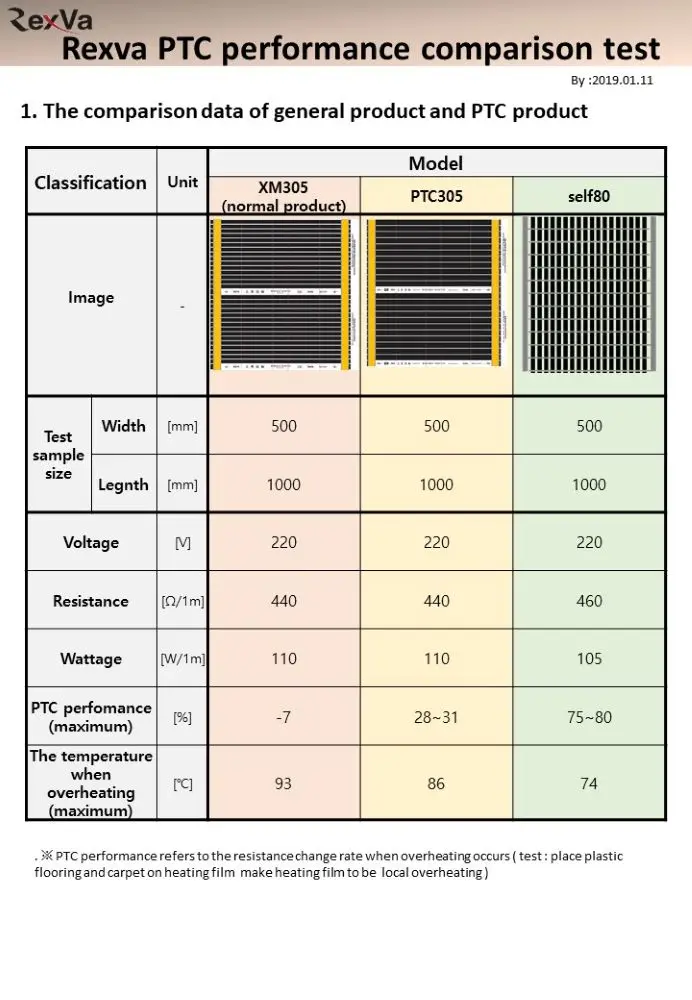

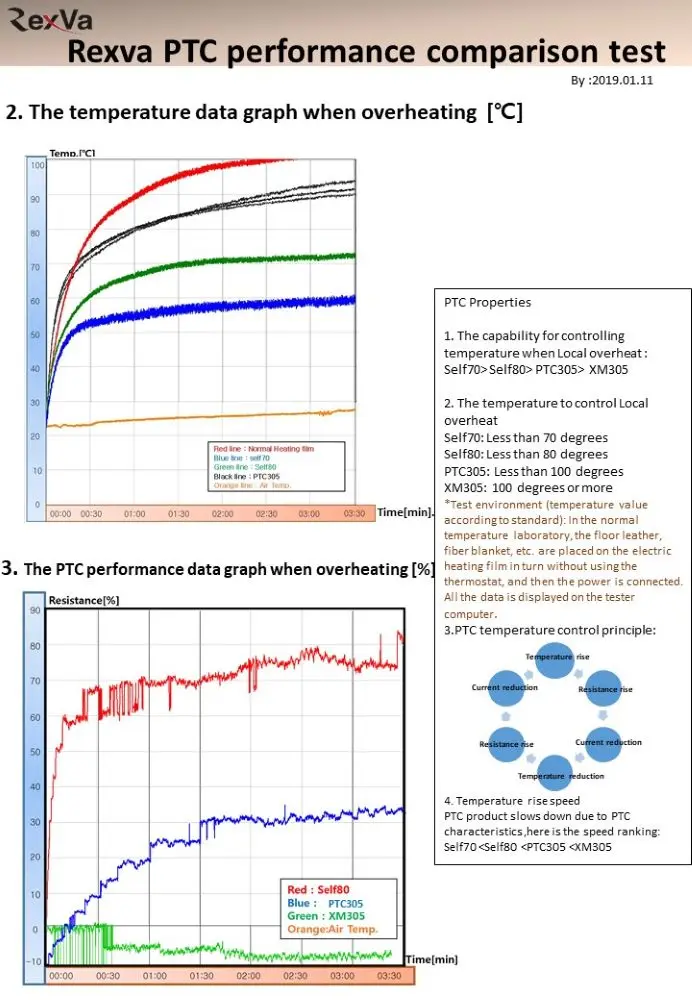

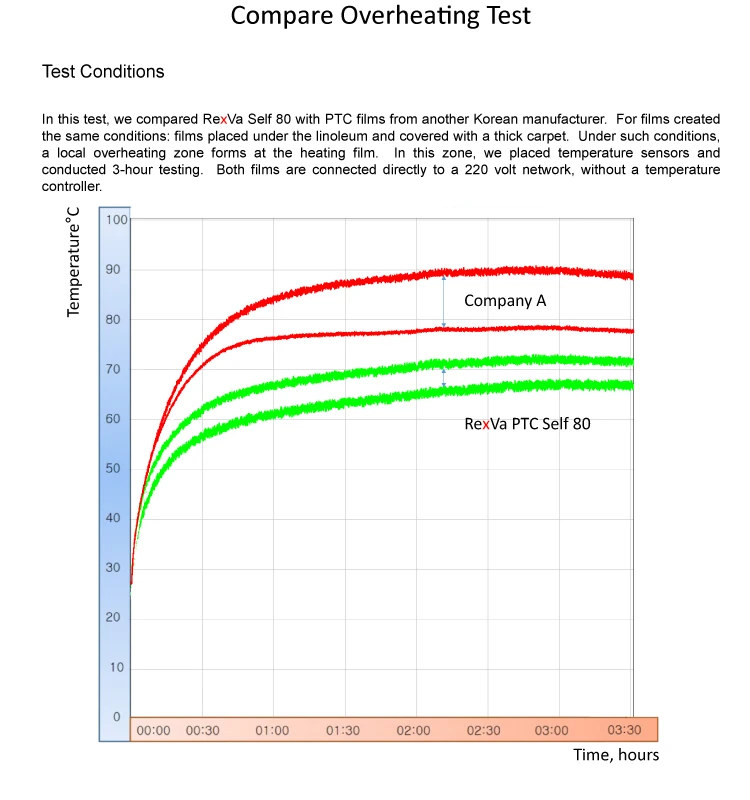

- PTC heating film have a transparent color and it can be regulated by itself , the purpose of PTC product is to reduce the probality of overheating occurrence .

- XA PTC line product is made on the basis of PTC product and it is made from a composite structure (made from several kind of PET ) , it is durable and has a good waterproof property than general product , and the price is the highest .

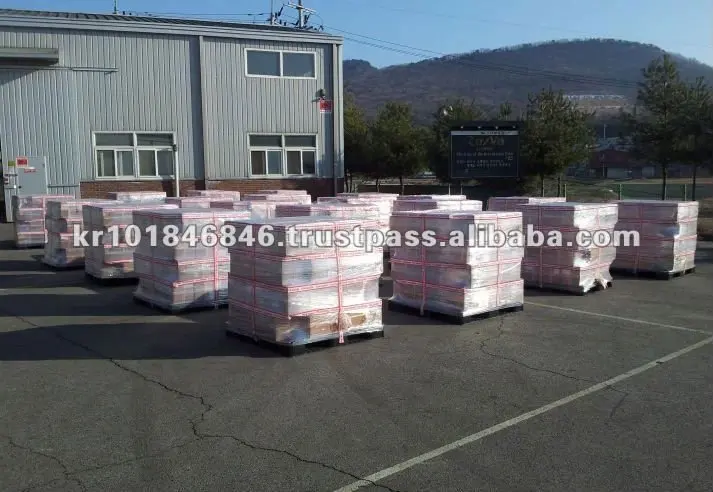

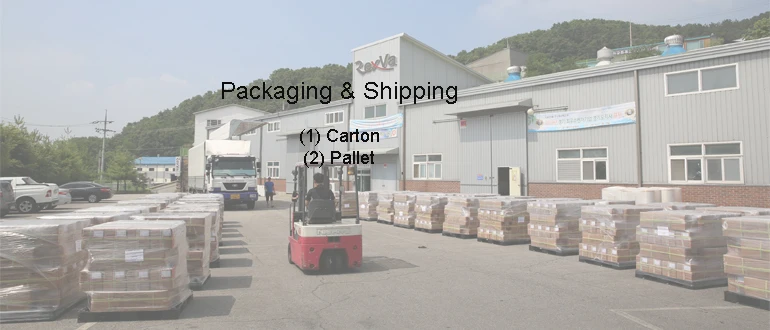

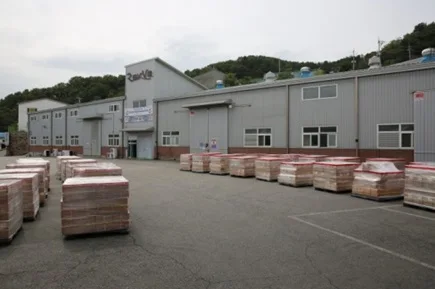

Packing

150 meter /carton / roll / box

100 meter / carton/ roll / box

Why is RexVA superior to other products?


1. Achieved many certificates which can provide advanced marketing to customers.
- UL, CU, CE, ISO, SASO, etc. Please check the certifications in our homepage : //www.rexva.co.kr/home_en/qua02_01.php

2. Achieved many test reports, guaranteed the product quality.
- LVD, EMC, REACH, RoHS, durability, product life, dust-proof wate-rproof, shock, far infrared ray, negative ion, etc. Please check the test reports in our homepage : //www.rexva.co.kr/home_en/qua03_01.php

3. Heating film no resistance change due to long-term use.
- Excellent technology with patent registered printing equipment
- During production, our air drying chamber can hold 70meters of heating film at the same time to drying of carbon and silver fully and removing the moisture in carbon , other manufacturer can only make the air drying chamber under 10 meters . Please check the production process information in our hompage : //www.rexva.co.kr/home_en/man01_06.php

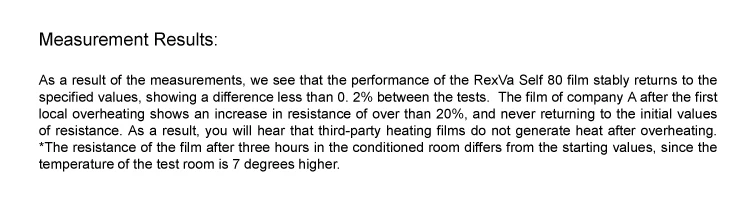

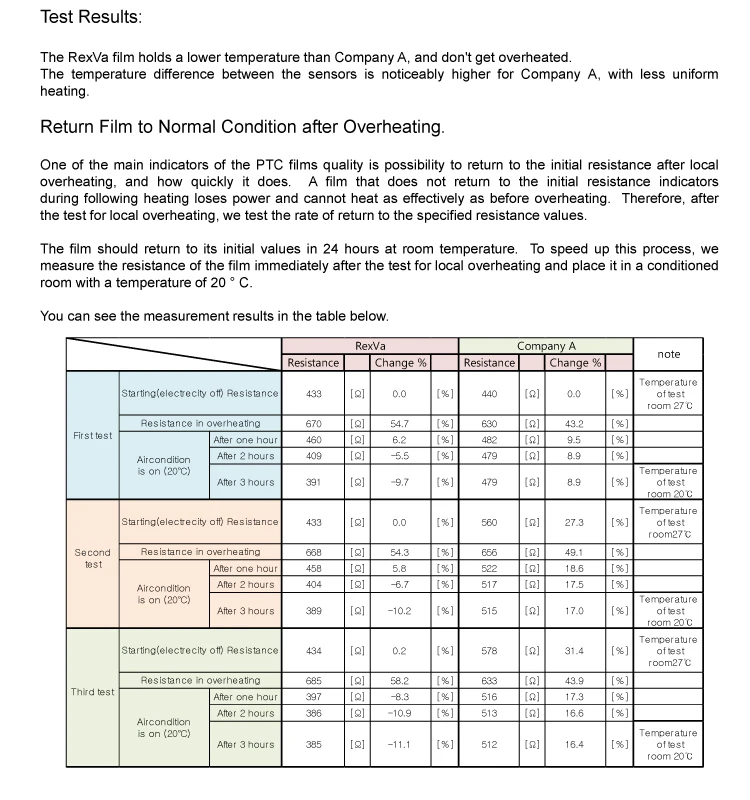

This is the reason Why heating film resistance does not change . Please refer to the life term test report in : //www.rexva.co.kr/home_en/qua03_01.php

4. Silver busbar on heating film resistance keep stable.
- Silver bar resistance keep stable in 0.3 ~ 0.4 Ω , in the other hand , other company’s silver bar resistance value are in 0.5~21.2 ohms. . Please check the silver resistance value in our homepage : //www.rexva.co.kr/home_en/man01_02.php

5. Provide the test report for each production when the product leaves the factory.
- Product Specifications
- Heat test result Please check our test instrument in homepage :

//www.rexva.co.kr/home_en/tec02_01.php

6. Conducting Tensile strength test for per production roll.
- Only the product rolls which can pass the Tensile Strength Test can be shipped.

7. The production capacity in the industry is the best.
- Keep the production capacity to be 3 times more than other companies in one month.
- Bulk orders, early delivery available

8. Independent reseach and development of PTC carbon paste to ensure the stability and safety of the product .
- Registered patent for PTC carbon paste
- Using self-developed carbon paste formula and unique PTC carbon paste recipe . Please check our PTC ink manufacturing information in

Homepage, //www.rexva.co.kr/home_en/tec01_01.php

9. Acquired UL electric safety certification for PTC products
- Acquired UL for U.S./Canadian electrical safety certification for PTC products for the first time in the heating film industry.

Please check the certifications in our homepage : //www.rexva.co.kr/home_en/qua02_01.php

10. Possible to Order special size products and mass production.

 - Possess production facilities to produce 100mm~500mm small-scale width products.

 - Produce 50mm~125mm thin PET products.

11. Possible to Order low volt products and mass production.

- Possess technology of development and mass production for DC products.

 - Possess technology of development and mass production for low voltage AC products (less than 100V).

12. Securing external credibility through continuous marketing investment.

- Continuing investment in testing and certification costs for product quality certification.

 - Continue to promote the company and product image by investment in narketing .

Please check the certifications in our homepage :

//www.rexva.co.kr/home_en/qua03_01.php
