Price:$16,200.00 - $16,500.00

Quantity:


Product Overview

Description



Products Description

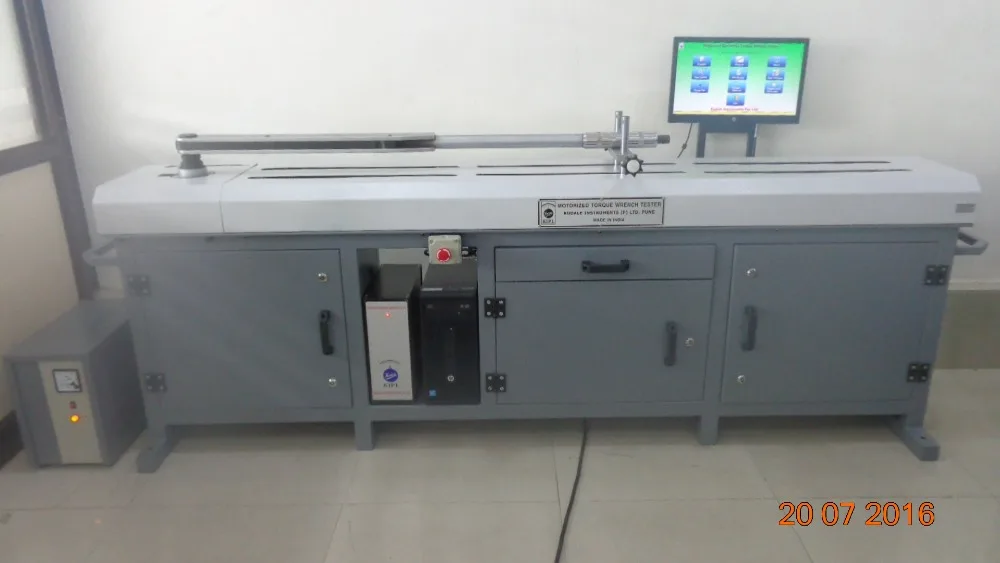

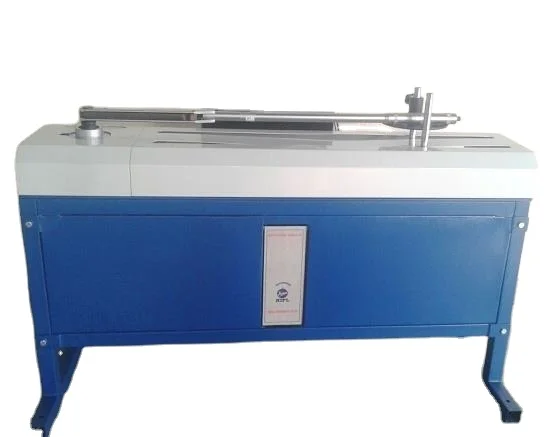

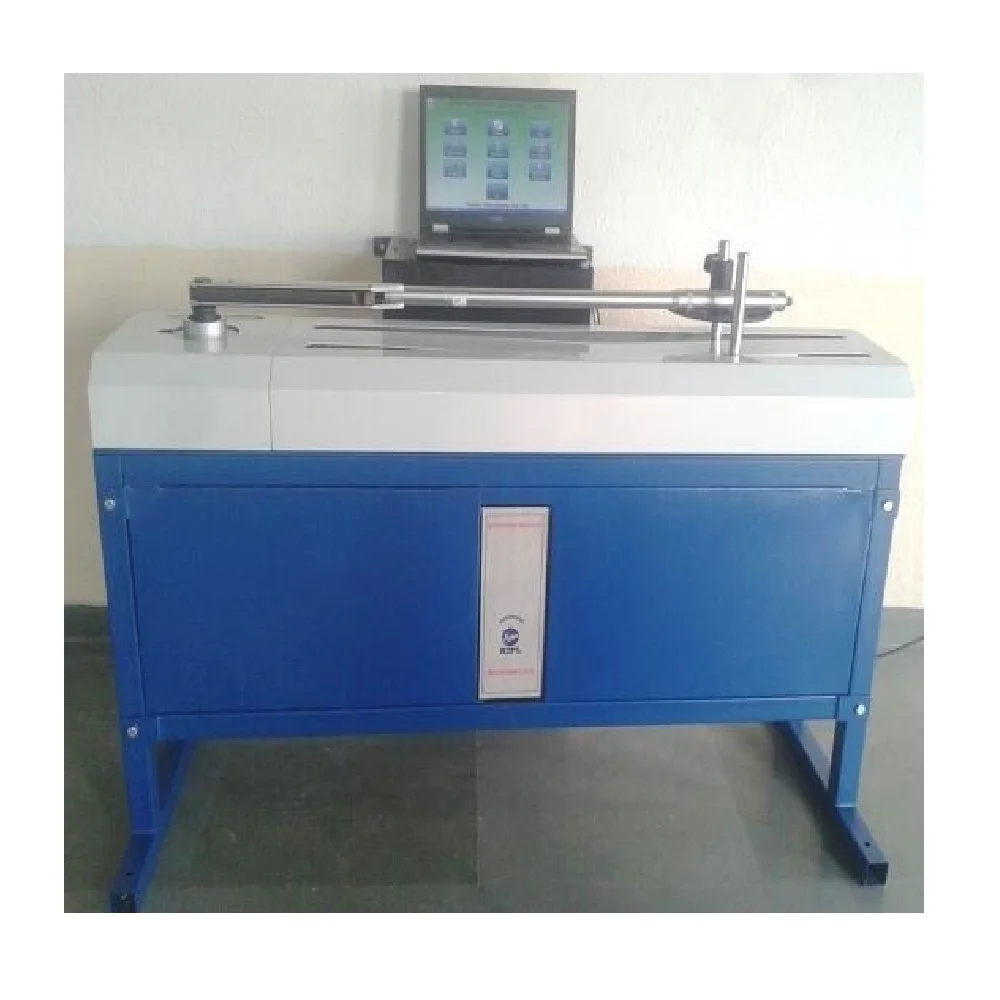

Motorized Electronic Torque Wrench Tester
Motorized Electronic Torque Wrench Tester (METWT) is useful periodic calibration of static type Torque wrenches. The basic unit is supplied with AC Servo Motor and  Drive set, one torque  transducer and computerized software with user or in line with ISO 6789 program options. The design of Precision Gear box provides easy and smooth operational convenience & accurate calibration of wrenches under test.




Capacity
Two different models.
1) 0- 1000 Nm
2) 0- 2000 Nm
Accuracy
+/- 1% of reading.
Range
Torque transducers can be selected as per below range.
1. For 1000 Nm Cap. Model: 100, 300, 1000 Nm.
2. For 2000 Nm Cap. Model: 1000 and 2000 Nm.
Resolution
100 Nm Torque sensor ----- 0.01 Nm
300 Nm Torque sensor ----- 0.1 Nm
1000 Nm Torque sensor ----- 0.1 Nm
2000 Nm Torque sensor ----- 0.1 Nm.
Gear Box ratio
1245:1 self-locking.
Features
1.  Computerized Software with User / most of ISO 6789 Program options.
2.  Suitable for Indicating Torque Tools Type I and Setting Torque Tools Type-II.
3.  Data save, recall facility, Search facility, Compatible to Win 7 &8 OS.
4.  Horizontal Model with fabricated Table.
5.  Motorized & Bi-directional operations (Clock wise, counter clockwise)
6.  AC Servo motor & Drive, Rated output 0.75Kw, Frequency 200 Hz, RPM 3000.
Software Features
1. Various Type of Torque Wrench data can be added in program mode of software as                     follows: One of the Test Option - In line with ISO 6789 or User, can be selected. (Facility               available in option as per ISO-6789, from 80% to the final target Torque value, the load shall
     be applied slowly & uniformly during the period of 0.5 to 4 Sec).
2. Select Type I- Indicating torque tool or Type II- Setting torque tool.
3. Select Wrench Class- A, B, C, D, E, F, G as per type of tool.
4. Select Unit –Nm, Kgm, Lbft, Lbin, Ncm, Kgcm, Ozin, as per scale unit on tool.
5. Select Transducer Capacity -1000 Nm /2000 Nm/ 300 Nm/ 100 Nm, any one.
6. Select Torque wrench capacity as per test (Max. cap. of tool).
7. Start Speed (50 to 200); Test Speed (10 to 50).
Main Features
1) Simple structure in linear type, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and
     operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatized and intellectualized way, no pollution.
5) Apply a linker to connect with the air conveyor, which can directly in line with filling machine.
Overall dimensions
1) 0- 1000 Nm: 1500 X 660 X 1000 mm approx.
2) 0-2000 Nm


Product packaging










Certifications






Manufacturing Technique






Company Profile



Kudale Instruments (P) Ltd. –

KIPL is an ISO 9001-2015 certified, growth oriented, technology-driven organization, engaged in manufacturing Precision Measuring Instruments and Testing Equipments, since 1974. The products manufactured by us are used for Force, Torque and Dimensional Measurement Applications and Calibration solutions. We offer high quality products at reasonable price, which gives value for money to our customers.





With the experience of over 40 years and expertise in Dimensional, Force and Torque Metrology, the Company has become a Pioneer in design and manufacture of the range of products in this category. Since inception, our products are well received by Automotive, Machine tools, Auto Components and other Engineering industries.


Why Choose Us


Our products are also popularly used in Quality Assurance and R&D Departments in Government establishments, Railways, Technical institutes etc. The unit is recognized by the Department of Science and Industrial Research, Govt. of India, New Delhi as the R & D Unit.. and Industrial Research, Govt. of India, New Delhi as the R & D Unit.


FAQ


1. Who are we?
We are based in MAHARASHTRA, India, start from 1989, sell to Domestic Market (40.00%), Eastern Asia (20.00%),
Southeast Asia (10.00%), Northern Europe (7.00%), North America (5.00%), South America (5.00%), Central America
(3.00%), Mid East (2.00%), South Asia (2.00%), Africa (2.00%), Oceania (1.00%), Western Europe (1.00%), Southern
Europe (1.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3. What can you buy from us?
Gear Roll Tester, Bevel Gear Tester, Dial Calibration Tester, Check Master (The Inspection Gauging Unit),Scale And Tape
Calibration Unit

4. Why should you buy from us not from other suppliers?
We are expert in metrology instruments used for force measurement, Torque Measurement, Dimensional Instruments
and calibration solutions. We are 40 years old company and employ about 50 staff members. We are ISO 9001 - 2015
Certified Company.

5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency: USD;
Accepted Payment Type: T/T,L/C;
Language Spoken: English, Hindi
