Japan made reusable Proseven adhesive pads for science museum exhibits

Product Overview

Description

Japan made reusable Proseven adhesive pads for science museum exhibits



- Outstanding flexibility and adhesion withstand vibration

- Will not damage the appearance of items

- Can be repeatedly washed and reused



Made from 5mm thick polyurethane gel.
The image shows a dashboard outfitted with both sides of the protective film removed,

the mat installed, and a pen placed on it.
Vibration when the vehicle is in motion is cut and the pen does not slip.



The mat has passed certifications by public institution for safety standards.
These include RoHS, US inflammability tests, UL94, V-2, mold-resistance tests, et cetera.

For instance, the mat can be attached to a vase or other vessel to prevent it from

falling when children or pets bump into the vase.



Model number	mat size (mm)	quantity	earthquake resistance (kg)	service life (year)
P-N30C	30 x 30	4	40	5 to 7
P-N40C	40 x 40	4	64	5 to 7
P-N50C	50 x 50	4	100	5 to7
P-N2016C	20 x 20	16	64	5 to 7
P-N1001C	100 x 100	1	100	5 to 7
package size (mm)	H (mm)	W (mm)	D (mm)	Weight (g)
P-N30C	183	121	6	30
P-N40C	183	121	6	45
P-N50C	183	121	6	65
P-N2016C	183	121	6	45
P-N1001C	183	121	6	67

Offered in five types based on the mass of the item in question.

A set supports seismic load from 40 to 100kg.
The P-N1001C is a free size that can be cut to shape with scissors.



For packs of 10 or 100 units:
Twice-packed in reinforced cardboard



All steps, from production through crating, are handled in-house.



1. Remove any dust or dirt from the surface of the object and place of installation.
    A dirty surface may cause decreased adhesion.
2. Remove one side of the protective film and attach to a flat surface.
3. Once the film has been smoothly adhered, remove the other side and attach the item.
4. After installation, do not touch the product for some time until it settles.

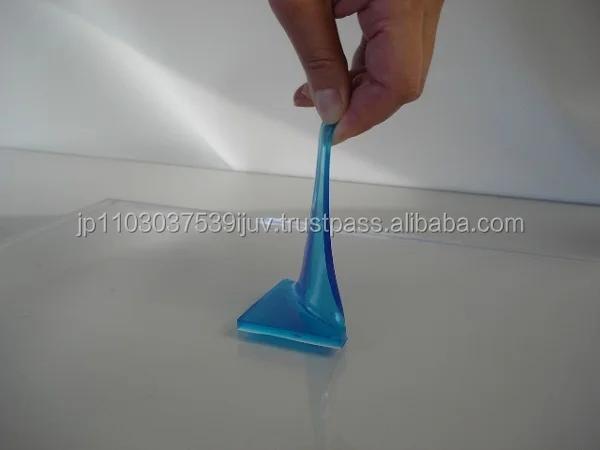

Note that the  adhesive is very strong, so gently pull off from the edge inward.
Attempting to rapidly remove the product can cause breakage of the installed surface.

* If the backing fails to come off after gentle tugging, dip a hard plastic card

(e.g., an old credit card) in water and insert it between the mat and the object to remove more smoothly.



Compatibility chart
materials	adhesion
PP	Bad
PVC	Excellent
ABS	Excellent
PMMA	Excellent
PC	Excellent
Al	Good
SUS	Good
PE	Bad to Not recommended
Silicon resin	Not recommended
Fluorine treatment	Not recommended
Water repellent treatment, Anti-stain treatment	Not recommended

Compatibility: if cellophane tape can be adhered to the target object, this product will adhere.



Used on a computer

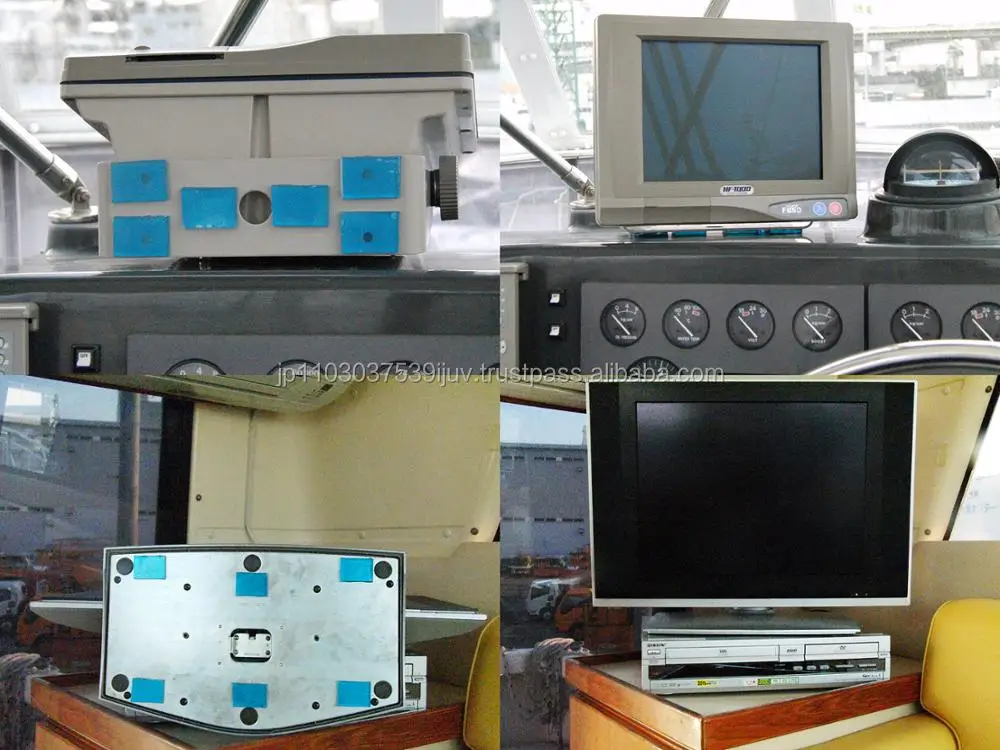

Used on a vehicle



PROSEVEN CO., LTD. has delivered safety and security to our customers since its

establishment in 2000.
Since we are responsible for the manufacturing, packaging, and delivery of our earthquake

resistant mats, we can even respond to individual requests and create original packages to

accommodate.
Business Description: Development, production, and sales of antivibration and earthquake

resistance materials
Main Distributers: Electronic retail stores, home improvement and construction retail stores,

DIY goods stores, hypermarkets, OEM
Export Experience: China, Korea



Proseven: Created from the lessons of the Great Hanshin-Awaji Earthquake
Proseven earthquake resistant mats have proven to be effective seismic measure in many

fields, protecting not only human life but also computer systems, furniture, works of art,

electronic products, etc.
All of our funds were poured into the development of the original Proseven earthquake

resistant mat, and it will continue to be further improved.

With your support, we strive to attain the position as a key material and further contribute to

the safety of people all over the world.
