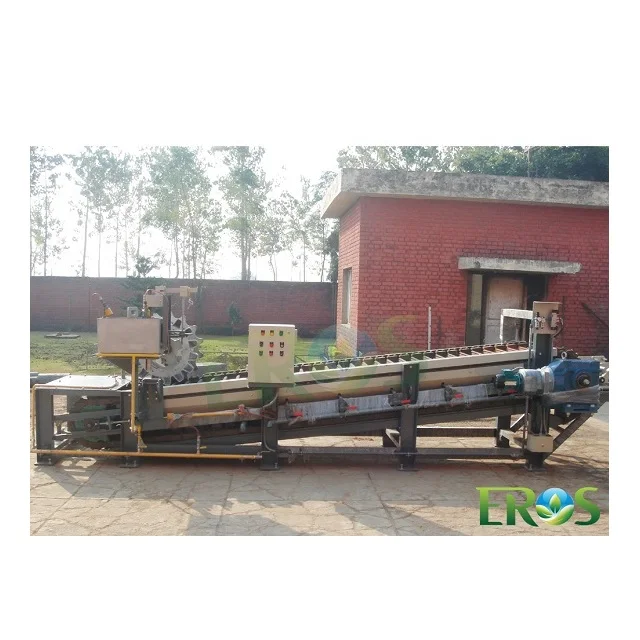

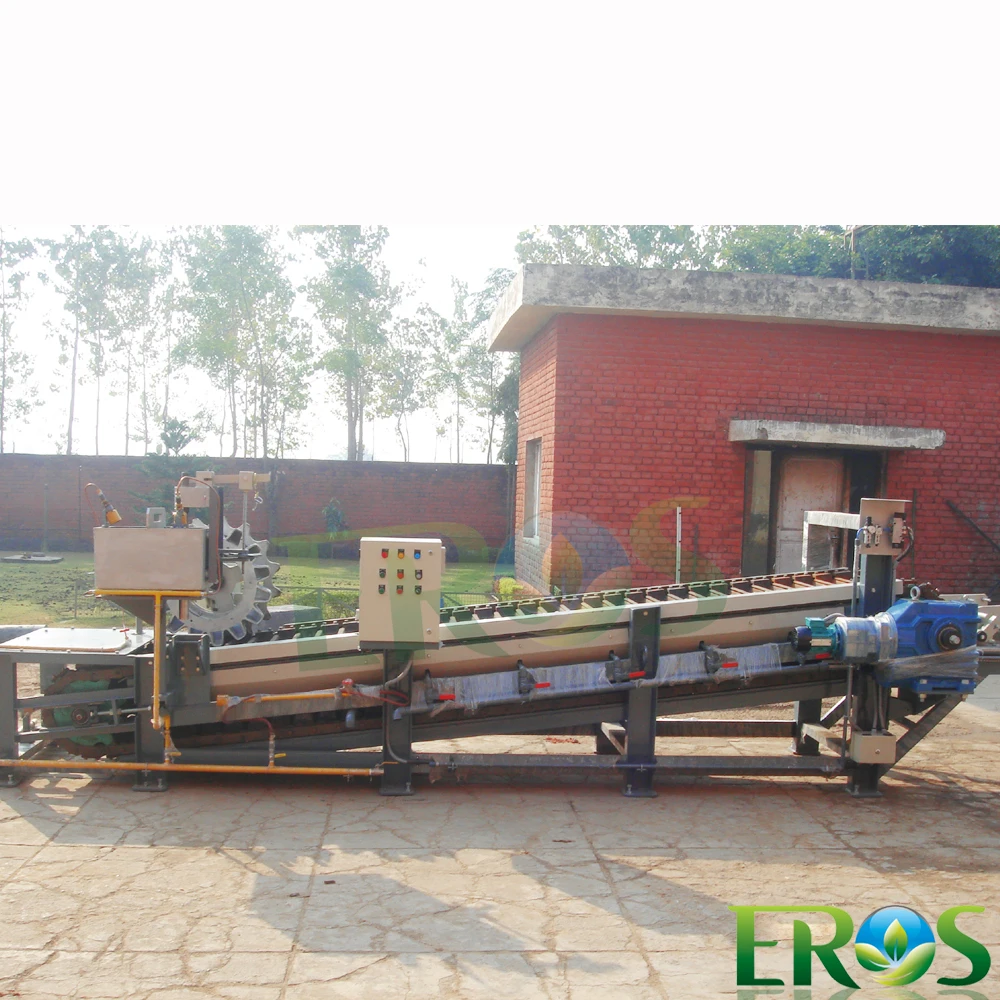

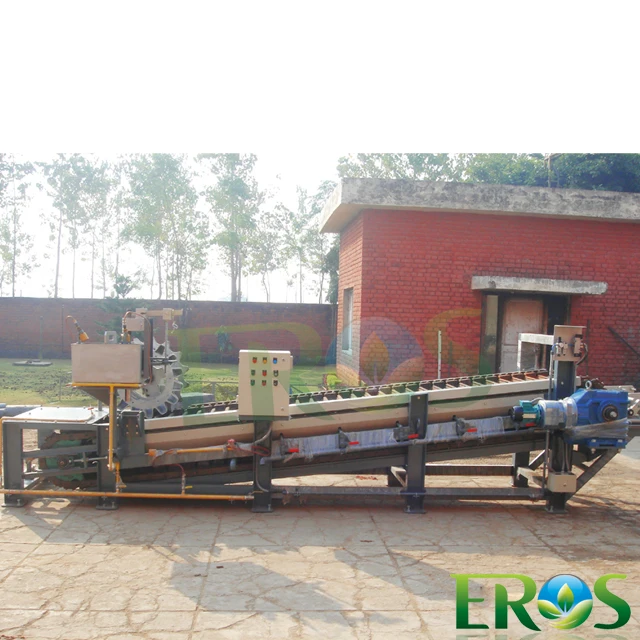

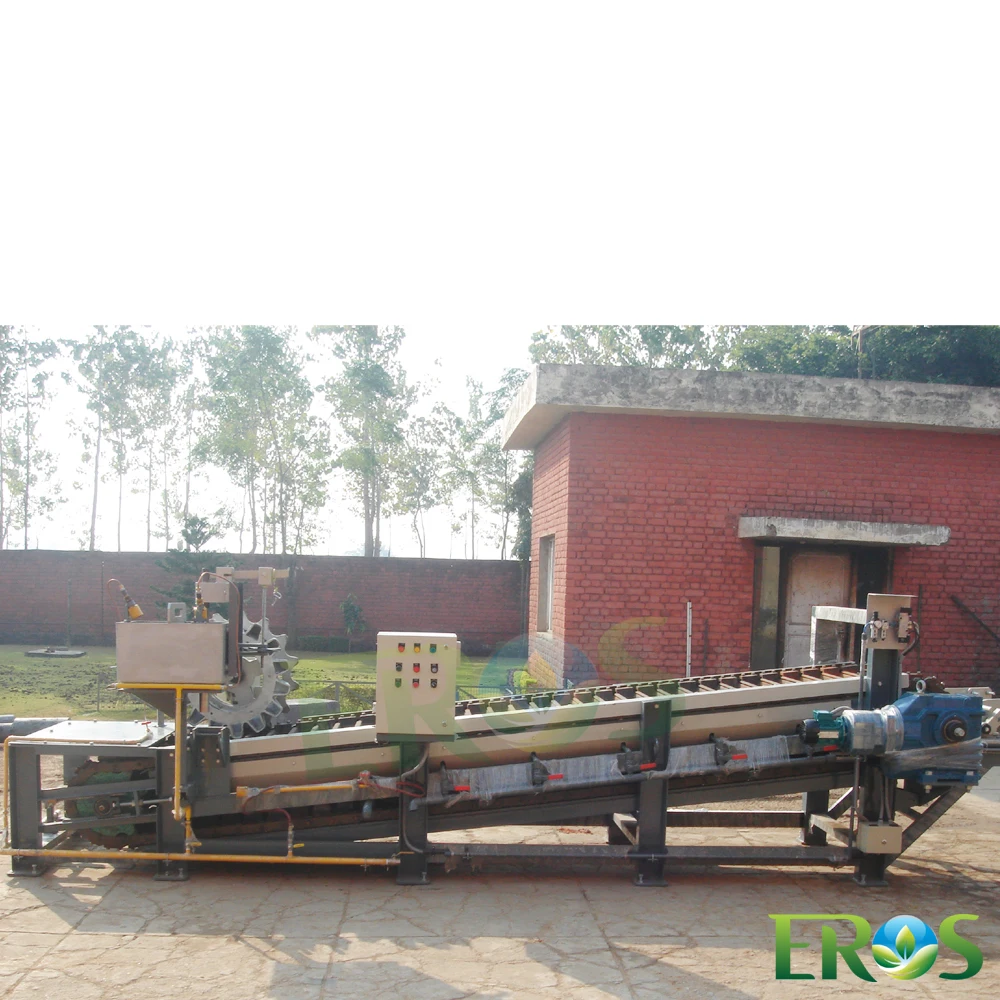

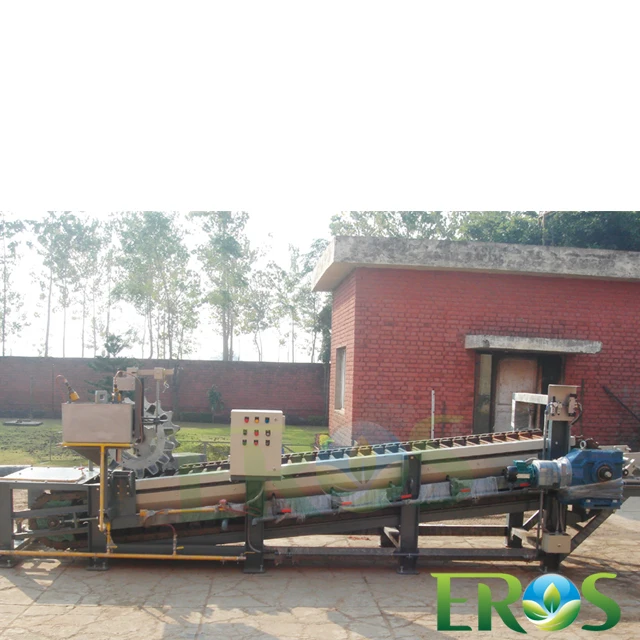

Ingot Casting Machines for Casting Lead Ingots From Lead Metal

Ingot Casting Machine is basically a material handling device and as the name suggests, makes the process of making ingots mechanical and automated. An Ingot Casting Machine adds value to operations by saving time, labour and promoting standardization. It is used with Re-melting Pots, with or without Lead Pumps, to obtain standard Lead Ingots within short span of time, neatly and without direct human intervention. Needless to say that an Ingot Casting Machine is not only required but a must-to-have device for any progressive unit.

Specifications:-
Material to be cast-Aluminum and its alloy

Casting Rate-4 tons per hour

Ingot weight-10 kg +/- 5% each

Mold width-152 mm

Centre to centre mold distance-160 mm

Number of molds-150

Weight of each mold-40 kg approx

Mold lubrication-Shall be provided

Mold cooling-9 rows each in outer and inner side of the mold. Each nozzle has individual valve

Mold and distributor- Pre heating arrangement shall be provided

Knock out hammer- Two no knock out hammer shall be provided

Speed of Conveyor-3 RPM max/ 1 RPM min

Drive-7.5 HP DC motor

Mold attachment-By bolting in to conveyor chain

Length of the machine-12 meter approx

Width of the machine- 1.5 meter approx

Inclination-13 degree

Height of the machine at pouring-1.2 meter

Gear box-One no worm and wheel type gear box and one no inline helical gear box

Chain- Heavy duty industrial chain

Mold-Heat resistant CI
