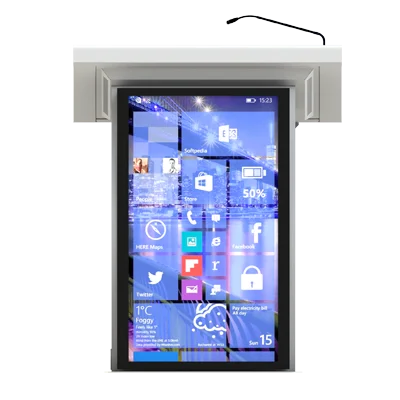

The DL24B is designed to meet the basic requirements in a conference room. It is very easy to connect your projector and sound system to the DL24B. You can directly start to use the DL24B even if you do not have any Project, sound system and network connection, as it is also designed to be used as an stand alone product.
Features
♦ 22” Multi touch Speaker Screen
♦ 43" SamsungFront Screen with built in Signage Media Player
♦ 18" Shure microphones with Shock Mount ♦ 3,5" Digital Touch Timer&Clock
♦ Esthetical design ♦ Metal body ♦ Multiple color options ♦ Built in high performance PC.
Specification
Main Specifications
Speaker Screen
22" Multi touch capacitive
Front Screen
43" with built-in signage media player
Built-in PC for Speaker Screen
intel i3 4GB Ram, 120 GB SSD, Win 10 Embedded ioT
Microphone
1 pcs 18" Gooseneck Condenser Microphone
Reseller Price
2.950 USD/unit EXW Istanbul
Detailed Specifications
Front Panel
43"
Screen Specifications
Resolution
1920x1080 FHD
Brightness
500 cd/m2
Aspect ratio
16:9
Panel Type
IPS
Front Panel Player
Built-in Digital Signage Media Player
Front Panel Content Management Software
Available
Lecturer Panel
22"
Screen Specifications
Resolution
1920x1080 FHD
Brightness
250 cd/m2
Panel Type
IPS
Aspect ratio
16:9
Touch Technology
Capacitive
Touch Points
10 points
Lecturer Panel PC Specifications
CPU
4th Generation Intel Core i3
RAM
4 GB DDR4
HDD
120 GB SSD
Operating System
Windows Embedded 10 IoT
Microphone
Length
18"
No of microphone
1 pcs
Output Connector
3-way XLR (Male)
Microphone Type
Cardioid
Frequency Response
50 -18 kHz
Sensitivity (at 1,000Hz)
-60dB ± 3dB
Impedance
220Ω
Power ON indicator
LED
Power requirement
Phantom Power (48V)
Timer & Chronometer
Screen size
3,5"
Clock
Available
Timer
Available
Stopwatch
Available
Touch
Single touch

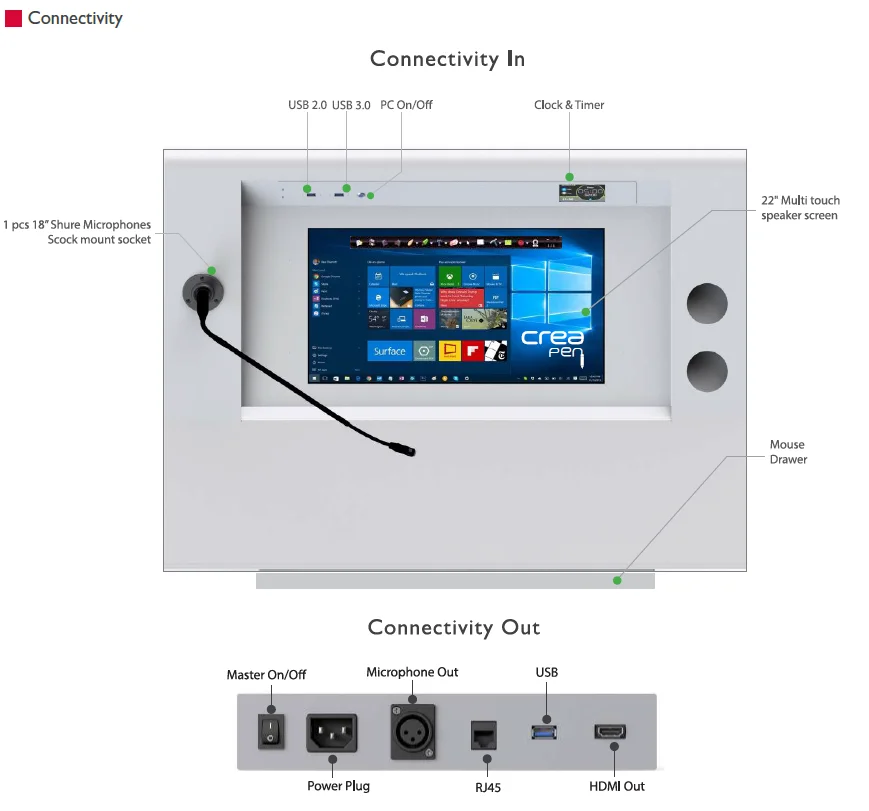

Inputs (on Speaker Panel)
USB
USB 2.0 and USB 3.0 (for internal PC)
Outputs (Bottom of Podium)
HDMI
Available
Ethernet
Available
XLR for microphone
Available
USB
USB 2.0 (for internal PC)
Power
Power Input
230V 50Hz
Power Consumption
450W (max)
Peripherals &other features
Color
White
Packing
Wooden box export packing
Mechanical Specs
Outline Dimension (mm)
Set: 742 x 950 x 1159
Packing dimensions: 880 x 1090 x 1390 mm
Weight (kg)
Product weight: 84 kg
Gross weight: 139 kg
Optional features
Front screen PC
Flight case
