Product Overview
Description

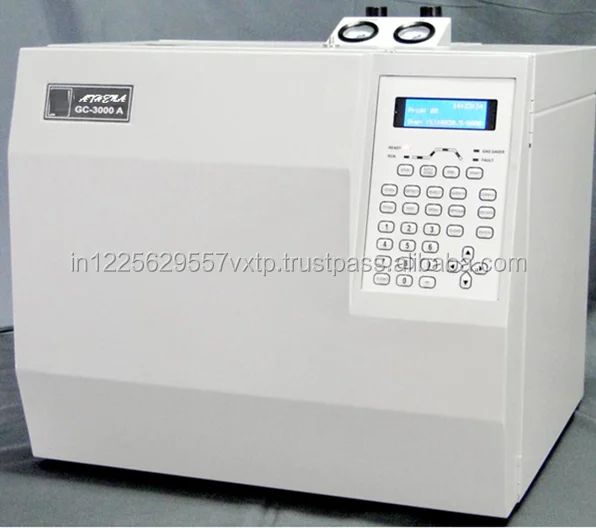

Athena Gas Chromatograph Model Athena CL GC 3000A with single Flame Ionization Detector, with one packed and one split / split-less injection port.
Electronic pressure controller (EPC) provides excellent performance with capillary columns.
3 Independent Heated Zones up to 400°C for individual control of Injector, Detector and Oven
Higher sensitivity flame ionization detector requires no make up gas due to unique zero dead volume design.
32 Keys for setting of the parameters & eight status L.E.D indications including oven ramp status.
PC control communication with RS 232
Optional attachments , Head space sampler & auto liquid sampler with CFR compliant chromatography integrator.
Technical Specification:
Gas Chromatograph Model Athena CL GC 3000A with single Flame Ionization Detector, with one packed and one Split / Split-less injection port.
Column Oven :
Size : 290 mm (H) x 280mm (W) x 160mm (D)
Volume : 13.8 ltrs
Temperature : 5°C above the ambient temp to 500°C
Ramp Rate : 0.1°C to 50 °C per minute
No of Ramps : 10
Cooling Rate : 300°C to 50°C within approx. 10 minute at 25°C room temperature
Temperature Gradient : 2°C max (on 200mm die circumference, 40 mm from the sensor)
Temperature Accuracy : ±1% of set value from 50°C to 500°C
Heated Zones : 3 independent Heated Zones upto 400°C for individual control of Injectors, Detectors , Oven..
PNEUMATICS
Electronic Pressure Controller (EPC) provides excellent performance with capillary columns.
Injector : Pressure range 0 to 450 kpa, Constant pressure or constant flow settable
Pressure program : provided
Correction Factor : Maintains the constant flo or average linear velocity during oven heating
Injection System :
- One Split / Split-less (capillary column) injector and one packed injection port.
- Temperature range settable upto 400°C in the step of 1°C
Detector :
- Higher sensitivity flames ionization detector requires no make up gas due to unique zero dead volume design
- Temperature range settable upto 400°C in the step of 1°C
- Dynamic range 10
- Sensitivity equivalent to 3pg C/sec of toluene / nonane
- Polarization : -240 V DC
Display : 80 Characters ( 20 x 4 lines ) LCD
Key Board
- 32 keys for setting of the parameters & eight status L.E.D indications including oven ramp status
- PC control communication with one RS 232
- 4 external event control relay output
- 2 Logic inputs and 2 logic outputs
Power Requirement : Approximately 2800 VA max
Size : 515 (W) x 450 (H) x 485 (D) mm Weight Approx 37 kgs
