Annealing Hardening Tempering Furnace Mesh Belt Conveyor Furnace With Electric Fuel in Expert Quality and Advance Technology

Share on (50032342045):


Price:$17,500.00

Quantity:


Product Overview

Description



Product Description

Mesh Belt Conveyor

Heat Treatment Furnace, Carburizing Carbonitriding Hardening Heat Treament

SPECIFICATION

Suitable for Heat Treatment of Steel.
Maximum Temperature of Furnace upto 1000 Deg C.
Stainless Steel Conveyor Mesh Belt.
Aneeling, Hardening, Tempering, Stress Reliving.

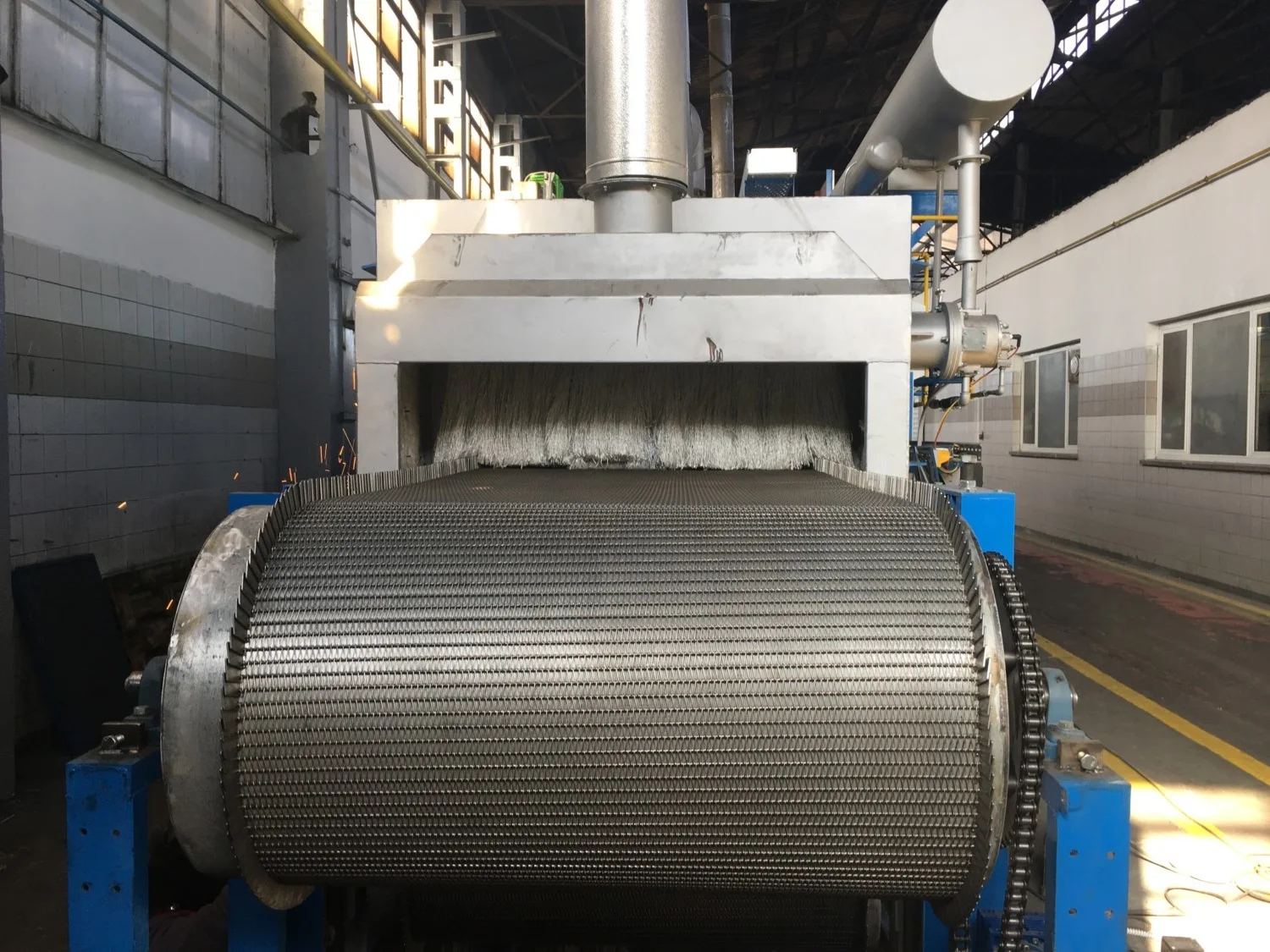

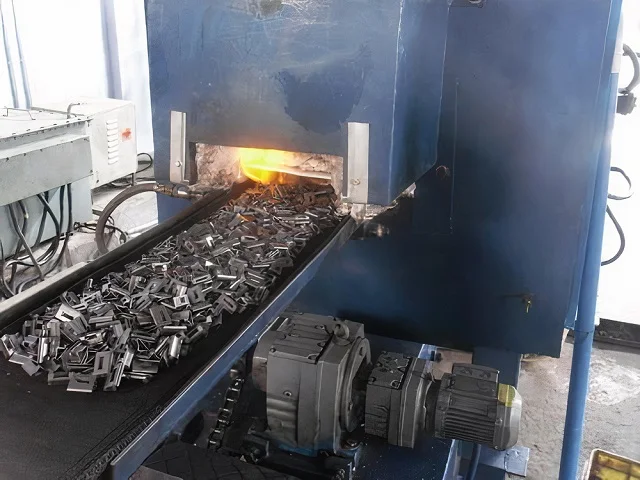

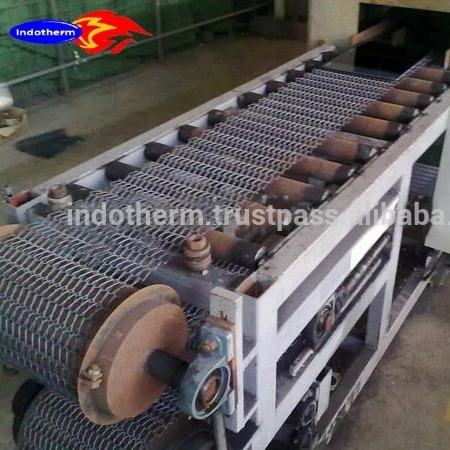

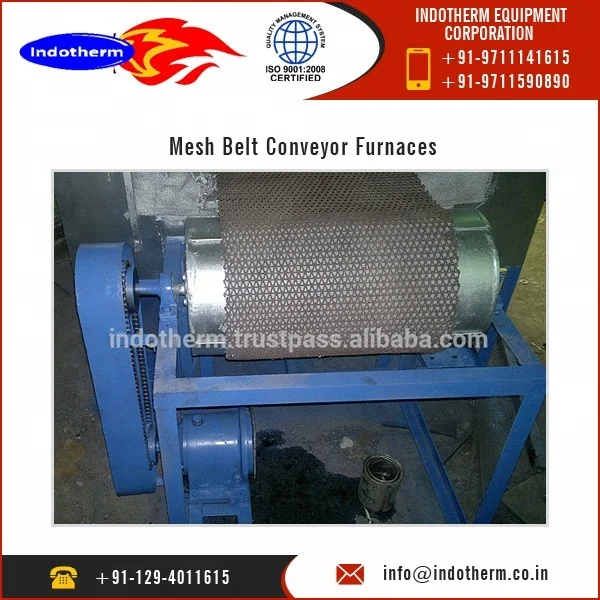

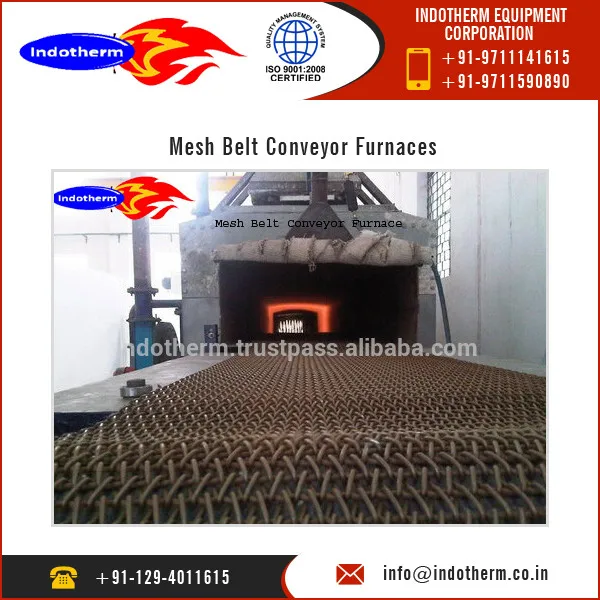

Mesh Belt Conveyor Furnaces
Continuous Copper Brazing, Silver Brazing and Annealing up to 2100°F/1150°C

The furnace is appropriate for Bright Quenching or clean hardening of medium-carbon steel, high carbon steel, bearing steel, alloy steel and other metal parts under protective atmosphere.

Our Furnace Features:
Material Quenching, carburizing and tempering of all types of Steel.
Our Furnace is Equipped with Air Circulation fan for uniform Heating..
Maximum Temperature of the furnace can be raised up to 1150 Degree C.
Our Furnace will ensure Uniform Heating Temperature, Long Service life and economy.
typically free of oxidation and discoloration with less scale than other processes.
Black Oxide Treatment can be directly done for work piece at normal temperature.

Product Passing time : 30 mm / min  can be designed up to 180 mm per min
Frequency can be adjusted : Variable or Step less Recording.

CONTROL AND AUTOMATION
Paper less Multi-Zone Control preorder system,
PID Intelligent Digital Temperature Controller, and Brand-New
Digital Display and Intelligent Control Technologies,
Display for Reducing Error from Visual Reading And
Smooth Operation for Improving Working Efficiency.
Double-Row Digital Display,
Optional Keying Setting
Warning Over-Temperature Alarm.





Specification





































































































Model



Mesh Belt


Width
    (mm)



Discharging   Length
    (mm)



Charging   Length
    (mm)



Working   Length
    (mm)



Effective   Height
    (mm)



Service   Power
    (kw)



IEC-450



500



800



1200



4000



100



54-100



IEC-660



600



800



1200



6000



100



96-120



IEC-680



800



800



1200



6000



100



96-120



IEC-685



850



800



1200



6000



100



120-150



IEC-6100



1000



1500



1200



6000



100



130-180



IEC-8100



1000



1500



1200



8000



100



170-200



IEC-1010



1000



1500



1200



10000



100



190-250



IEC-1012



1200



1500



1200



10000



100



220-300



IEC-1014



1400



1500



1200



10000



100



270-360



























Technical Specification
MOC: Furnace will be constructed out of 6-8 mm thick plate of Mild Steel  reinforced with suitable size of angle and channel.
REFRACTORY Overall thickness of refractory will be approx. 9 inches with mixed layer of Ceramic fiber bonding and refractory element holding bricks.
Elements Ceramic siliconcarbide type heating elements mountedabove andbelowthe belt provide efficient,uniformheating.Theycanbe easilychanged while the furnaceis at temperature.Furnacesmayalsobe supplied withresistance heatingribbonelements.
