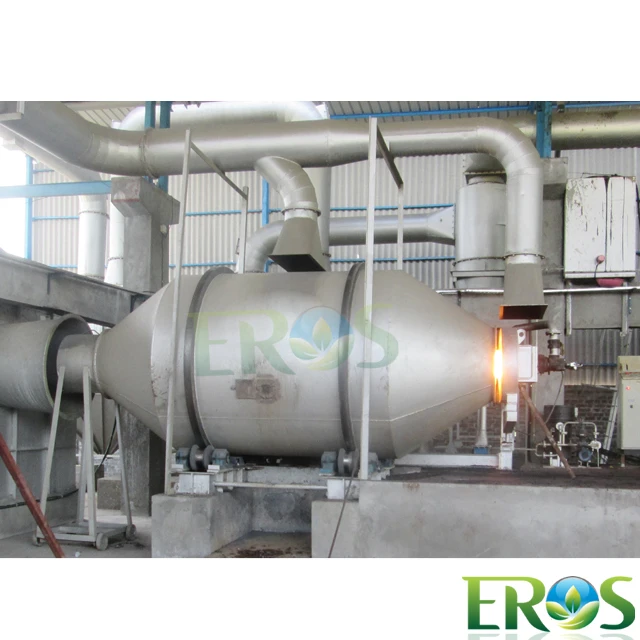

Metal Melting Rotary Furnaces

We are a renowned organization that is involved in manufacturing and supplying Rotary Furnaces. It is very flexible and universal equipment used for recycling many non-ferrous metals. Offered range generates high pollution both as flue gases & fugitive emissions. Moreover, we offer these Rotary Furnaces in various specifications at nominal rates.

Features:-

Equipment scalable for installing higher capacities

Recovers all lead in one production cycle

Can be fired with various fuels

A lead production system based on this technology has certain distinct characteristics such as:

Equipment scalable for installing higher capacities

Recovers all lead in one production cycle

Plates & powder from scrap battery as well as slag from Mini Blast Furnace can be used as raw material

Requires addition of certain consumables

Can be fired with various fuels

Generates high Pollution both as Flue Gases & Fugitive Emissions

Specifications :

Outside dimensions of the Rotary

Shell diameter 2075 mm

Shell length 2500 mm

Total length 4500 mm

Charging diameter 450 mm

Exhaust side diameter 450 mm

Refractory thickness 200 mm

Fuel Furnace Oil

Burner Model 4 A

FD Fan capacity 1250 cmh at 1000 mm of WG

Gear Box in drive 8�?, 1:40 Ratio

Motor in drive 15.0 HP x 960 RPM

Structure used for base ISMC 250 x 80

Other Details:

Raw Material Charged 3000 kgs / Batch

Total additive chemicals charged 400-500 kgs / Batch

Rotational speed 1-2 RPM

Fuel used Furnace Oil

Calorific value of fuel used 8600 kCal / kg.

Fuel consumed 30-40 lt/ hr.

Air provided for process 1250 cmh

Lead produced 9000-10000 kg/day (for Raw Material feed of 12-15 TpD;

raw material being lead powder and plates)

Flue gas generation 15000 cmh
