Product Overview

Description

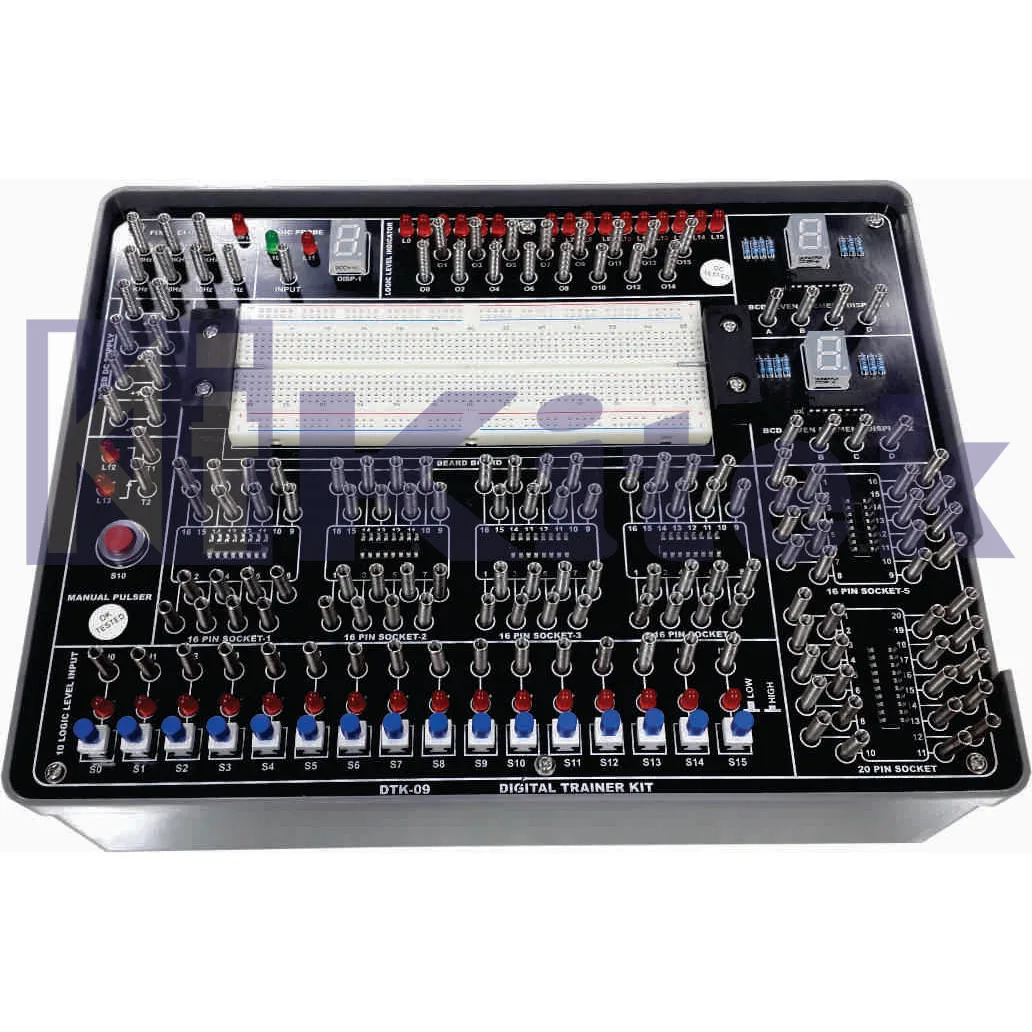

DTK-09 is a Single Board Trainer Kit which is widely used to train engineers to Develop/Study hardware for any Digital components in laboratory. This board has the provision for bread board which facilitates experimenting the Digital component Circuits.

Specifications



• 10 TTL/CMOS Logic Level Inputs with LED indication.


• 10 LEDs Logic Level Indicators for outputs.


• Two nos. of BCD Seven Segment Display.


• Fixed Clock Generator of 1Hz, 10Hz, 100Hz, 1KHz, 10KHz, 100KHz & 1MHz.


• Facility for Single Pulser Generation by a push button switch.


• Logic Probe facility provided with LED indicator and one Seven Segment Display to indicate Logic High, Low and Tri-state.


• On-board general purpose 5 Nos. of 16 Pin Socket & 1 No. of 20 pin Socket.


• On-board 630 TIE point Bread Board.


• Fixed DC Power Supply: +5Vm & ±12V .


• All interconnections are made using 2mm socket.


• Bare board Tested Glass Epoxy SMOBC PCB is used.


• Attractive ABS Enclosure.


• User’s Manual with sample experimental.
