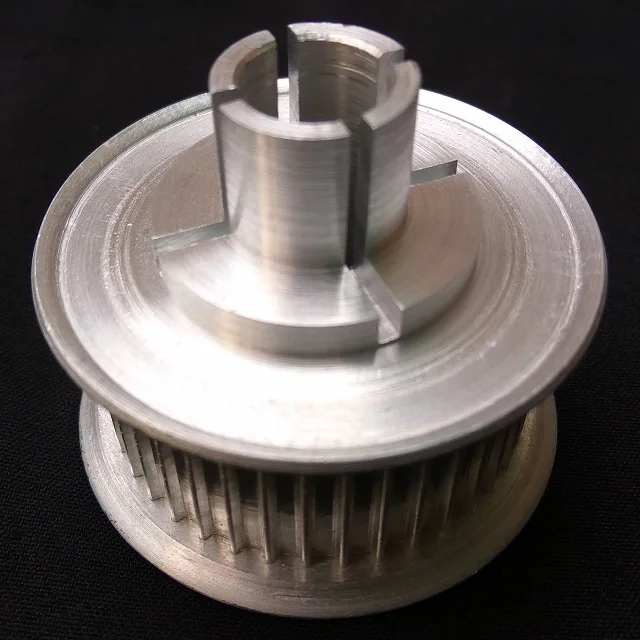

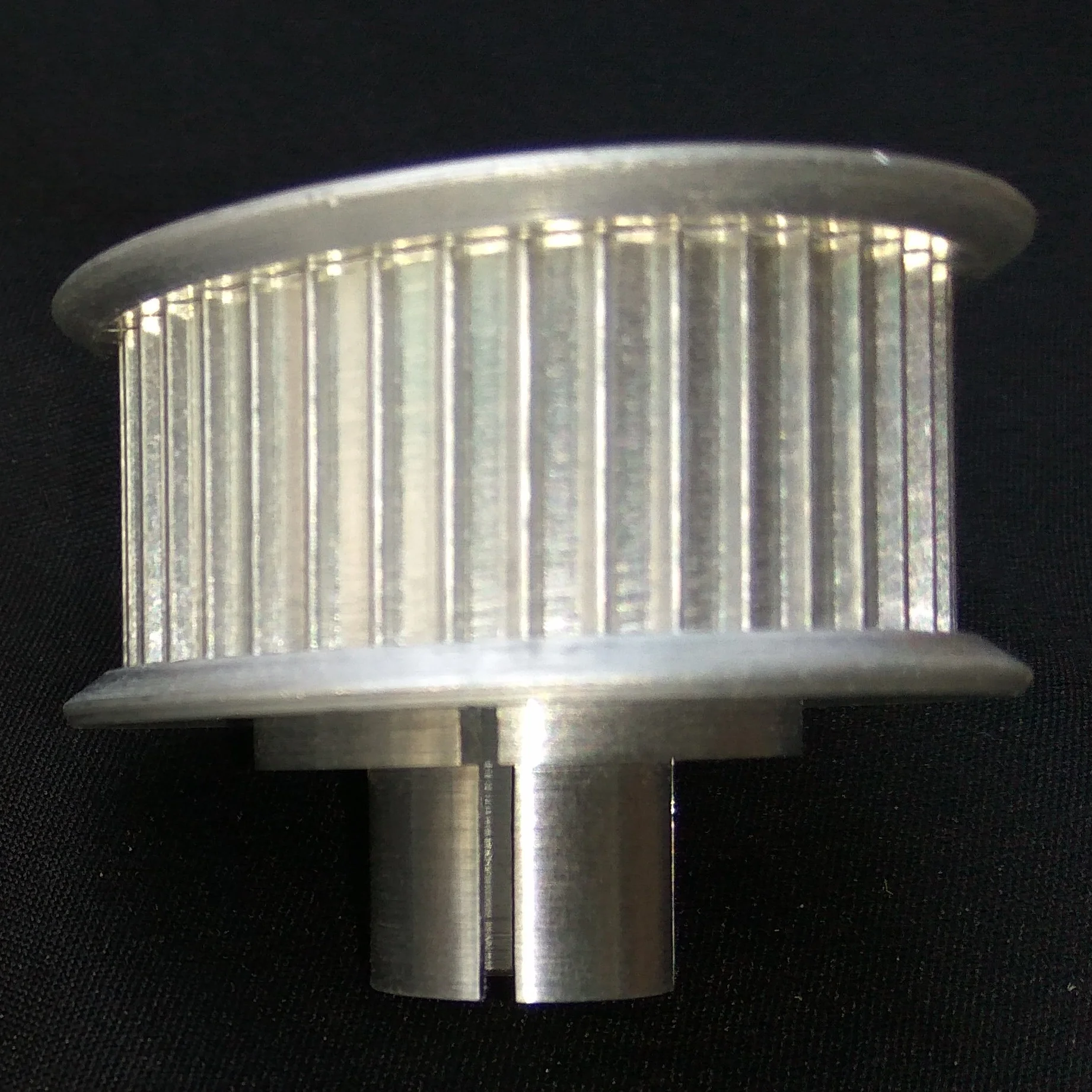

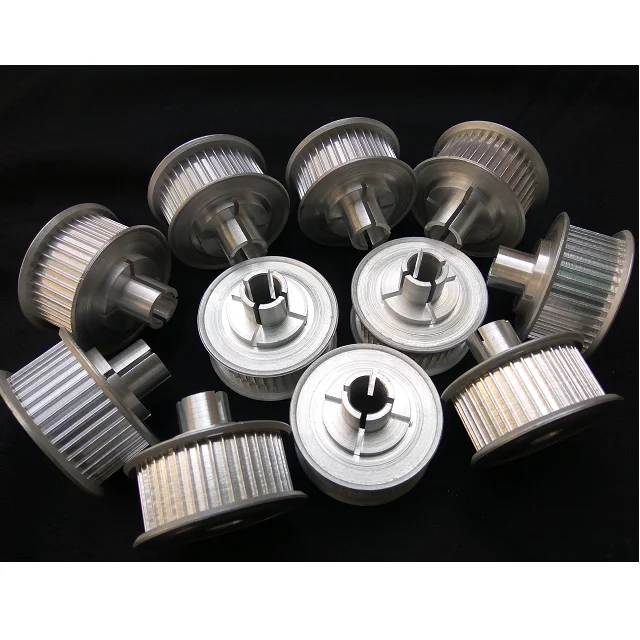

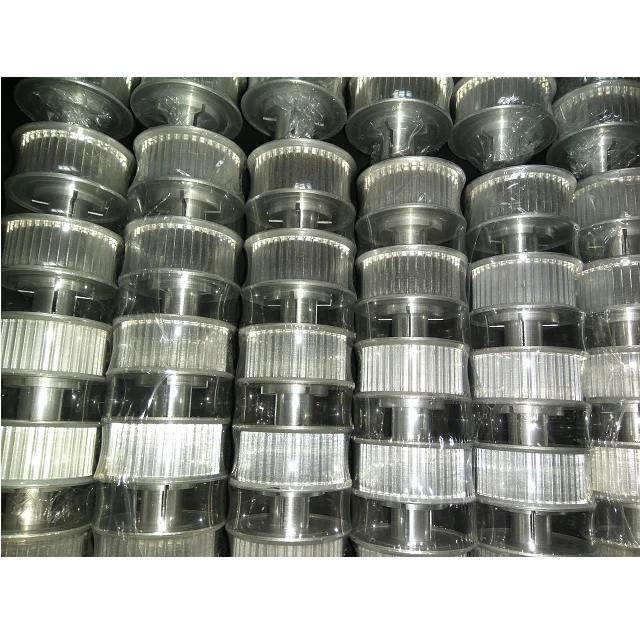

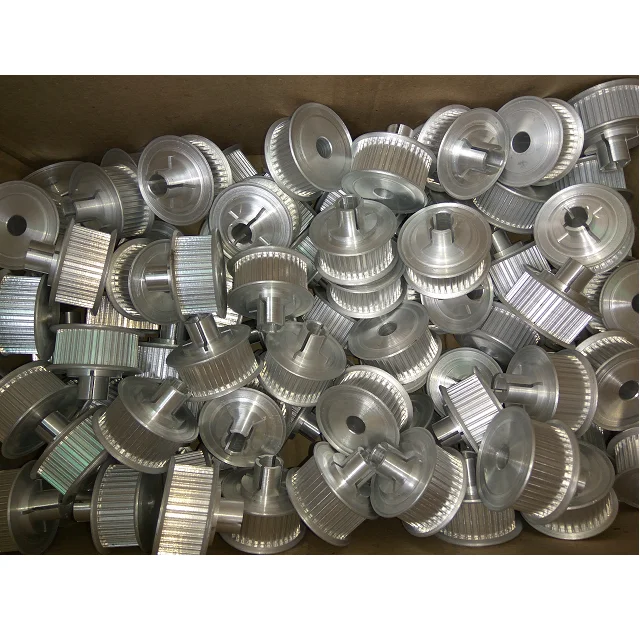

AT3 Timing Belt Pulleys Available in Aluminum US 6351material

Product Overview

Description

High quality Timing belt pulley / Positive Drive Pulley as per the standard as well as customized specifications. Complete driver designing and development service as per the needs of the customers are also offered.



Belt Section	Pitch	Outer Diameter (Pcd less difference)	Belt Width	Tooth Depth
AT3 Timing belt pulley	3.000 mm	0.42 mm	6,10,16,25,32 mm	N.A.



Features :

• Positive grip of belt teeth with pulley tooth eliminate slippage and speed variation


• Belt teeth engage with pulley axial groove in a smooth rolling motion, resulting in minimum friction and reduced noise and wear


• There is no chordal rise and fall of pitch line as with roller chain no belt creeper or slippage and hence no chatter of vibration.


• No friction, no elongation, no lack of tension, its unusually high mechanical efficiency and reduced bearing load and it increases bearing life.


• Drive permits smaller pulley size, short centre distance and narrower belt width, as well as horse power-to-weight ratio high, reduces space required and also weight of drive.


• Drive provides wide load capacity from sub fractional horsepower to 600HP.


• Drive ranges is from 10RPM to 10,000 RPM, between two spindles and multi-spindle drive system.


• In absence of metal to metal (metallic pulley and rubber/P.U belt) contact eliminates the need for lubrication systems, oil retaining device and their nuisance, cost, weight and possibility of product contamination.


• Suitable for all type of power transmission, indexing, positioning, conveying systems multi-shaft drive because of high accuracy drive


• Reversing drive is possible with double sided tooth belts, known as twin-powder and belt, also. Running serpentine drives.



Applications :

• Engineering : Machine Tools, Foundry Equipments, Conveyors, Compressors, Painting systems etc.


• Pharmaceuticals & Food Processing : Pulp Mill Blowers, Conveyor in warehouse, Agitators, Grain, Boiler, Bakery Machine, Labeling Machine, Robots etc.


• Agriculture Industries : Cultivator, Rice Winnower Tractor, Harvester, Harvester, Rice Planter etc


• Textile Mills : Looms, Spinning, Wrappers, High-speed auto looms, Processing machine, Twister, Carding machine. Ruler calendar machine high speed winder etc.


• Printing Machinery : News paper press, Rotary machine, Embossing, Screen Printer Machine, Linotype machine offset printer etc.


• Paper Industries : Chipper roll grinder, Cut off saw, Edgers, Flotation cell and chips saws etc.


• Building Construction Machinery : Buffers, Elevator Floor polisher mixing machine, vibrator, Hoists, Crusher etc.


• Office Equipments : Typewriter, Plotters, Camera, Money drive, Money Sorting machine, Data storage equipment etc.


• Glass and plastic Industries : Conveyor, Carton Sealers, Grinders, Creeper paper manufacturing machine, Lintec backing etc.


• Home Appliances : Vacuum cleaner, Laundry machine, Ice-cream machine, Sewing Machine, Kitchen equipments etc.
