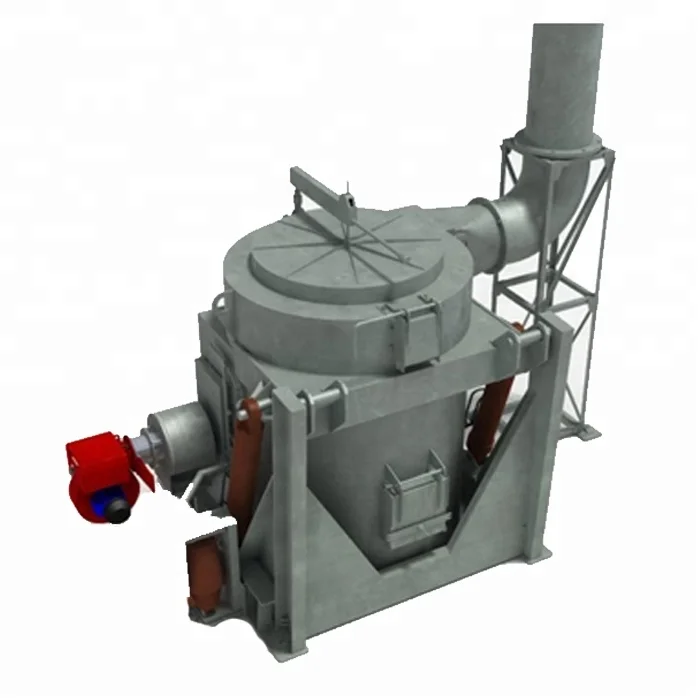

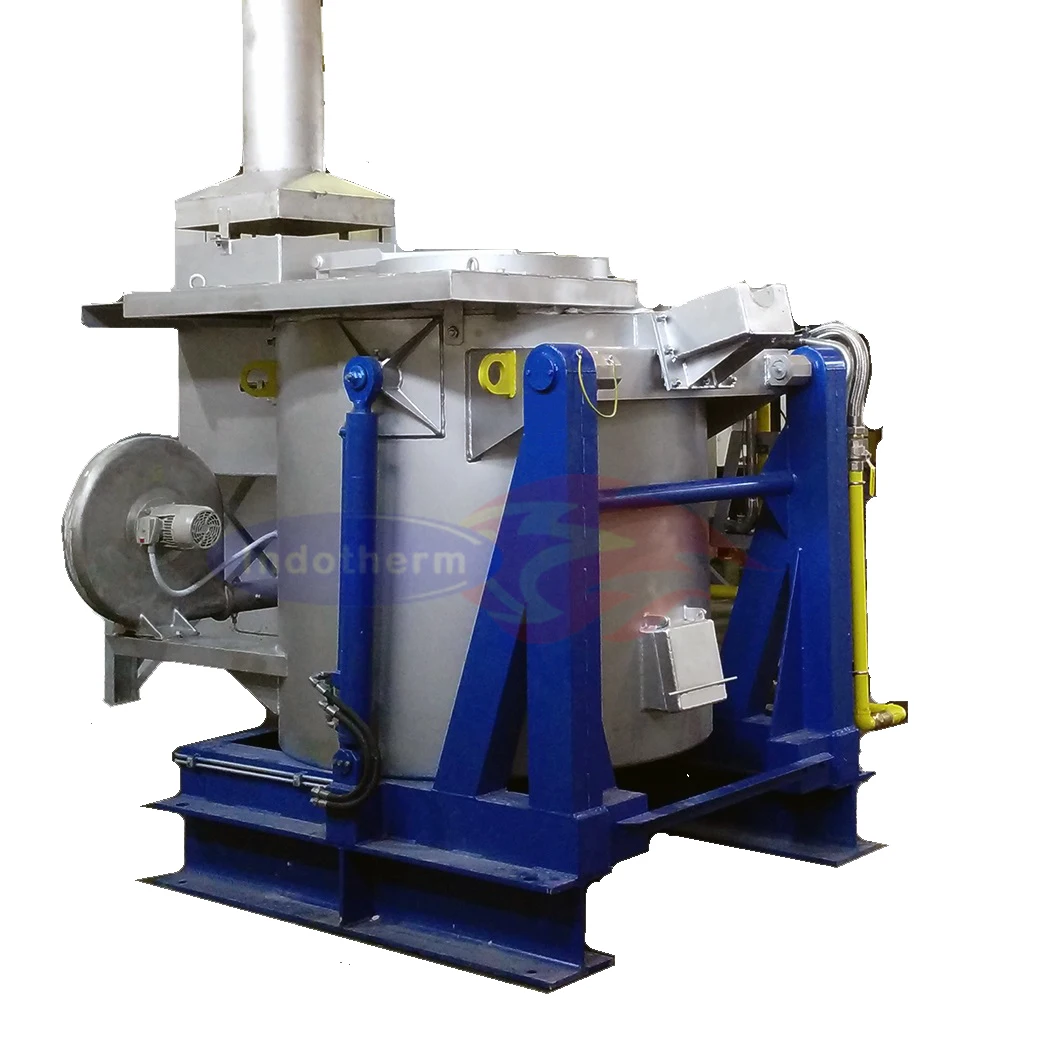

500 kgs Capacity Brass Melting Gas Fired Tiling Furnace for Equipped with Morgan Crucible and Modulating Burners

Share on (50033586470):


Price:$10,750.00

Quantity:


Product Overview

Description



Product Details


products TITLE.jpg








Intruducing Gas Fired Furnace - with Automatic Combustion System
Indotherm Equipment Corporation has been designing, engineering, and manufacturing Crucible Furnaces since 1985. We have a complete line of Crucible Furnaces to melt Lead, Brass, Aluminum, Tin, and Copper.


Our Crucible Furnaces can be used for a variety of applications including Die Casting Industries, Aluminum Ingot manufacturing business, all kinds of Non Ferrous Melting Application, University Lab Foundries, skill Bronze Casting Foundries, and any other non-ferrous melting application.


Our advanced technology Crucible Melting Furnaces are equipped with fully automatic Combustion Systems that are fitted with flash ignited and utilize FM approved flame supervision systems. They are built for rugged Industrial application and are nicely packed and shipped in a turnkey condition ready for installation and immediate operation.








Specifications


Specifications TITLE.jpg


































































Model



Burner Btu/Hr



Fuel



Electrical



Melt Rate Hot



Cap. Kgs. Brass



060-F



300,000



Gas/


Propane/Oil



220 -380V


Single Phase and Three Phase Burner Option



30 Kgs/Hr



90



100-F



500,000



50 Kgs/Hr



150



200-F



600,000



95Kgs/Hr



290



300-F



900,000



145 Kgs/Hr



440



400-F



1,000,000



190 Kgs/Hr



580



600-F



1,800,000



290 Kgs/Hr



875



1000-F



2,500,000



500 Kgs./Hr



1450



2000-F



3,000,000



1000Kgs/Hr



3000






















































































Model



Floor Space Required



Height



Max. Temp.



Lining



Crucible O.D. In.



Crucible Ht. In.



Shipping Weight (Kgs)



060-F



5' x 5'



4'



1250 DegC



9 inchs Castable



11



14.5



1250



100-F



5' x 5'



4'



12.5



17



1450



200-F



5.5' x 5.5'



4.5'



15.5



20



1670



300-F



6' x 6'



4.5'



17



23



1700



400-F



6.5' x 6.5'



4.5'



20.5



25



1700



600-F



7' x 7'



5'



23.5



27.5



1750



1000-F



8' x 8'



6'



28



35



1750



2000-F



8' x 8'



7'



35



48



3450




About Us


About Us TITLE.jpg





In the year 1995, Indotherm Equipment Corporation started its operation with a vision of manufacturing, exporting, and supplying of high standard Furnace and Belt Conveyor. Being an ISO 9001:2008 certified firm the range of products which we have been delivering to our comprise Hydraulic Tilting Furnace, Reverberatory Furnace and Tilting Reverberatory Furnace. We started our operation with an aim to deliver a product which is safe and environment friendly as well. Our range of products saves energy and consumes less fuel which is one of the major features of our product.





We have a directory of authorized vendors and after having an aggressive research, we select the most reliable vendor. The raw materials which are supplied to us are quality checked at their end, we after acquiring it from them also conducts a quality test and thus make sure that it meets the industry parameters. Since we started, we have been highly appraised by the clients for delivering them an excellent product. In these years of operation, we have been able to create a position in the market by offering excellent quality of service and products. We also have an excellent packaging unit equipped with latest machinery which helps in packing the products, making sure that they are safe while being exported and supplied. We also have an efficient team who keep themselves up breast with the technology and accordingly put their efforts in delivering high-class products. We export our products across the globe.





Mr. C. L. Tripathi has always followed a customer centric approach and maintained a friendly business policy. His vision and mission has always been in delivering a superior product which is safe for the environment and also consumes less energy. It is his guidance that we have been able in bringing our client a quality product.








Our Excellence :



Our knowledge has been functioning for over 20 years with flourishing in the universal Aluminium industry, where we are well thought-out as a spot supplier for the chief and derivative industries as well as for the aluminum foundry industry. Our ground-breaking modern colossal equipments and plan solutions that protect profitability merit goes to better energy efficiency, reduced upholding downtime, and longer repair cycles.


Our worldwide presence and local experience allows us to offer the most suitable and cost effective technical solutions that will contribute to our customers' productivity and efficiency. In the aluminium industry, we focus our efforts on the following concerns:



  • Ensure the safety, reliability, and productivity of the equipment

  • Suppress corundum build-up

  • Withstand mechanical abuse

  • Products & Applications

  • Installation, Commissioning and Turnkey Maintenance


  • Turnkey New Projects










Most Selling Product


Most Selling Pro.jpg





















Manufacturer and Exporter of Furnance and Belt Conveyor.
