SIFULTRAS 8.2 Full Digital Ophthalmic A Scan & Pachymetry Ultrasound scanner

Product Overview

Description

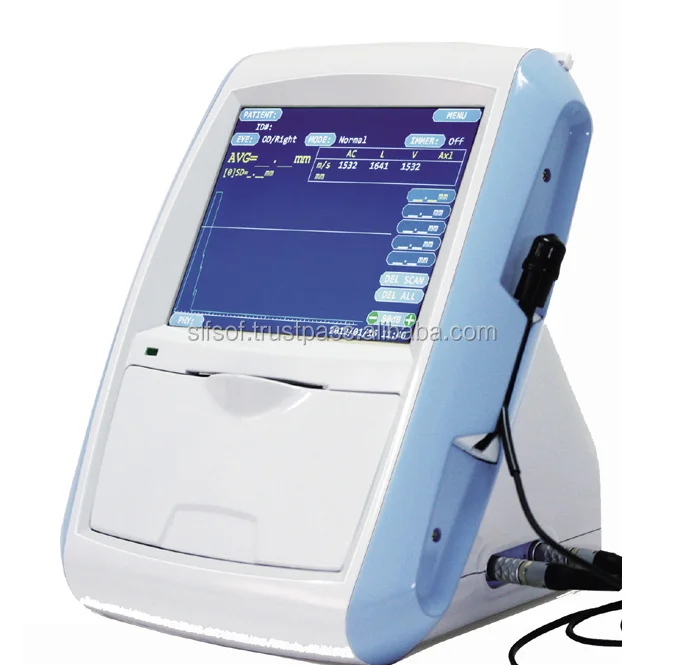

 SIFULTRAS-8.2 Full Digital Ophthalmic Ultrasound scanner



> Ultrasound machine portable, ophthalmic ultrasound equipment, ophthalmic ultrasound machine, SIFULTRAS-8.2



> Full digital portable ophthalmic A\\/B ultrasound scanner\\/ ultrasound machin ,Full digital portable ophthalmic A\\/B ultrasound scanner,ultrasound scanner



> Our experienced team of engineers is able to deliver a ready to use solution to our clients. Our hardware + a customized software as android ios app (as an example) We can assist our clients , to develop their own customized software that could be : 1/ Mobile/Desktop APP to connect one Medical device to your smartphone; Tablet or Desktop (example : ultrasound scanner) . 2/ Mobile/Desktop APP to connect one Medical device to your smartphone; Tablet or Desktop (example : Glucometer, BPM, Oximeter, Thermometer, Scale..). This to focus on one Medical specialty requiring multiple connected health devices. 3/ More Sophisticated Mobile/Desktop APP with multiple devices , and integrated to an existing EHR for a certain specialty (example : pediatrician) or/and a Hospital, Clinic and Pharmacy ...etc; Information System. Note : Any APP could be Android, IOS, Microsoft.



 Ultrasound Scanner Ophthalmic A-Scan/Pachymeter with macular recognition function, can accurately measure axial length, anterior chamber depth, lens thickness, as well as intra-ocular lens calculation.

And also with the central area and the peripheral areas gain automatic compensation capability, accurate measurement of central and peripheral corneal thickness, is widely used in the preoperative examination and postoperative effect evaluation of refractive surgery.



A scan probe

10MHz import small size probe, built-in luminotron
Measuring range: 15mm-40mm
Measurement precision: ±0. 05mm; with macula lutea trace function
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average
Method of measurement: immersion and contact
Eye mode: Phakic/ Aphakic/Dense/ various IOL
IOL formula:SRK-II,SRK-T,BINKHORST- Ⅱ,HOLLADAY,HOFFER-Q,
HAIGIS
Enter the name & ID; easy to check archive
Storage: 10 cases, 5 readings each case

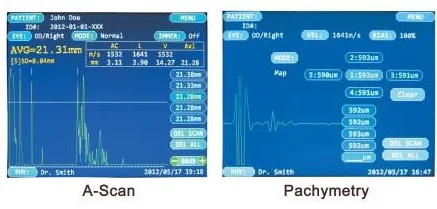

Output: A scan waveform and IOL calculation sheet



P scan probe

20MHZ, angle of 45 degrees makes easier operation
Resolution: 5um
Measuring range: 150um~1500um
Display: SINGLE mode and MAP mode
Can display ultrasound waveform when measuring
Each group is the average of 20 measurements
Switch between IOP measured value and actual value
Can input name, ID and operator’s name

Others:
Large color liquid-crystal screen
Touch screen input, easy operation
Curve freezing: Manual/Auto mode, controlled by pedal
Built-in speed thermal printer
