3 Ton Lead Battery Recycling Plant Scrap Battery Recycling Plant Turnkey Solutions for Lead battery Recycling Secondary Lead

Share on (50033684108):


Price:$90,500.00

Quantity:


Product Overview

Description



Product Description


#IndustrialFurnace


Lead Rotary Melting Furnace for Lead Smelting

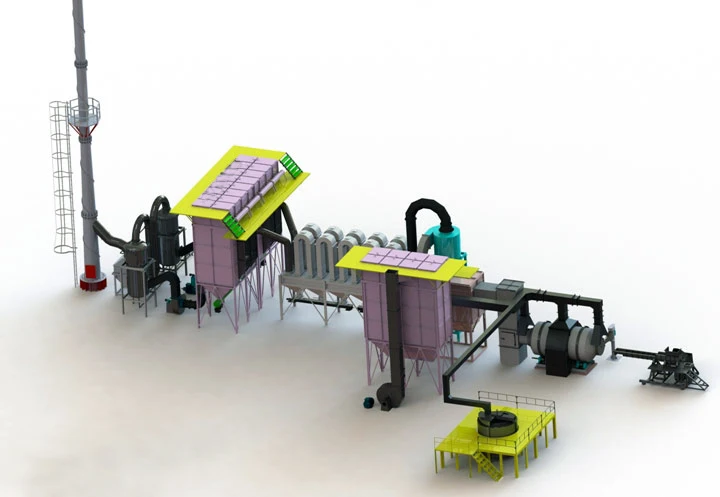

Indotherm Equipment Corporation is One of the Key Exporters of the Lead Recycling Plant from India, We manufacture turnkey plants for recovery of Lead from Used Battery Scrap and Lead Concentrate. We have our own manufacturing and design unit to build scrap Battery Recycling plants.

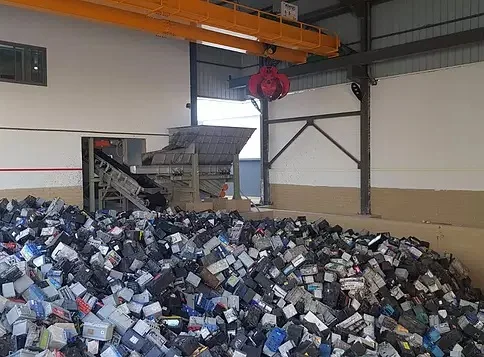

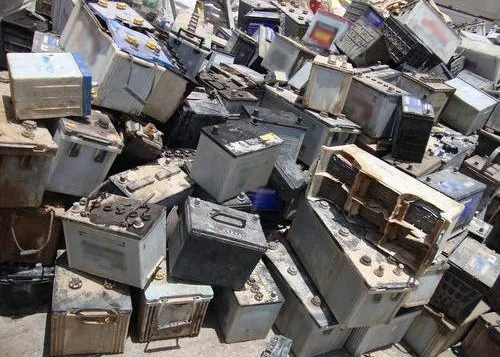

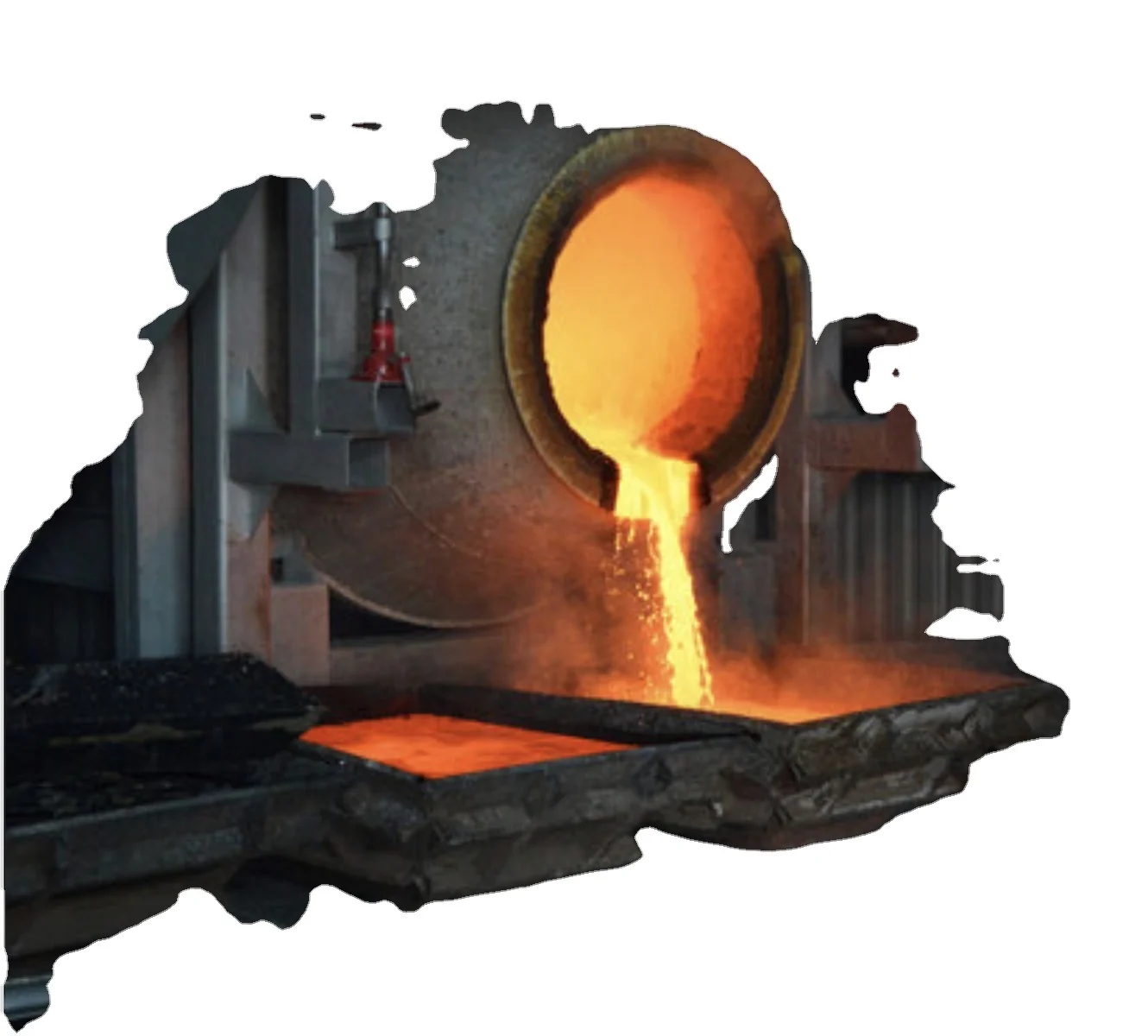

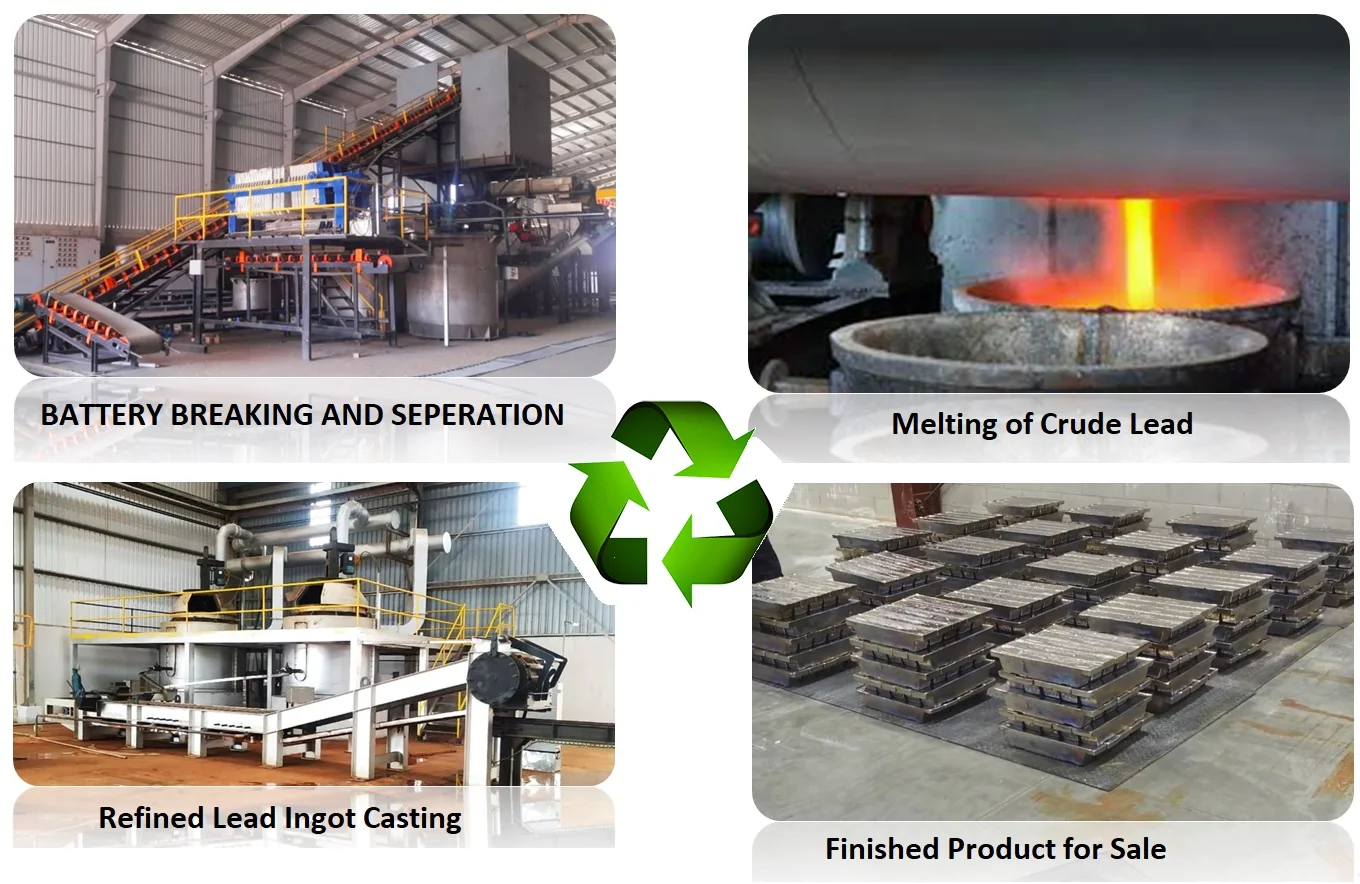

Lead from Scrap Batteries is recovered in 4 Phases Collection, Separation, Melting, and Refining. Initially, Scrap lead from Lead Acid Batteries is processed in Indotherm Manufactured Rotary Furnaces with time and temperature Lead is Extracted in Soft and Hard forms.










Flue Gas Treatment System:


Smelting of Lead produced lots of Toxic Gases that need to be treated before releasing the same into the environment.





Main Aspects aka types of equipment that are used in Recovering Lead from Scrap to Ingot are as Follows:

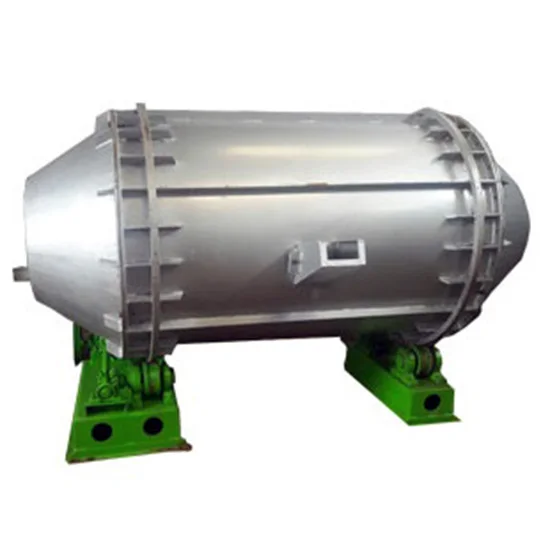

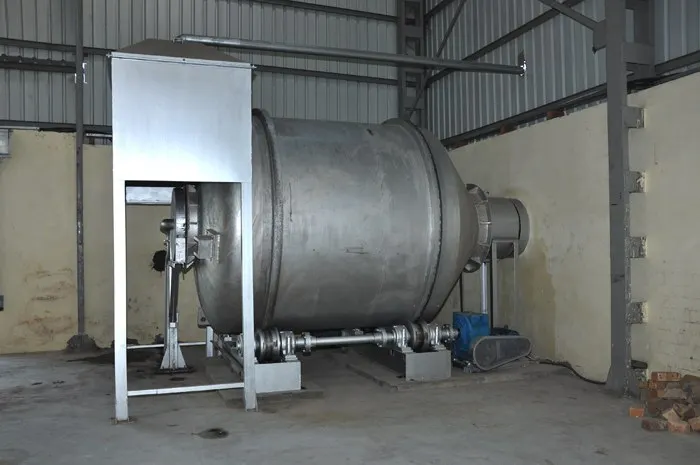

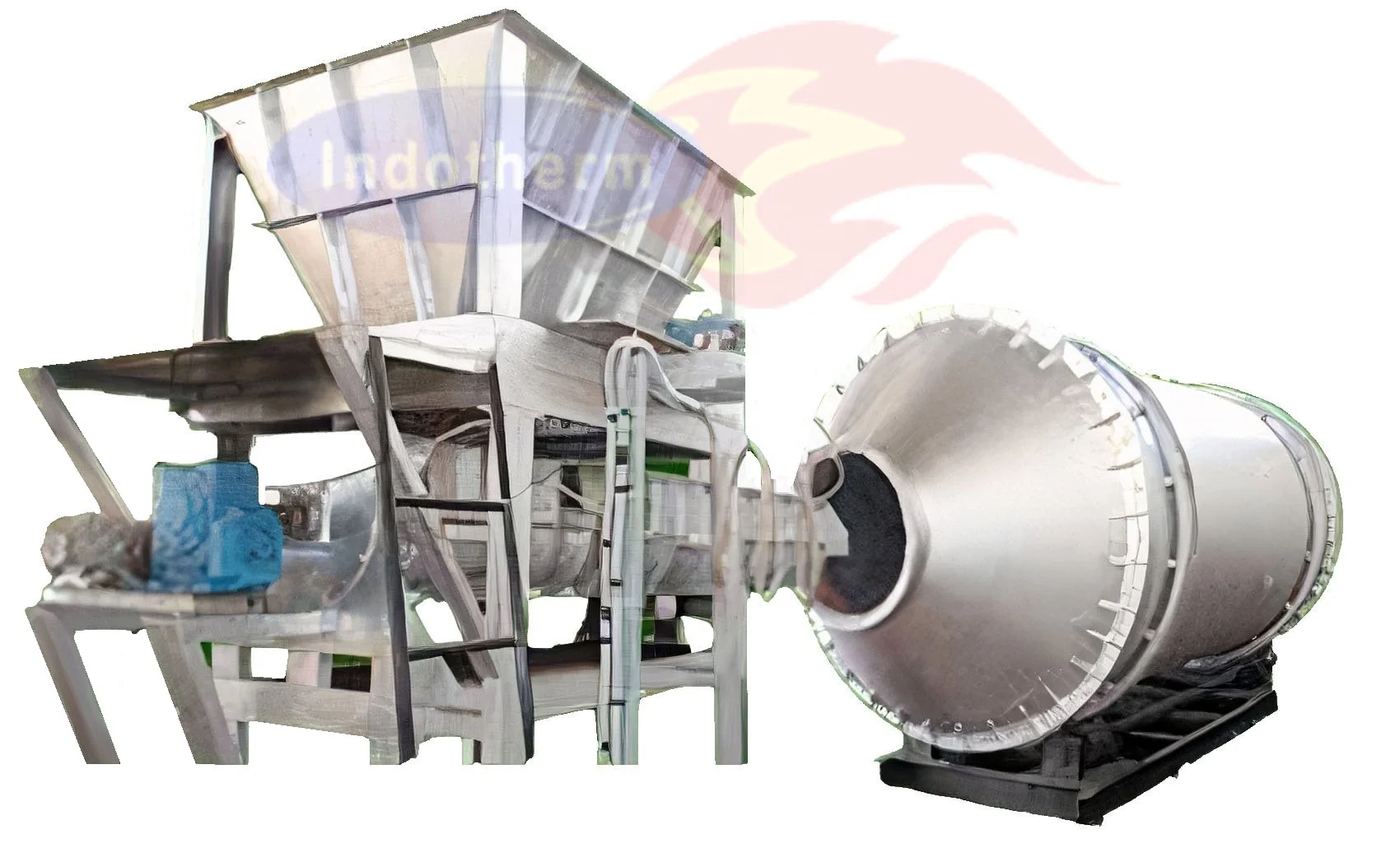

Rotary Furnaces: Indotherm Hybrid Rotary Furnace is One of the Best Equipments used in Extraction of Lead from Acid Battery Scrap and Concentrates. The Technology used in furnace is known and 'ARR' Auto Rotation and Radiation which allows the furnace to rotate in RPM as less as 0.5 per min. The Refractory Hearth present in the Furnace is 305 mm thick layer of High Alumina Bricks which allows the material to break free in uniform Temperature.


















Scrap and Concentrates. The Technology used in the furnace is known and 'ARR' Auto Rotation and Radiation which allows the furnace to rotate in RPM as little as 0.5 per min. The Refractory Hearth present in the Furnace is a 305 mm thick layer of High Alumina Bricks which allows the material to break free in uniform Temperatur






Settling Chamber: One end of the Rotary Furnace is permanently connected to the Settling Chamber which basically settles the fumes and heavy particles coming from the furnace.

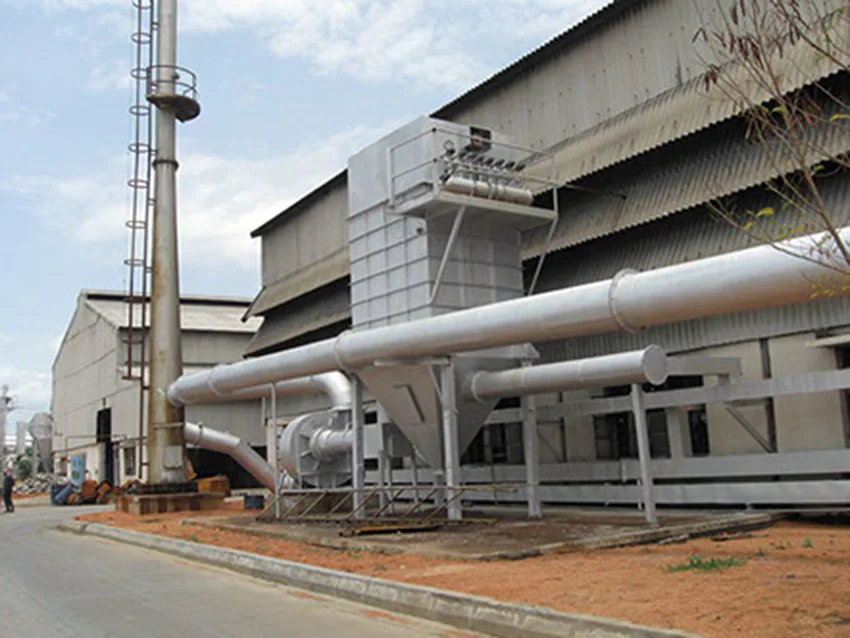

Cooling Line: Its Further Cools the Gases with the creation of series of bends and further releasing the same to the Bag House System.

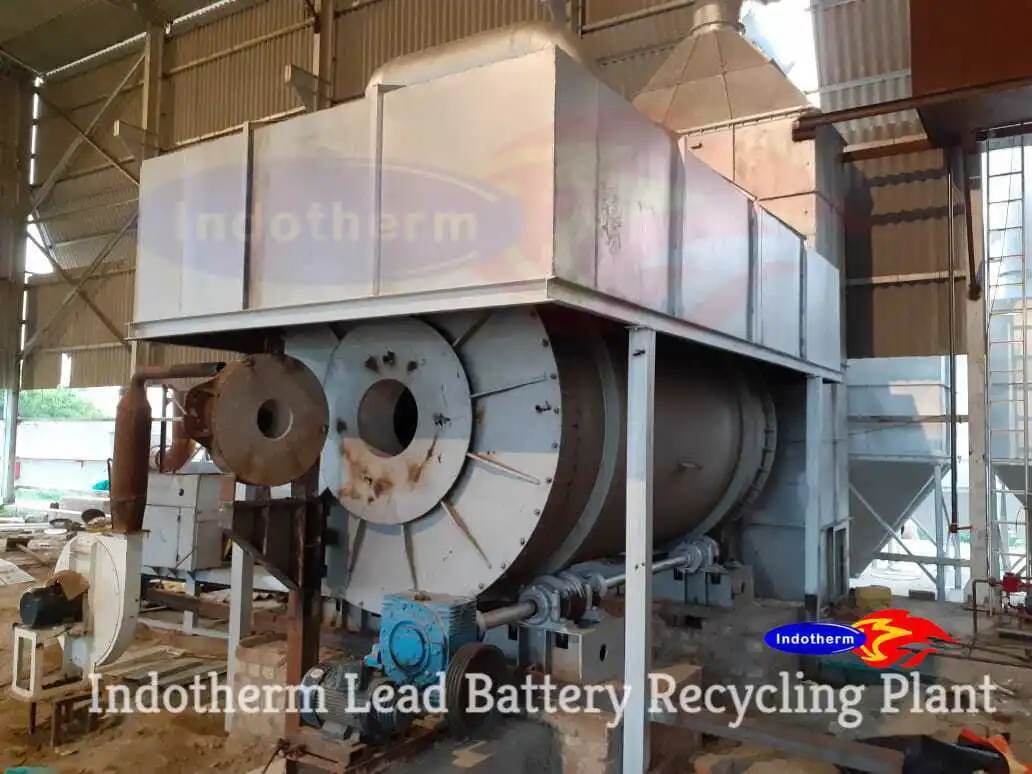

Indotherm Equipment Corporation Offers Turnkey Solution for Lead Acid Battery Recycling | Lead Reclamation from Used/Scrap Lead Acid Batteries | Fume Gas Treatment Hazardous Emission from Recycling Plant | Lead Refining | Lead Ingot Casting.





Our Key Staff has the expertise for the exper cad design as well as Installation and Plant and Machinery. Our Solution for Manufacturing of Used Lead Acid Battery Recycling Starts from minimum 3 Tons per Batch and goes maximum to Customer Requirement.





Service and Technology Provided:



  • Extraction of Lead from Spent Lead Acid Batteries

  • Design of Acid Battery Recycling Plant

  • Lead Refining, Lead Alloying, Antimony, and Calcium Lead Ingots

  • Manufacturing of Lead Sub-Oxide Plants.

  • Treatment of Flue Gases from Lead Acid Battery Recycling Plants.

  • Providing of Knowledge and Consultancy For Plant Solution.

  • Providing of Staff and Team to run the Plant if required by the client.

  • PLC-based automation for Lead Recycling Plant.


#Lead-Smelting #Recycling-Plants #Rotary-Furnace-with-Fugitive-Emission-Control_System
#Rotary-Furnace-with-Air-Pollution-Control-Device


#Lead-Smelting-Rotary-Furnace-Manufacturer-from-rotary-furnace
#Manufacturer-of-Rotary-Furnace #Lead-Smelting-Rotary-Furnace #SS-Lead-Rotary-Furnace #Lead-Rotary-Furnace-offered-by-indotherm


$Lead-Recycling-Rotary-Furnace-Suppliers-all-Quality-lead-recycling-rotary-furnace-Manufacturers











Specification Old

































Rotary Type Melting Furnace
 Fuel Consumption 0.5Kw/Kg for melting at 720C Tap out temperature.12 Kw/Hr for Holding.
 Capacity 3000 Kgs – 25000 Kgs per Batch.
 Charging Manual.
 Metal Tapping Manually or Hydraulic Tilting via Furnace Launder.
 Fuels Electrically heated or with LDO/FO/HSD/LPG/Propane.
