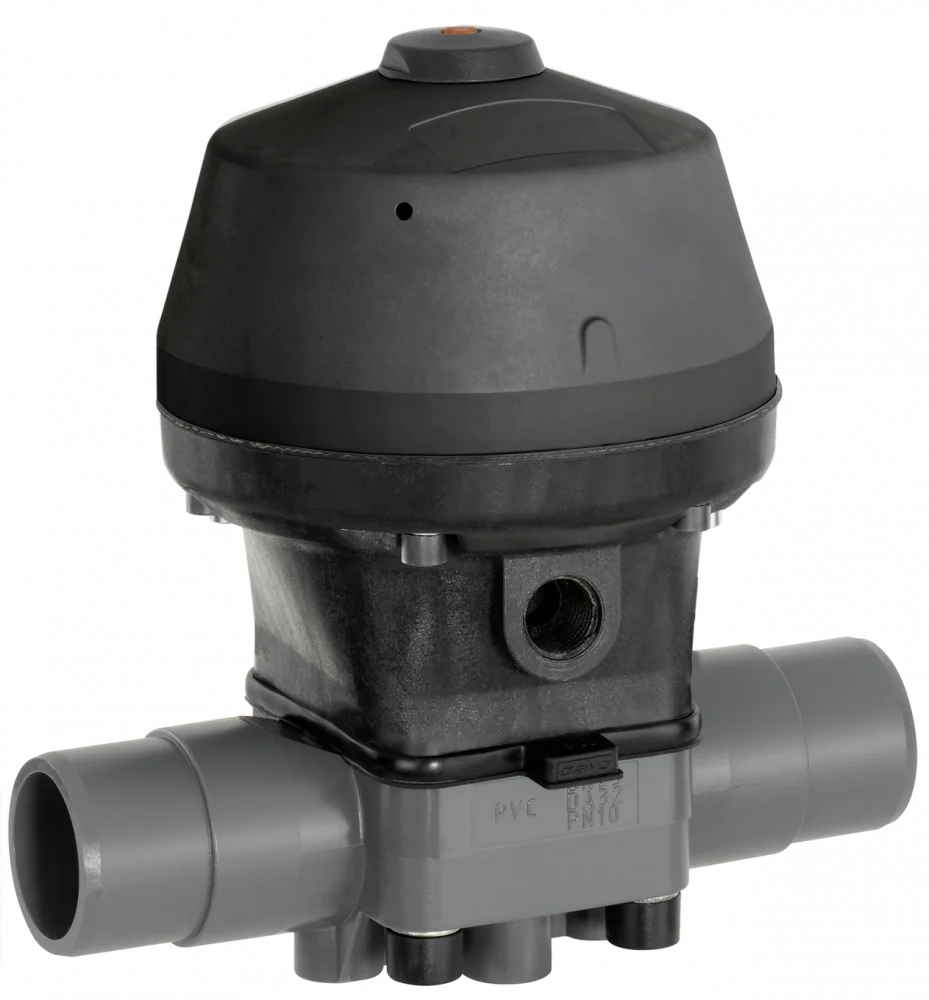

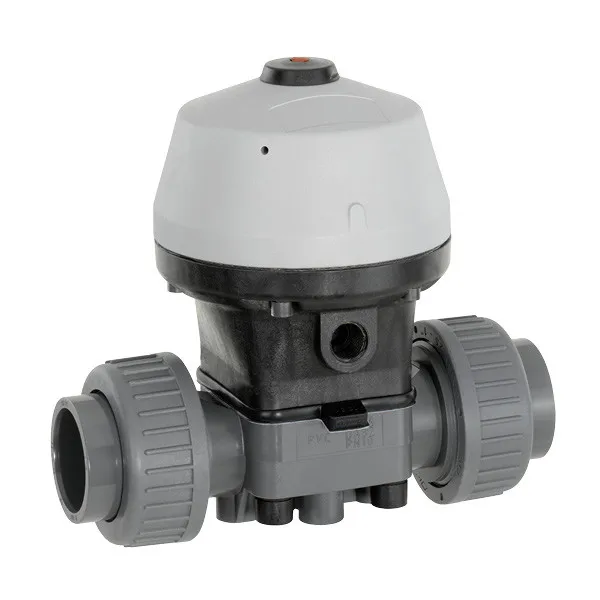

Diaphragm valve R690 Made in Germany

The GEMUe R690 2/2-way diaphragm valve has a low maintenance membrane actuator and is pneumatically operated. Normally Closed (NC), Normally Open (NO) and Double Acting (DA) control functions are available. The High-Flow valve body provides compact dimensions at high flow rates.Same mounting height planes over multiple nominal sizes
Compact system design thanks to flow-optimized high-flow valve bodies
Reduced control air consumption
Modified spring sets available for applications with reduced control pressure

Connection types: Flange | Spigot | Union end
Connection standards: ANSI | ASTM | BS | DIN | EN | ISO | JIS
Body materials: ABS | Inliner PP-H, grey / outliner PP, reinforced | Inliner PVDF/outliner PP, reinforced | PP, reinforced | PVC-U, grey | PVDF
Diaphragm materials: EPDM | FKM | NBR | PTFE/EPDM
Conformities*: EAC | NSF

Characteristics:

Pictures:

We offer various payment options. Please contact us for futher details.

1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.


2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.


3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.
