Used or Second Hand 40 Feet 40FT Shipping Containers
US $800.00-$1000
Cheap Container Roof Bow material Galvanized steel
- Category: Open Top Containers >>>
- Supplier: PHUONG NAM PHAT SNG CO. LTD
Share on (50034111475):
Product Overview
Description

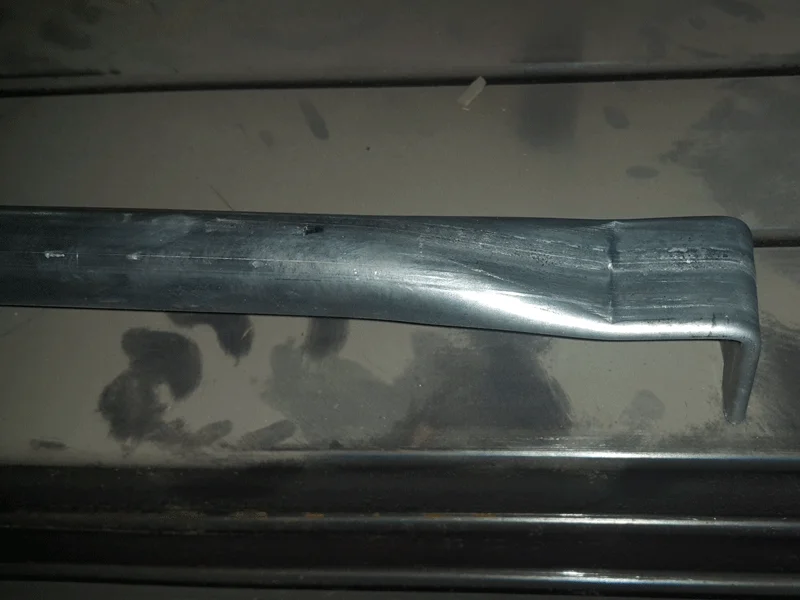

ROOF BOW CONTAINER OPEN

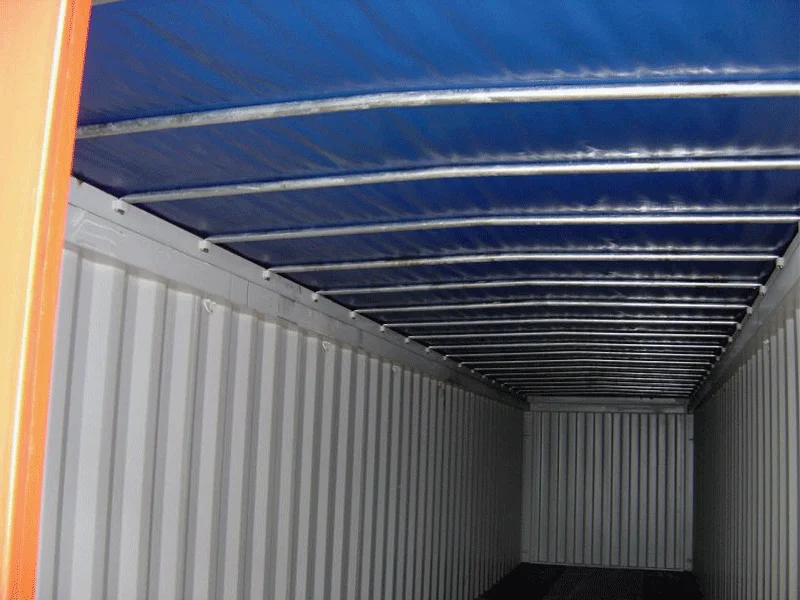

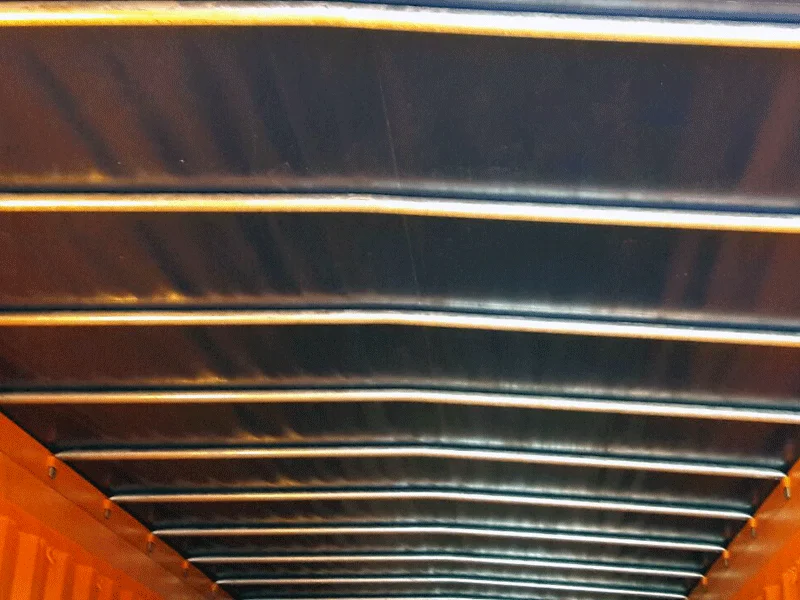

Container Roof Bow is used to support the PVC tarpaulin for open top container.
|
Product name: |
Container Roof Bow or Open Top Container from Viet Nam |
|
Place of Origin |
Vietnam |
|
Brand Name |
Phuong Nam Phat |
|
Applications |
Dry Container/ Shipping Container 20'/40' |
|
Position |
Open top for container |
|
Certification |
ISO9001 |
|
Capacity |
10.000 pcs/month and more |
|
Material |
Corten A Steel (Corten -A (SPA-H) |
|
Size |
50*2260*50 mm/ 50*2325*50mm |
|
Weight |
7.5 kg |
|
Surface Treatment |
Galvanized or depent to customer |
|
Color |
Light grey |
|

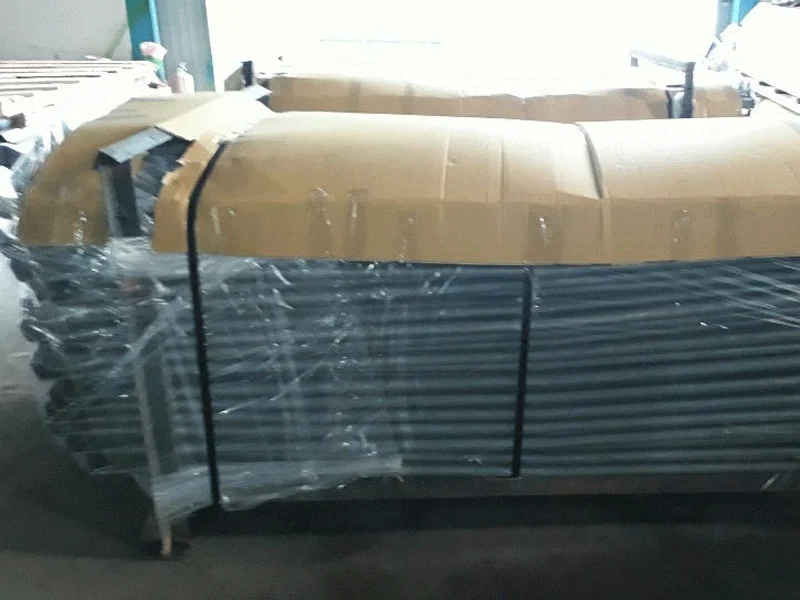

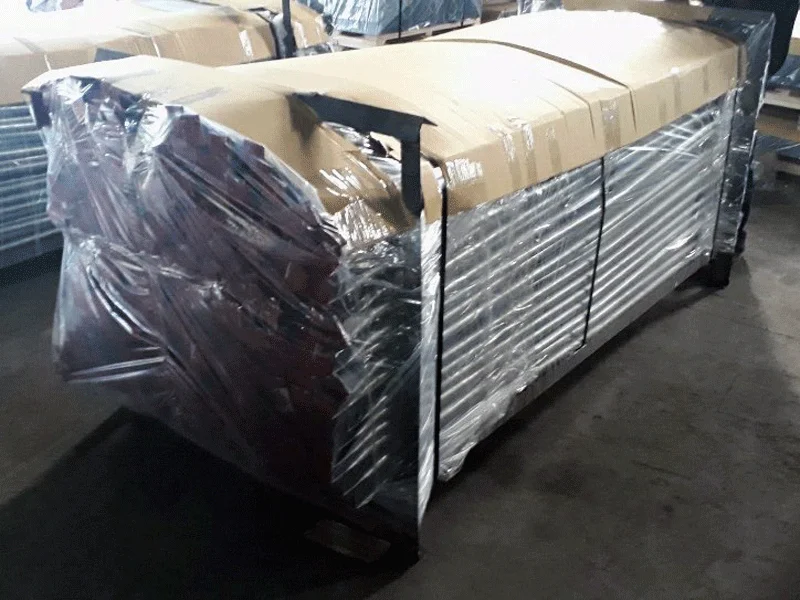

Packaging Details |
100 - 500pcs into one pallet. |
|
packed in standard exported case, carton, pallet… |
|
|
MOQ |
500 pss |
|
Payment |
TT/ LC |
|
Port |
Cat Lai HCMC |
|
Delivery time |
14 days |
|
Other related products |
Container panel (tole): roof panel, side panel; container posts and rail: bottom side rail, cross member, front corner post, rear corner, spreader, top side rail, door sill container...; Container twist lock, corner casting: roof bow, screws, twist lock, tarpaulins and container flooring plywood. |
Our Services
|
OTHERWISE, WE ALSO SUPPLY MORE CONTAINER SPARE PARTS. |
||
|
Part/ Production Name |
Descriptions |
Dimensions |
|
End Door |
ISO Corner Fitting, 8pcs/set |
178 *162 *118mm |
|
Door Hinge Set |
Blade, Pin, Lug, Bush |
|
|
Container Door Locking Device |
Handle, Handle hub, Seal set |
|
|
Door Gaskets |
1143 *2254mm |
|
|
Gasket Retainer |
|
|
|
CSC plate |
0.8 *100 *200mm |
|
|
Door Panel (3 CORR) |
2.0 *943 *1957mm |
|
|
Door Vertical Member Edge SQ.Tube |
3.2 *50*100 *2260mm |
|
|
Door Horizontal Member Edge, Channel |
3.0 *50 *150 *1024 or 943mm |
|
|
Door Sill |
4.5 *158 *150 *2400mm |
|
|
Door Header Lower |
4.0*112.5*113*137.5*2400mm |
|
|
Rear Corner Post inner |
12*113*40*2353mm |
|
|
Rear Corner Post outer |
6.0*70*39*230*2400mm |
|
|
End Front |
Front End Panel |
2.0*1024*2400mm |
|
Front Corner Post |
6.0*209*225*2400mm |
|
|
Front Bottom Rail |
4.0*115*154*2400mm |
|
|
Top End Member SQ.Tube (Horizontal) |
3.0*60*60*2112mm |
|
|
Roof |
Container Roof Panel (5 CORR) |
2.0*1045*2356mm |
|
Door Header Upper (Extension Plate) |
3.0*388*2400mm |
|
|
Top End Rail (Extension Plate) |
3.0*397*2400mm |
|
|
Side |
Container Side Panel |
1.6*1116*2400mm |
|
Top Side Rail, SQ. Tube |
3.0*60*60*5702mm |
|
|
Ventilator Cover |
204*67*25mm |
|
|
Base |
Container Plywood Flooring, 19ply – 21ply |
28*1160*2400mm |
|
Floor screw |
L=50 to 120mm |
|
|
Bottom Side Rail |
4.5*50*162*30*5702mm |
|
|
Cross Member Small |
4*45*122*45*2350mm |
|
|
Cross Member Large |
4*45*122*75*2350mm |
|
|
Fork Pocket Bottom Plate |
360*300mm |
|
|
Fork Pocket Top Plate |
360*2350mm |
|
|
Gooseneck parts |
|
|
|
Container Flooring Plywood |
Glue WBP High Quality 28mm Container Flooring Plywood |
28*1160*2400mm |
