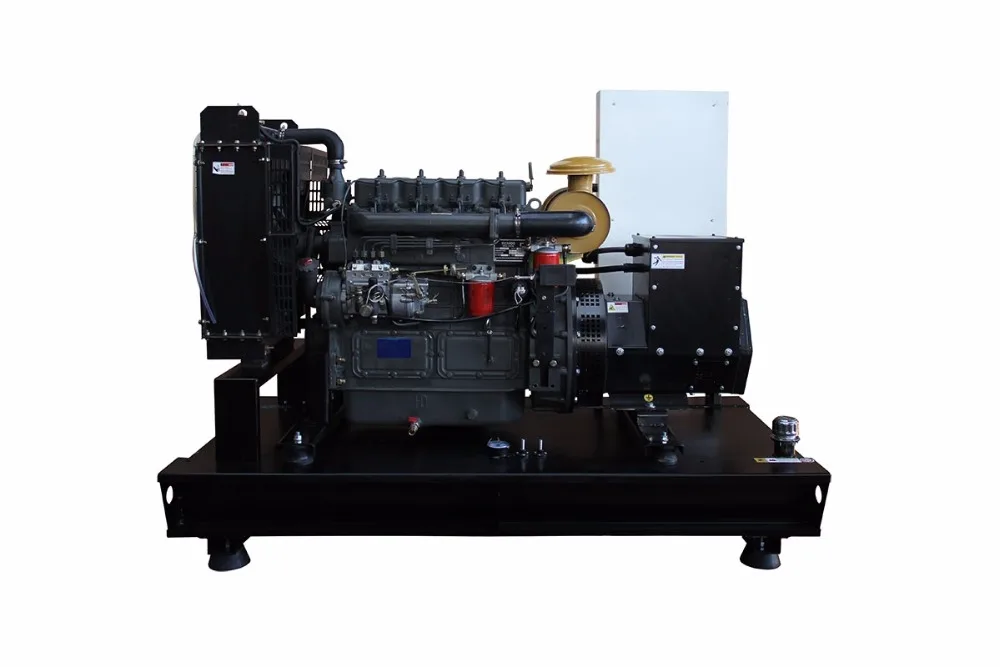

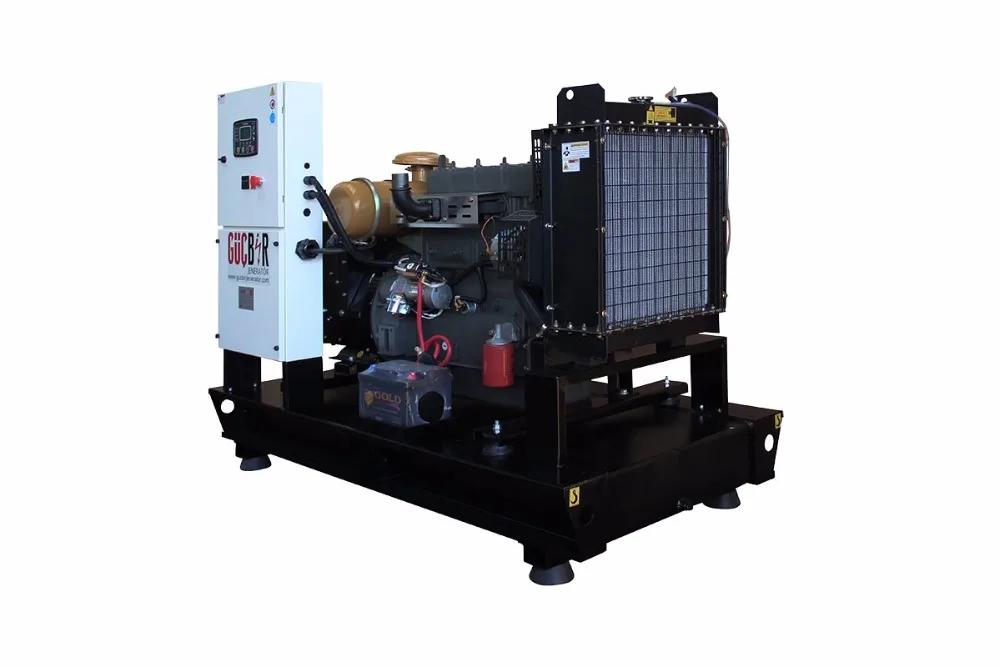

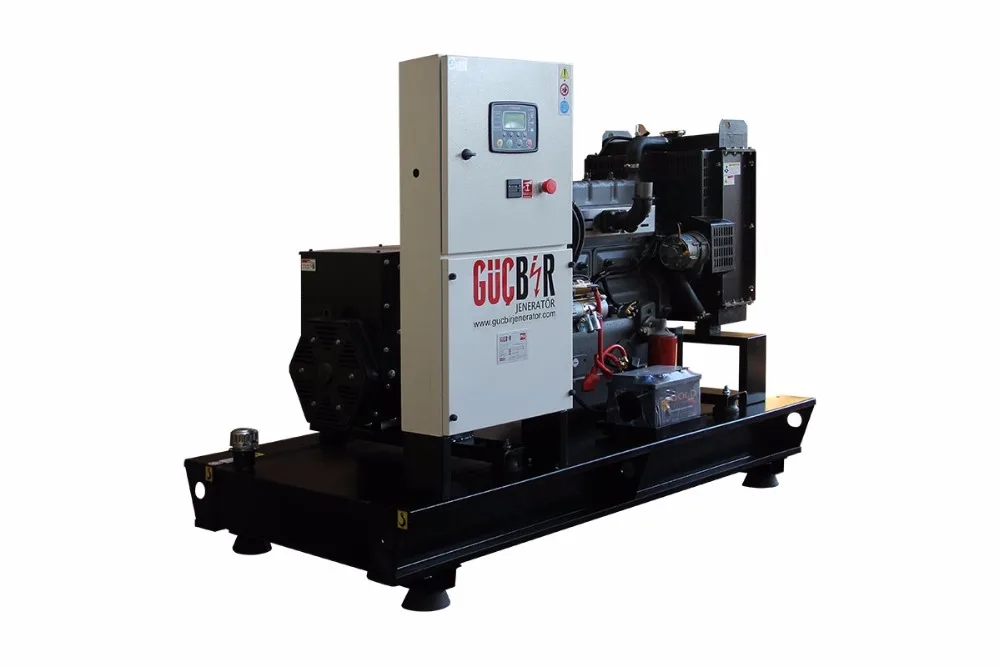

40 kVA Diesel Genset

Product Overview

Description

Model				GJR 40
Group	Power Power Factor	Stand By	kVA	40
			kW	32
		Prime	kVA	36
			kW	28,8
Diesel Engine	Brand			Ricardo
	Model			R4100D
	Type			Direct Injection
	Power, Prime 1500 rpm		kWm	36
	Cylinder Volume		Liter	3,93
	Cylinder Number and Type			4Sira
	Cylinder Order			1-3-4-2
	Aspiration and Cooling			Natural Intake
	RPM		rpm	1500
	Bore and Stroke		mm x mm	100 x 125
	Governor Class			Mechanic / Electronic
	Fuel Consumption At Full Load		g / kW x h	231
	Fuel Tank Capacity		Liter	140
	Oil Capacity		Liter	10
	Water Capacity (Radiator and Engine)		Liter	16
	Exhaust Gas		m2 /min.	6,5
	Amount of Air Intake		m2 /min.	1,86
	Weight		kg	420
Alternator	Brand			Maranello
	Model			M40
	Output Voltage		V	230 / 400
	Frequency		Hz.	50
	Automatic Voltage Regulator			±%0,5
Dimensions	Lenght  (with canopy)		cm.	170 (225)
	Width (with canopy)		cm.	95 (95)
	Height (with canopy)		cm.	145 (160)
	Genset Weight (with canopy)		kg.	650 (850)
