Easy to use and Best selling plug valve yoshitake safety relife valves with High security made in Japan

Product Overview

Description

Easy to use and Best-selling plug valve yoshitake safety relife valves with High-security made in Japan











Feature		Lift   type / Flanged / Ductile iron / Soft seat
Category		Safety   relief valve
Type		Lift   type
Specifications	Application	Air ,   Oil , Cold and hot water , Other non-dangerous fluids
	Pressure   range	0.05 -   1.5MPa("(*1) (*2) Refer to setting pressure range table.")
	Connection	JIS 10K   FF flanged , JIS 16K FF flanged (*3)
	Max.   temperature	150   degree(C)
Material	Valve   case	Ductile   cast iron
	Spring   case	Ductile   cast iron
	Valve	Cast bronze   or Stainless steel (PTFE disc incorporated)
	Valve   seat	Cast   bronze or Stainless steel (PTFE disc incorporated)







JIS 10K   FF flanged
Size	L (mm)	H1 (mm)	Weight (kg)
65A(2 1/2)	120	120	20
80A(3)	130	130	22
100A(4)	160	150	44
125A(5)	200	205	88
150A(6)	210	215	113
JIS 16K FF flanged
Size	L (mm)	H1 (mm)	Weight (kg)
65A(2 1/2)	120	120	20
80A(3)	132	130	22
100A(4)	162	150	44
125A(5)	202	205	88



  [ Dimensional drawing ]



















Staff

Each member of staff handles the process of providing estimates, taking orders, administering delivery dates, and shipping, with great care. Our staff have extensive experience and know how developed through dealings with users from each field, allowing us to offer high quality yet low priced products with added value.





Stocked items
We keep best selling items in stock in order to provide fast service. This gives us a valuable competitive edge. We offer draft designs of systems which give customer satisfaction.



Quality

Once we have grasped the customers needs we supply the most suitable products, these undergo thorough checks to ensure the highest quality.







Special items available
Automatic valves, oil-free treatment, electrolytic polished products, gasket manufactured products, stainless steel manufactured products







Product introduction
We have prepared a line-up of durable and highly efficient products for each kind of plant or facility (iron manufacture, nonferrous metals, chemicals, pharmaceuticals, foodstuffs, semi-conductors and liquid crystal apparatus).



♦Valves and automatic machinery

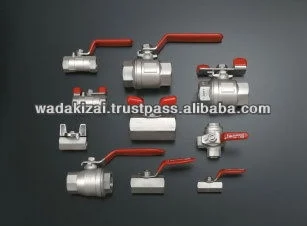

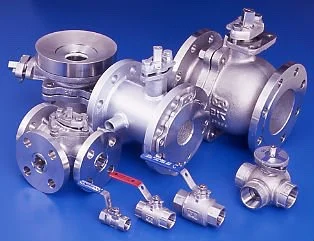

Ball valve	Stainless valve	Stainless tank ball valve
You can use it in chemistry, oil, medicine, a device and a wide field.	Biotechnology, pharmaceutical, foodstuff, semi-conductor, and cleanroom related products	Jacket type three way ball valve, two way ball valveJacket type: a two-layered valve with a jacket fitted to the outside of the body. Retains heat or keeps cool easily











Index of products (handled products)



Valves/automatic machinery, Couplers/flanges, Weighing equipment,Pumps/



tanks/fans/motors, Flexible cables/grouping couplers, Pipes/steel materials/copper pipes, Sanitary/filters, Pneumatic components/hydraulicequipment/moveable couplers
Conducting apparatus/bearings/machinery/industrial materials, etc.
