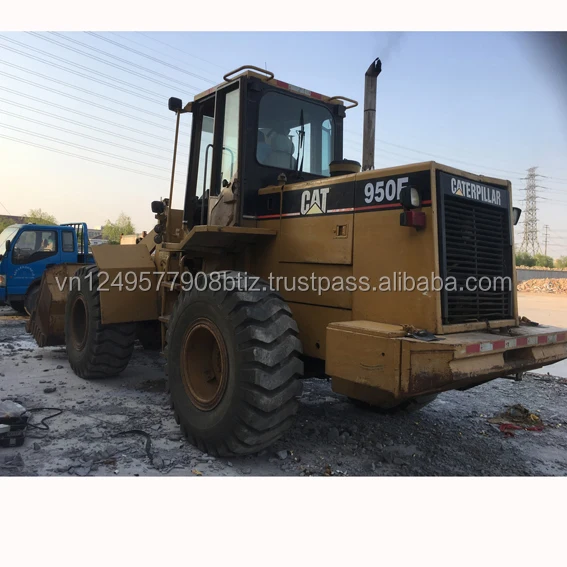

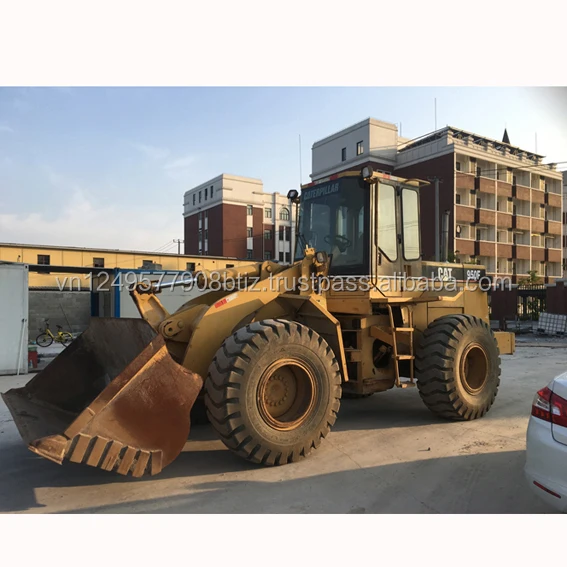

used CATERPILLAR 950F wheel loader

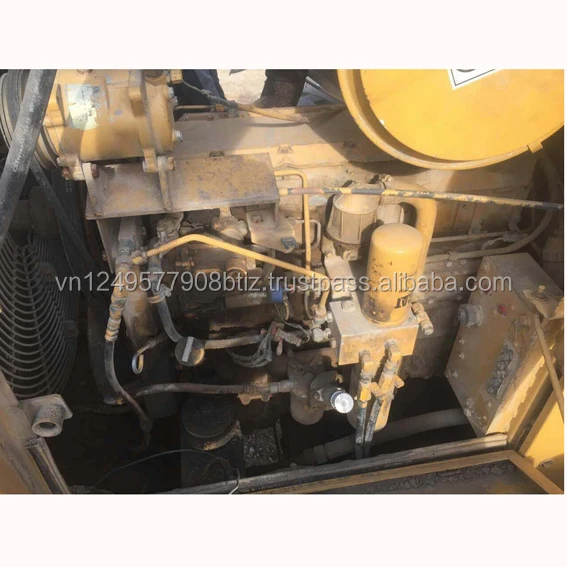

Engine

Make

Caterpillar

Model

3116

Net Power

170 hp

126.8 kw

Gross Power

180 hp

134.2 kw

Power Measured @

2200 rpm

Displacement

402.8 cu in

6.6 L

Number of Cylinders

6

Aspiration

Turbocharged

Operational

Operating Weight

34678.7 lb

15730 kg

Fuel Capacity

58.6 gal

222 L

Hydrauilc System Fluid Capacity

40.4 gal

153 L

Engine Oil Fluid Capacity

5.3 gal

20 L

Cooling System Fluid Capacity

12.9 gal

49 L

Transmission Fluid Capacity

9 gal

34 L

Front Axle/Diff Fluid Capacity

9.5 gal

36 L

Rear Axle/Diff Fluid Capacity

9.5 gal

36 L

Static Tipping Weight

23243.3 lb

10543 kg

Turning Radius

21.1 ft in

6419 mm

Operating Voltage

24 V

Alternator Supplied Amperage

50 amps

Rear Axle Oscillation

26 degrees

Tire Size

23.5-25 12PR

Transmission

Type

Planetary powershift

Number of Forward Gears

4

Number of Reverse Gears

4

Max Speed - Forward

24.4 mph

39.3 km/h

Max Speed - Reverse

26.7 mph

43 km/h

Hydraulic System

Relief Valve Pressure

3000 psi

20684.3 kPa

Pump Flow Capacity

62.6 gal/min

237 L/min

Raise Time

6.6 sec

Dump Time

2.2 sec

Lower Time

3 sec

Bucket

Breakout Force

35801 lb

159.3 kN

Dump Clearance at Max Raise

9.6 ft in

2941 mm

Bucket Width

9.2 ft in

2811 mm

Bucket Capacity - heaped

3.8 yd3

2.9 m3

Bucket Capacity - struck

3.3 yd3

2.5 m3

Dimensions

Length with Bucket on Ground

25.2 ft in

7689 mm

Width Over Tires

9 ft in

2753 mm

Height to Top of Cab

11.5 ft in

3520 mm

Ground Clearance

1.6 ft in

474 mm

Wheelbase

10.4 ft in

3180 mm

Hinge Pin - Max Height

13 ft in

3953 mm

Reach at Max Lift and Dump

3.6 ft in

1103 mm
