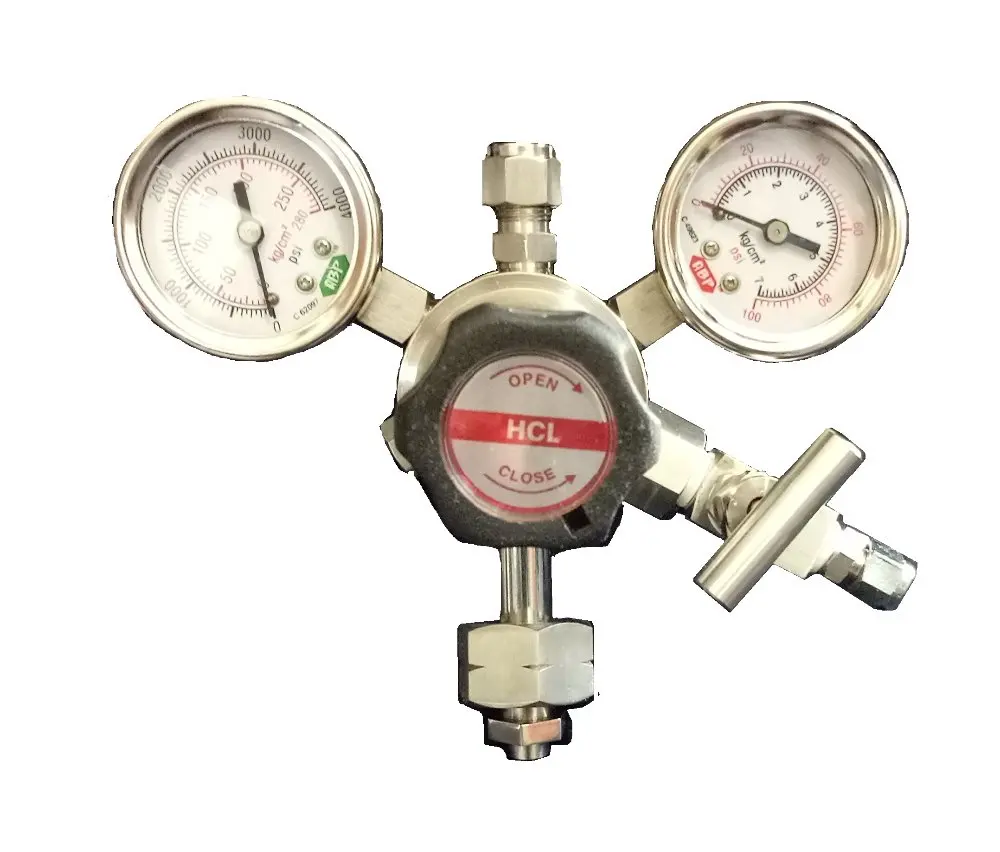

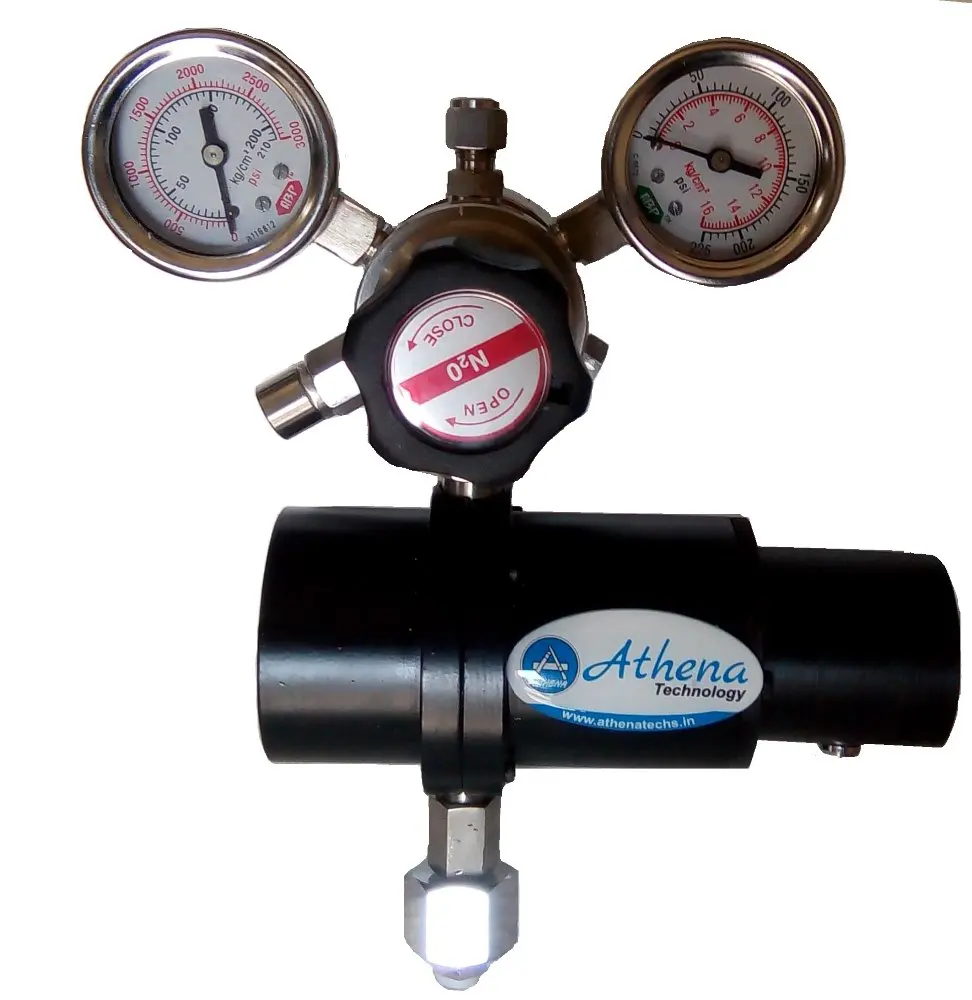

Gas Cylinder Two Stage Pressure Regulator
Gas Cylinder Two Stage Pressure Regulator
Gas Cylinder Two Stage Pressure Regulator
Gas Cylinder Two Stage Pressure Regulator

Gas Cylinder Two Stage Pressure Regulator

Share on (50034432096):


Price:

Quantity:


Product Overview

Description


Chlorine Gas Regulator
Acetylene Gas Regulator
Helium Gas Regulator
SO2 Gas Regulator
Argon Gas Regulator
Methane Gas Regulator
Ammonia Gas Regultaor
HCL gas regulator

Athena manufacturers various kinds of Regulators. Athena Regulators have been designed to meet the demand of High Purity Corrosion Resistance Product Specially Suited for low level PPM Moisture

Two types of Cylinder Regulators available Brass Chrome Plated body with SS diaphragm and SS body with SS diaphragm.

Regulator consists of inlet & outlet pressure gauges. Inlet pressure gauge shows the total pressure of cylinder and outlet pressure gauge shows regulated pressure.

High pressure piston type Regulator & Regulators for corrosive gases like Ammonia, Clorine, etc. are also available.

Inlet pressure range: 0 - 240 kg/cm²

Outlet pressure range: 0 - 14 kg/cm² in diaphragm type

Outlet pressure range: 0 - 40, 0 - 70, 0 - 100 kg/cm² in piston type



Regulator Specifications :

Type

Single-stage / Double-stage

Material of construction

SS 316 / Brass Chromplated

Diaphagram

SS 316 with Teflon Seat

Pressure Gauges

SS 316 / Brass

Inlet Pressure

0-210 kg/cm², 0-280 kg/cm²

Outlet Pressure

0-14 kg/cm², 0-16 kg/cm²/ as per requirement

Flow (LPH)

300 (max)

Gas Services

Air, N2, H2, HE, Acetylene, Argon, N2O, Methane,



Amonia, HCL, Chlorine, SO2, Isobutene & other gases

Outlet Connection

1/4, 1/8 Swage lock / Hose

Inlet Connection

As per requirement of Gas





Additional Information:

  • Minimum Order Quantity: 1 Unit
