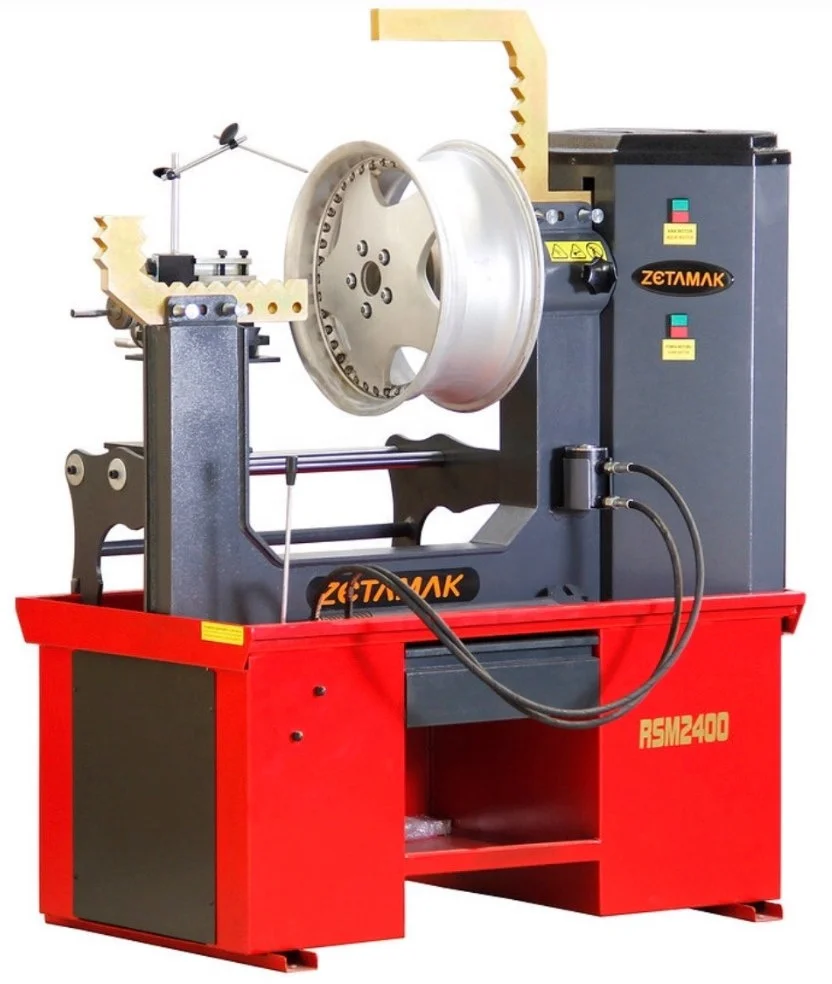

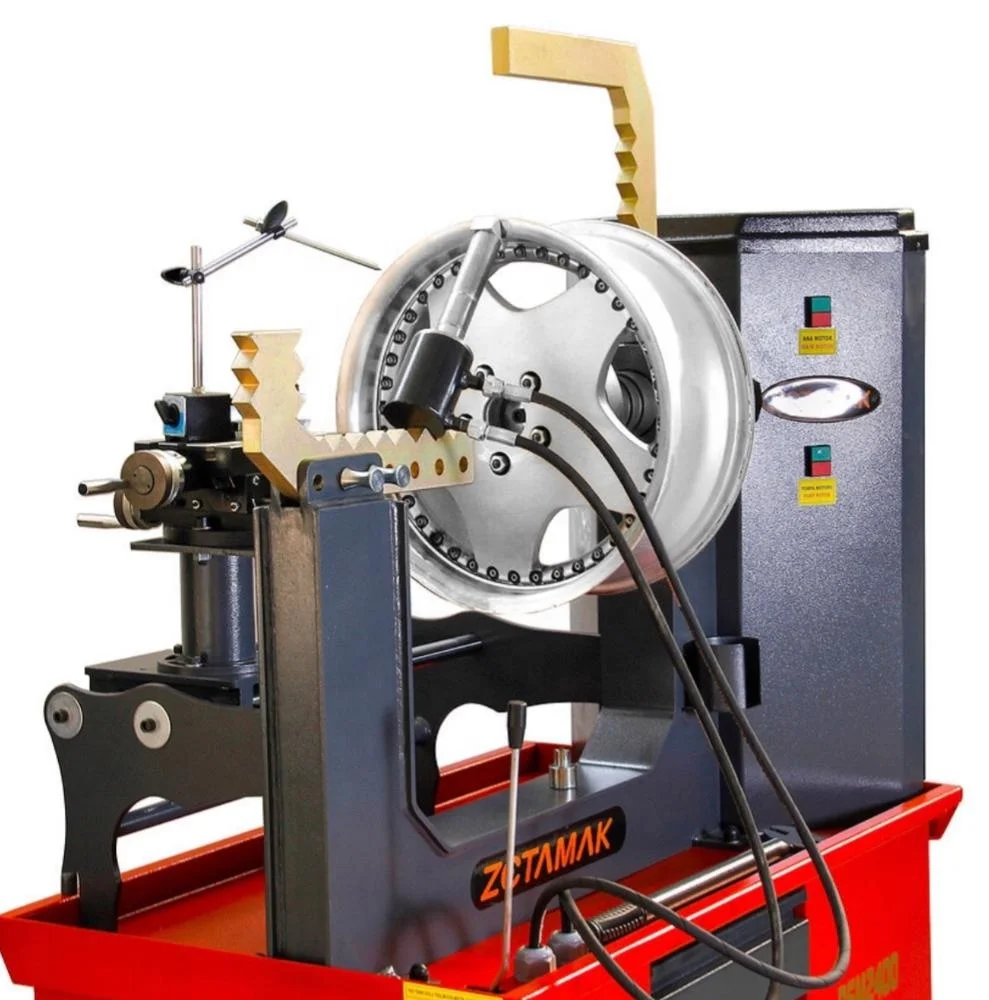

Rim Straightening Machine with Lathe System

Product Overview

Description

RSM2200 / RSM2400 /  RSM2600 / RSM2800 / RSM1430

 RIM  STRAIGHTENING  MACHINE

With Lathe System



MOTOR  SPECIFICATIONS



Mechanic Motor........................ 0,55Kw - 1400 rpm, 0,75 hp - 7,3 Ampere

                                                3 phase - single phase // 380 V - 220 V

Hydraulic Motor........................ 0,75Kw - 900 rpm, 1 hp - 8,7 Ampere

                                                3 Phase - single phase // 380 V - 220 V

Sound Level.............................35 db



 STANDARD ACCESSORIES LIST

1. 18 pcs rim attaching center

2. 1 pc (mihengir) metal pointer

3. 6 pcs press tips (in different forms)

4. 3 pcs support axis for press tips

5. 1 pc lever

6. 1 pc lathe pen

7. 1 pc upper support

8. 1 pc lower support

9. 4 pcs Support pins

10. Flange nuts and bolts

11. Allen wrench 8 & 10



ADVANTAGES  FOR THE USERS

ZETAMAK Rim Straightening Machines  with  5 ton power capacity of Hydraulic Pump, Molded flange, Lathe and necessary accessories / equipment  are used to straighten defected rims from 10" to 30" made up of alloy, chrome, mag and sheet iron wheels from  10" to 30".

-  CE certified

-  All parts have a one-year warranty.

-  High quality electric box and cabling.

-  Reliable Hydraulic system.

-  Spare Parts support with no charge.

-  If requested OEM production is also possible.
