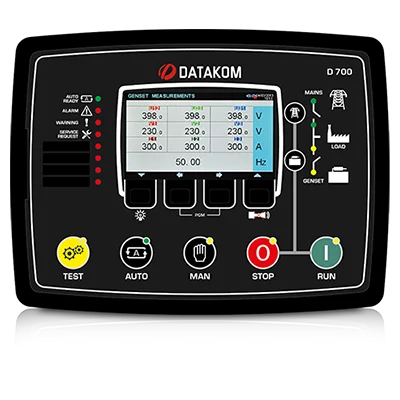

Controller Module

• 4.3” 480x272pixels color LCD

• Diesel and gas genset support

• Supports up to 48 gensets

• Automatic learning/self adjust

• Direct governor & AVR control

• Voltage and phase matching

• kW & kVAr load sharing

• Multiple topologies

• 6xCT, true mains metering

• True soft transfer in both ways

• Peak Lopping / peak shaving

• Mains de-coupling protection

• R.O.C.O.F protection

• Vector shift protection

• Reverse power protection

• Over/under freq. protection

• Over/under voltage protection

• Smart load management

• Smart genset sequencing

• Run/stop priority support

• Equal aging of gensets

• Base load (power export)

• Unmanaged distributed power export support

• AVR & GOV droop support

• Dead bus sensing

• 400Hz operation support

• 400 event logs, full snapshot

• All parameters front panel

  editable

• 3 level configuration password

• 128x64 graphical LCD display

• Downloadable languages

• Waveform display of V & I

• Harmonic analysis of V & I

• Synchroscope & check synch

• 12 configurable digital inputs

• Inputs expandable to 44

• 8 configurable digital outputs

• Outputs expandable to 40

• 7 configurable analog inputs

• Both CANBUS-J1939 & MPU

• 3 configurable service alarms

• Multiple automatic exerciser

• Weekly operation schedule

• Dual mutual standby with equal aging of  gensets

• Manual “speed fine adjust” on selected ECUs

• Automatic fuel pump control

• Disable protections feature

• Excess power protection

• Overload IDMT protection

• Load shedding, dummy load

• Multiple load management

• Current unbalance protection

• Voltage unbalance protection

• Fuel filling & fuel theft alarms

• Battery back-up real time clock

• Idle speed control

• Battery charge run enabled

• Combat mode support

• Multiple nominal conditions

• Contactor &  MCB drive

• 4 quadrant genset power counters

• Mains power counters

• Fuel filling counter

• Fuel consumption counter

• Modem & ethernet diagnostics

• Configurable through USB,

  RS-485, Ethernet and GPRS

• Free configuration program

• Allows SMS controls

• Ready for central monitoring ethernet & GPRS

• Mobile genset support

• Automatic GSM geo-location

• GPS connectivity (USB&RS232)

• Dynamic DNS support

• Easy USB firmware upgrade

• IP65 rating with standard gasket
