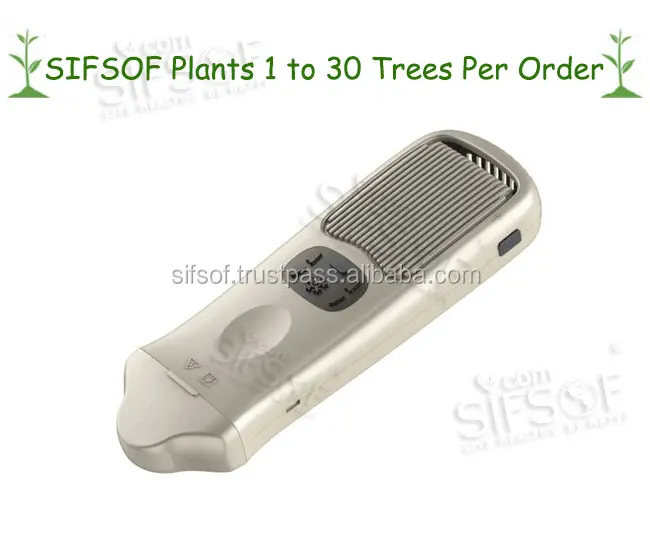

Ultrasound Therapy Wifi, Ultrasound Scanner Product , SIFULTRAS 8.5 1 x Convex 3.3 MHz for Gynecologist

Product Overview

Description





> Ultrasound Therapy Wifi, Ultrasound Scanner , SIFULTRAS-8.5 + 1 x Convex 3.3 MHz for Gynecologist

--> Ultrasound Therapy Wifi, Ultrasound Scanner , Diagnostic Medical Sonography SIFULTRAS-8.5 + 1 x Convex 3.3 MHz R50

--> Wifi Portable Ultrasound Price , Impressive New Type Wireless Ultrasound Probe, Portable Ultrasound Scanner SIFULTRAS-8.5 + 1 x Convex 3.3 MHz R50

Multi head Ultrasound Scanner Wireless black and white pocket Ultrasound probe.

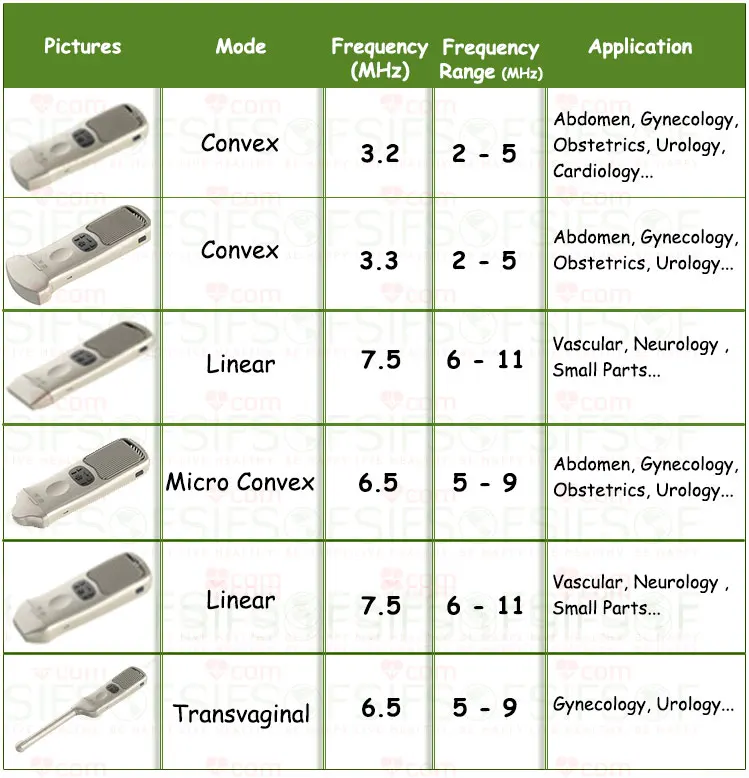

COMES WITH ONLY ONE OF THESE HEADS :

1. Convex – 3.2 MHZ R50
2. Convex – 3.3 MHz R50
3. Linear – 7.5 MHz L40
4. Micro Convex – 6.5 MHz R15
5. Linear – 7.5 MHz L25
6. Transvaginal – 6.5 MHz R10

MULTI HEAD ULTRASOUND SCANNER WIRELESS BLACK AND WHITE POCKET ULTRASOUND PROBE SIFULTRAS-8.5 COMES WITH ONLY ONE OF THESE HEADS :

-------------------------------------------------------------------------------

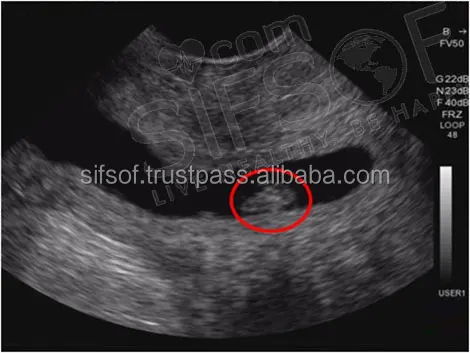

Scan Result











 --> Technical Specifications :

Platform : Android, Window

Modes : B, B&M, 2B, 4B

Gray level : 256

- Linear - Convex

- Transducer Frequency : 2-11MHz

- 64 Elements - 128

- Elements Depth : 40mm ~ 200 mm

Max scanning Depth : 310mm Imaging Processing

Pre-processing : Cloud processing technology Fine blood flow imaging, high sensitivity Gain Dynamic range Persistence M Soften Noise suppression

Post-processing : Image enhancement Gray map Pseudo color map Left/right reverse Up/down reverse Function

Operation : WiFI connect to any Android or Window System XP. 7. 8. 10

Cine-loop : Based on the memory of the Android or windows device.

Zoom : Max 10 times



--> Measurement and calculation:

B mode : Distance, angle, area, volume, trace length, distance ratio, area ratio, histogram M

mode :Distance, time, slope, heart rate Color / Power / PW

mode : D velocity, D trace, PS/ED

Application package : Abdomen, Small parts, Vascular, Obstetrics, Gynecology, Cardiology, Neurology,Urology, Orthopedics, Anesthesia, Others. Power supply : 12V 1.5A

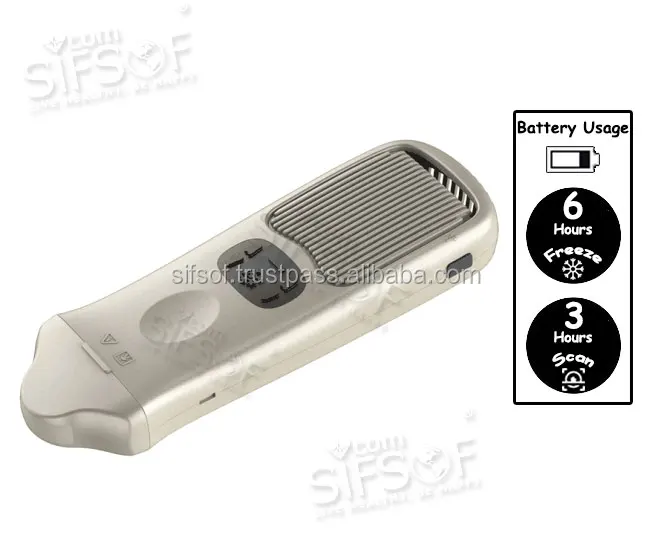

Battery lifetime : 6-8 hours

Net weight : About 365g

Waterproof level : Ipx6 Multiple frequency probes



--> Standard Configurations :

Convex Probe Power Adapter Android and Windows applications Abundant measurement & calculation software packages



--> Standard configuration :

Probe main host (17cm*5.8cm*2.4cm)

->Application Range:



In emergency clinical, hospital ward inspection, community clinical and outdoor inspect, small hospitals in rural areas, in companies, schools & sport centers, personal usage : rent or buy, easy carried & operated.
