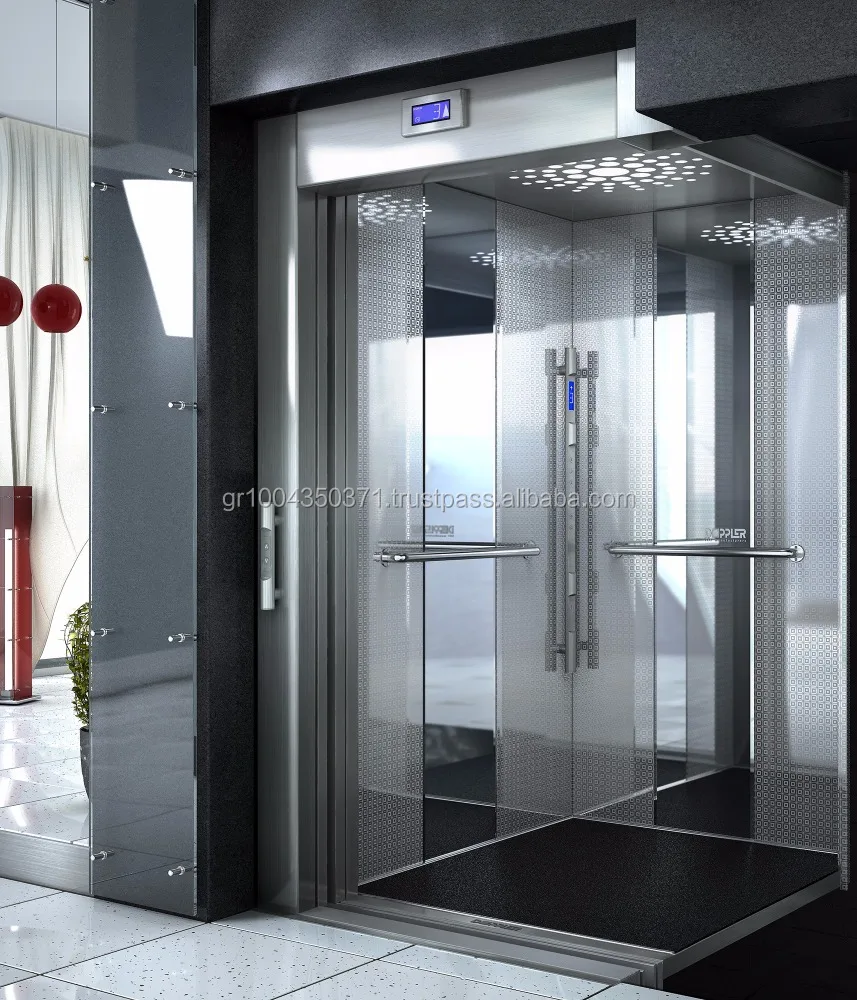

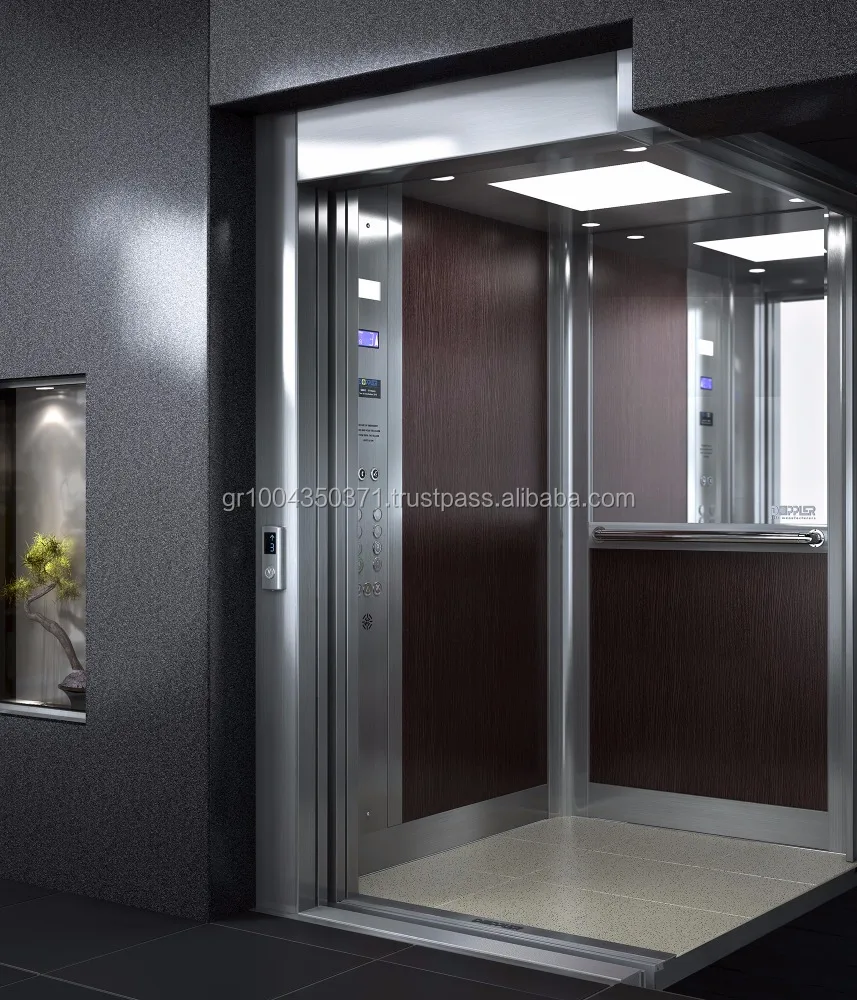

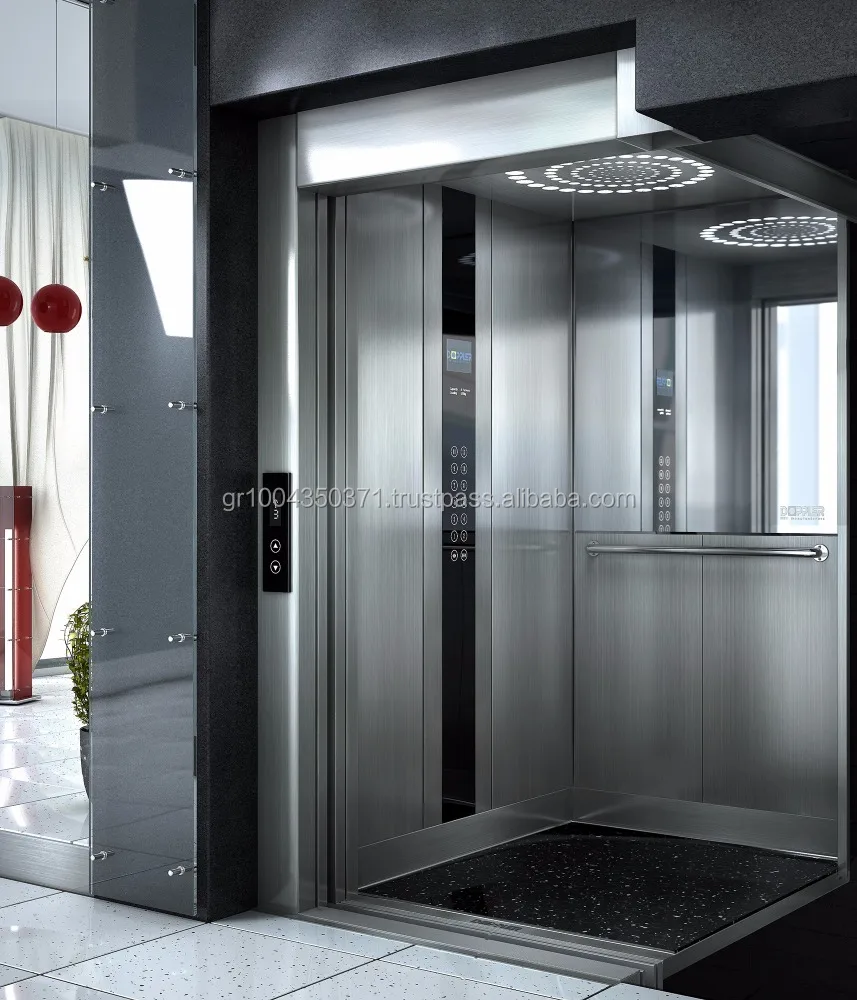

Hospital Traction Passenger Elevator

Safe and Sound... less!

When it comes to hospitals, every second counts.
DOPPLER meets the highest expectations through state-of-the-art technology.

DOPPLER Hospital Lifts are the right choice for the demanding needs of medical facilities. Emergency situations, continuous traffic of patients, doctors, nurses and visitors, transportation of bulky beds, wheelchairs and medical equipment are everyday challenges that demand reliable and robust solutions.

Our hospital lifts offer high safety, great functionality, excellent riding comfort and cost reduction by energy saving systems along with modern design.

Rated load	300 Kg	450 Kg	630 Kg	1000 kg
Max. Speed	1 m/s	1 m/s	1 m/s	1 m/s
Min. Pit  (EN81-20)	1.100 mm	1.100 mm	1.100 mm	1.150 mm
Min. Pit  (Out of norms)	750 mm	750 mm	750 mm	850 mm
Min. Headroom (EN81-20)	3.670 mm	3.670 mm	3.670 mm	3.700 mm
Min. Headroom (Out of norms)	3.500 mm	3.500 mm	3.500 mm	3.550 mm
Max Travel	30.000 mm	30.000 mm	30.000 mm	30.000 mm
Standard Shaft	1250x1350	1350x1600	1450x1750	1800x1950 1500x2450
Standard Cabin	900x1000	1000x1250	1100x1400	1400x1600 1100x2100
Standard Door	700mm 2PT	700mm 2PT	800mm 2PT	900mm 2PT 800mm 2PT

Products Show

Side Walls

Laminate 313

Laminate 381

Laminate 388

Laminate 1379

Laminate AB810

Laminate 421

Side Walls - Inox

Staineless Steel - Leather

Stainless Steel - Dama

Staineless Steel - Sarine

.

Floors

Mipolam 0360 B Plastic Floor

Mipolam 1138 Sand Plastic Floor

Plastic Floor G424

Tile GP38

Granite Starlight Blue

Granite Starlight White

False Ceilings

For more Falce Ceiling Styles, you can visit our website:

//doppler.gr/en/products/elevators/accessories/false-ceilings/

False Ceiling FC1

False Ceiling FC4

False Ceiling FC5

Customer Photo

Greece - St Loukas Hospital

Scotland - Care Home

FAQ

Q: Are you trading company or manufacturer ?

A: We are a European factory, located in Greece .

Q: How long is your delivery time?

A: Generally it is 6-8 weeks.

Q: Are there any other side wall and floor options?

A: Yes, we offer a wide variety of options. You can visit our webpage www.doppler.gr for more information
