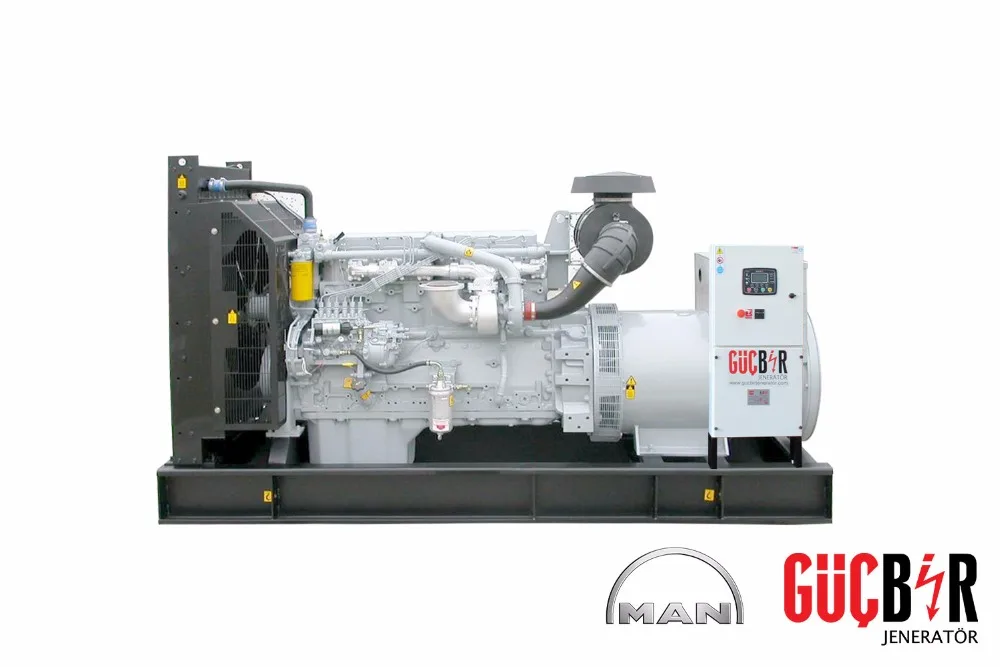

510 kVA Diesel Genset

Product Overview

Description



Model				GJM510
Group	Power Power Factor	Stand By	kVA	510
			kW	408
		Prime	kVA	463
			kW	370

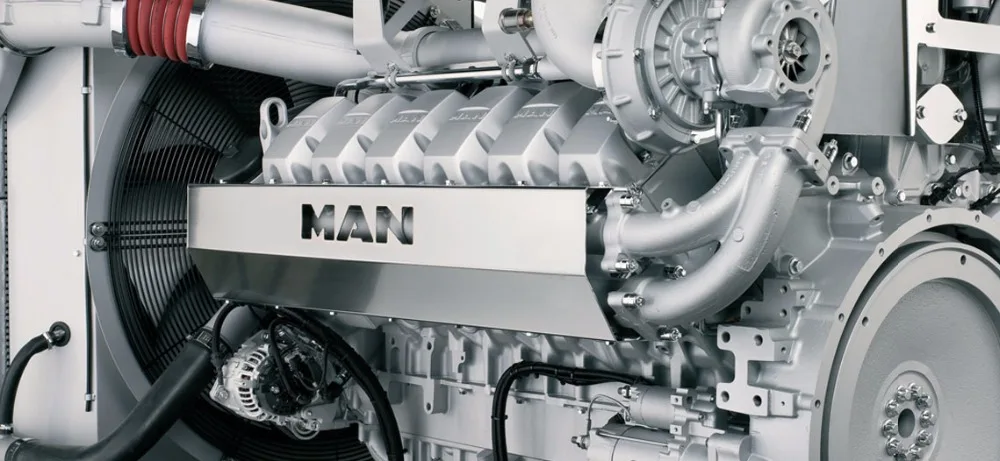

Diesel Engine	Brand			MAN
	Model			D2676 LE 223
	Type			Direct Injection
	Power, Prime 1500 rpm		kWm	495
	Cylinder Volume		Liter	12,4
	Cylinder Number and Type			6 in-line
	Cylinder Order
	Aspiration and Cooling			Turbo charger with charge air cooling-Water circulation by means of attached rotary pump and front end combination radiator
	RPM		rpm	1500
	Bore and Stroke		mm x mm	126 x 166
	Governor Class
	Fuel Consumption At Full Load		g / kW x h
	Fuel Tank Capacity		Liter
	Oil Capacity		Liter
	Water Capacity (Radiator and Engine)		Liter
	Exhaust Gas		m2 /min.
	Amount of Air Intake		m2 /min.
	Weight		kg
Alternator	Brand			Maranello
	Model			M510
	Output Voltage		V	230 / 400
	Frequency		Hz.	50
	Automatic Voltage Regulator			±%0,5
Dimensions	Lenght  (with canopy)		cm.	330 (450)
	Width (with canopy)		cm.	135 (135)
	Height (with canopy)		cm.	190 (240)
	Genset Weight (with canopy)		kg.	3300 (4300)
