With their touch-display and lateral insert holders, which have proven their worth for decades, the V7 rank as universal instruments for the workshop.
- Measuring ranges 400 to 1800 mm
- Simple and easy-to-use graphic interface
- Electronically adjustable measuring force
- Manual or motorized displacement
- 2d, programming, statistics
- Large range of accessories
- All possible adjustments without tools
- Interfaces RS232 and USB
- Wireless data transfer (optional)
Examples of applications

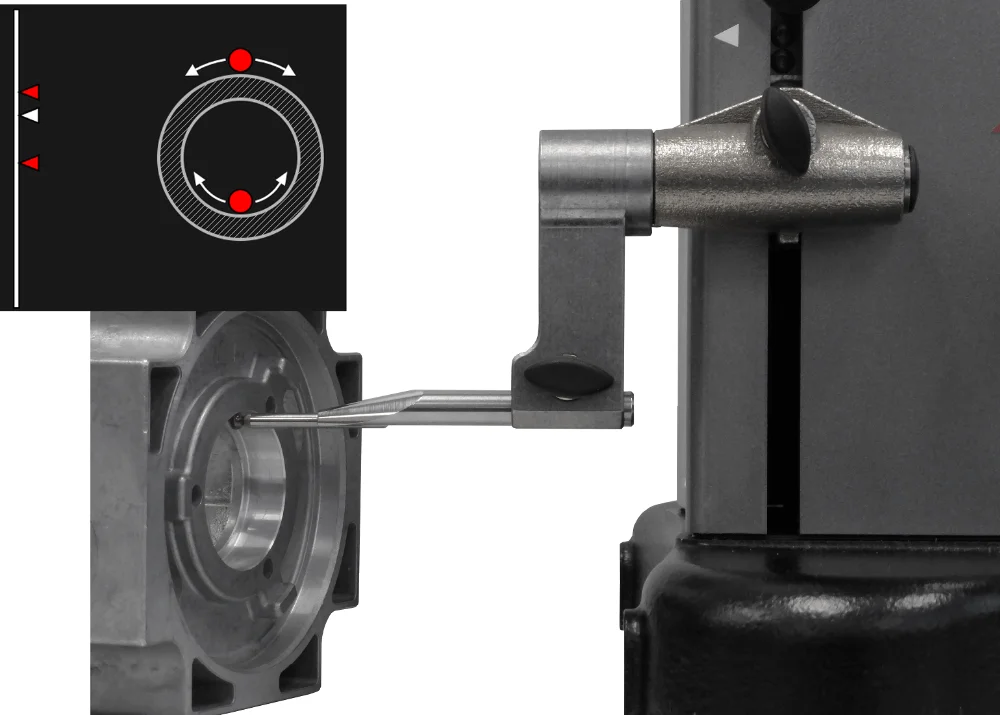

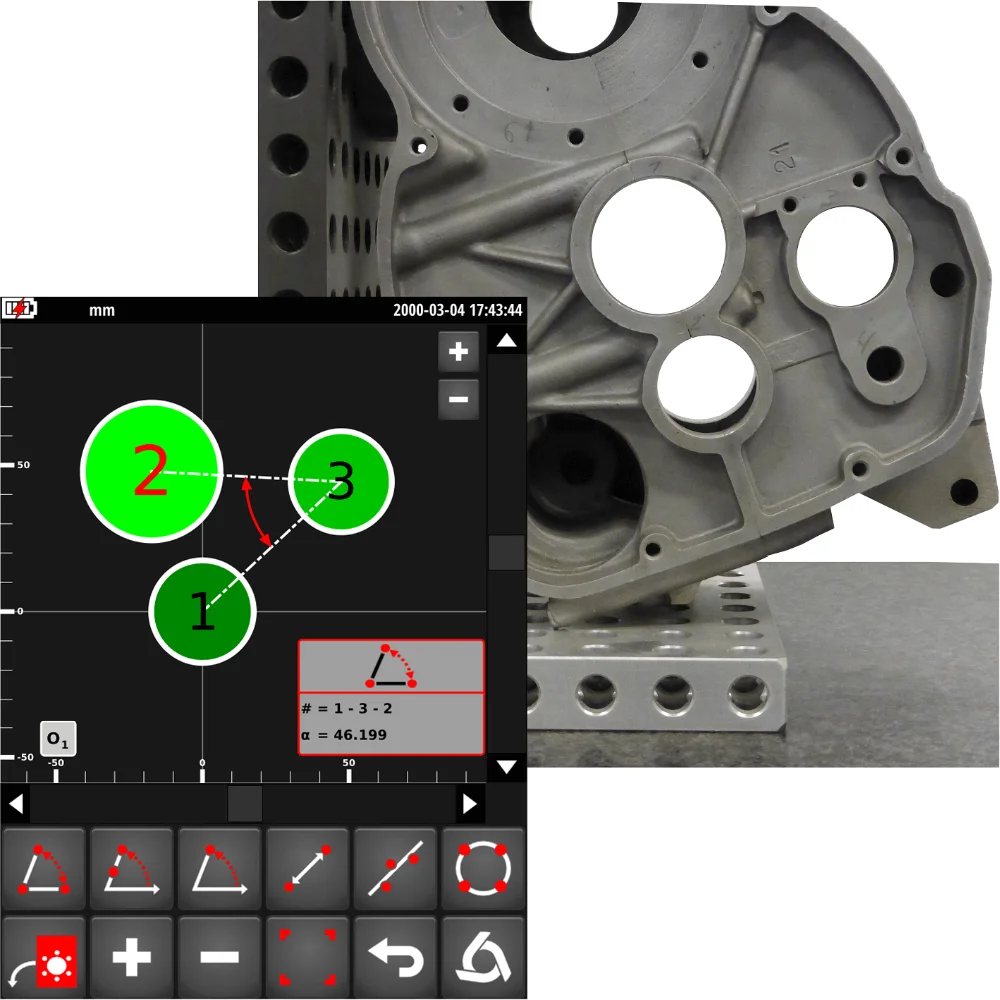

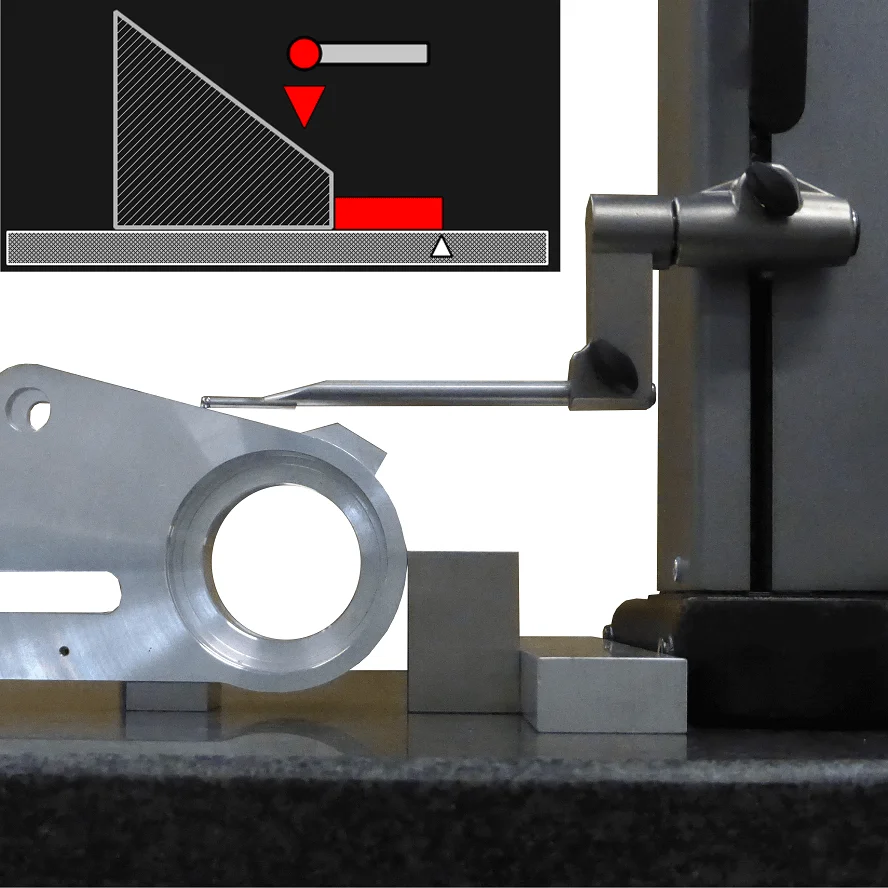

Diameter and centerline Small diameters measurements 2D measurement with easy
measurement with graphical help with insert Ø 4 mm graphical interface
Technical specifications
| V7 | 400 | 700 | 1100 | Â 1800 | |
|---|---|---|---|---|---|
| Measuring range | mm (in) | 407 (16) | 711 (28) | 1110 (44) | Â 1810 (71) |
| Measuring range with extension | mm (in) | 719 (28) | 1023 (40) | 1422 (56) | Â 2122 (83) |
| Max. permissible errors, BMPE | µm | 2 + L(mm)/400 | 2.5 + L(mm)/300 | ||
| Repeatability, RMPE (2s) | µm | 1 (Ø:2) | |||
| Frontal squareness deviation, SMPE | µm | 5 | 8 | 11 | 25 |
| Maximal Resolution | mm (in) | 0.0001 (0.00001) | |||
| Measuring force | N | 0.75 ÷ 1.5 | |||
| Autonomy | h | 12 | |||
| Interfaces | USB / RS232 | ||||
| Air cushion | Â | Yes | |||
| Weight | kg | 22 | 25 | 34 | Â 41 |
The above values have been determined according to ISO 13225 with the standard measuring insert (TA-MI-101).
