Self Adhesive BOPP film

Product Overview

Description

The world's best and only one Self-Adhesive OPP film "FSA"





FSA is the only self-adhesive OPP film in its industry made by using OPP manufacturing method,providing various properties which other materials are unable to offer.



 |||| Product Features ||||

> FSA feature 1. Heat resistance



FSA is made from PP with high resistance properties.

Through biaxially oriented process,it has acquired heat resistance of 160C° and it does its stuff in the processes such as annealing,printing,pressing,etc.to which heat is applied.



•FSA surface status after 30-minute heating

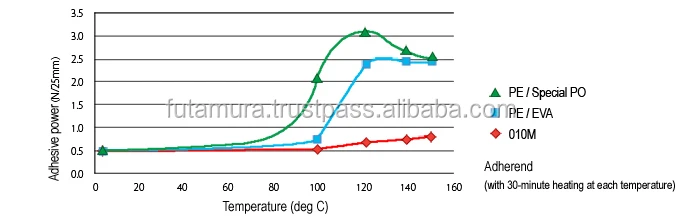

•FSA adhesive strength rise data

 The heat resistance is high.So,adhesive strength rise caused by temperature can be suppressed low.



◊FSA heat resistance is able to use effectively for the appliction of IML(In Mold Lamination)and ITO(Indium Tin Oxide)dielectric film.





> FSA feature 2.  Stiffness,easy-to-cut



Since it is an OPP film,FSA is firm,resilient,and hard to be elongnated.

"Filamentous resin residues",a phenomenon specific to resin is hard to occur and easy-to-cut property is provided in punching process using Thomson blade.



> FSA feature 3.  Low contamination



Being given self-adhesiveness by elastomer,FSA has no glue residues caused by an adhesive that would happen in adhesive coated films.



> FSA feature 4.  Applicable to products in broad with

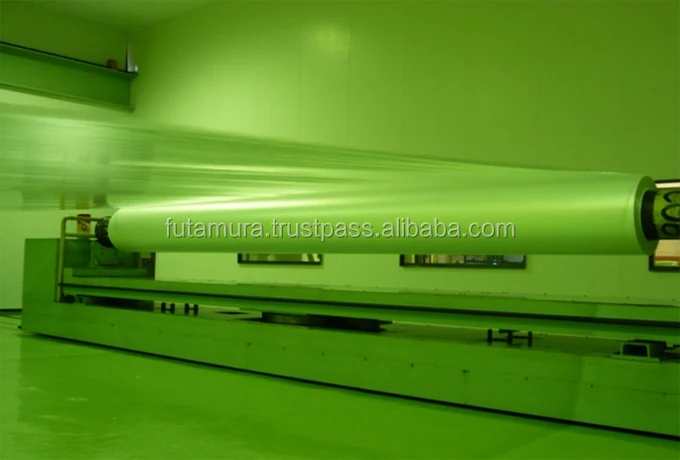

FSA is manufactured 5,000 mm in width in mother roll and available for products up to 2,400 mm wide.

(∗Excluding certain products)

F

> FSA feature 5.  Wide variety of adhesive strengths



The adhesive strength of FSA is available from 0.1N(low adhesion) to 3.0N(strong adhesion) and it is used as protective film for a wide variety of materials such as hard coat film,resin boards,and metal plates,prisms and diffusion boards,etc.



 |||| Product Lineup ||||



Surface	Grade	Thickness (μ)	Adhesive strength (against acryl)	Maximum width\u009D (mm)
Matt	010M	30	0.1N/25mm	2,400
	020M		0.2N/25mm
	050M		0.5.0N/25 mm
	100M		1.0N/25 mm
	150M		1.5.0N/25 mm
	300M		3.0.0N/25 mm	1,500
Clear	010C	30	0.1N/25mm	please ask us
Colored (blue)	010B	30	0.1N/25mm	2,400
	020B		0.2N/25mm



Examples of Adherend



Optical film	ITO film,  Anti-reflection film, etc.
Plastic plate	PMMA,Polycarbonate, polyester,  etc.
Metal plate	Stainless, Aluminum, etc.
Other	Glass plate, Hard coated surface,     Print circuit board, etc.
