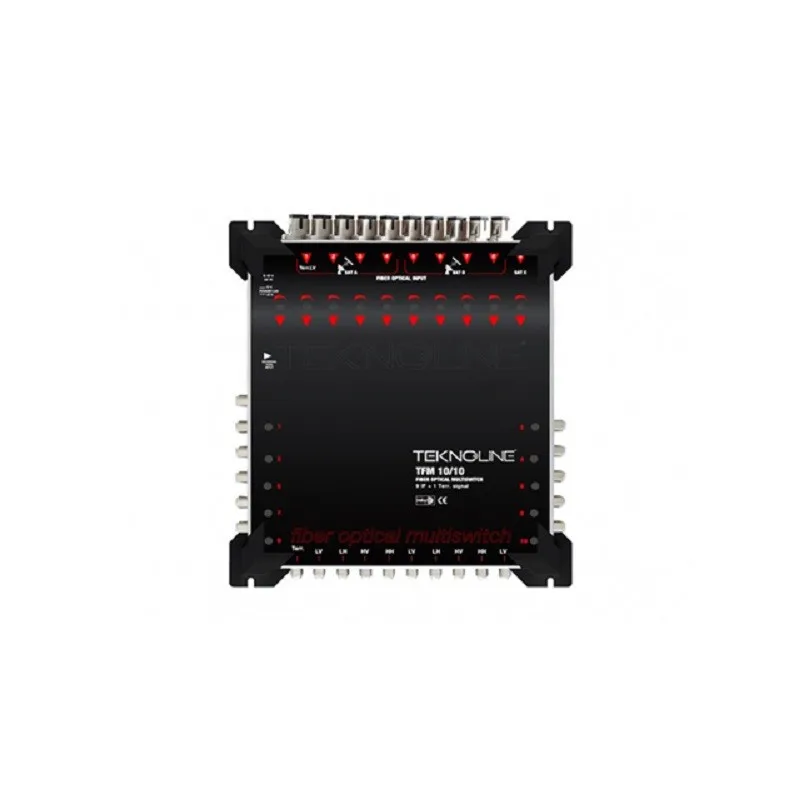

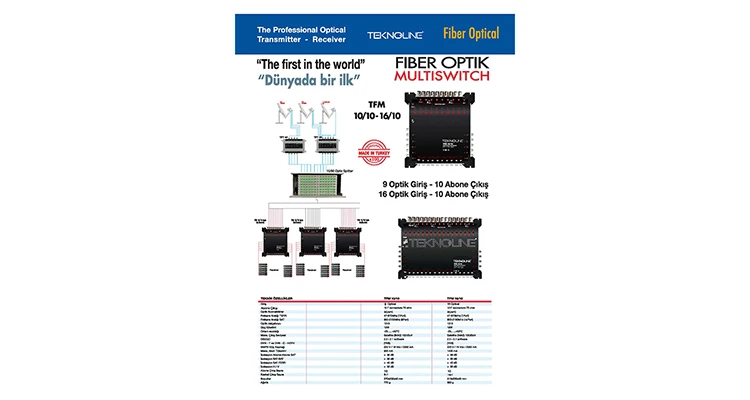

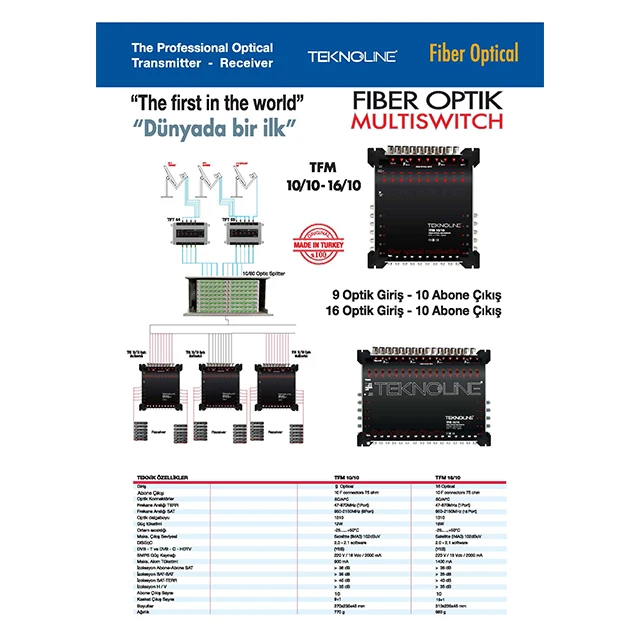

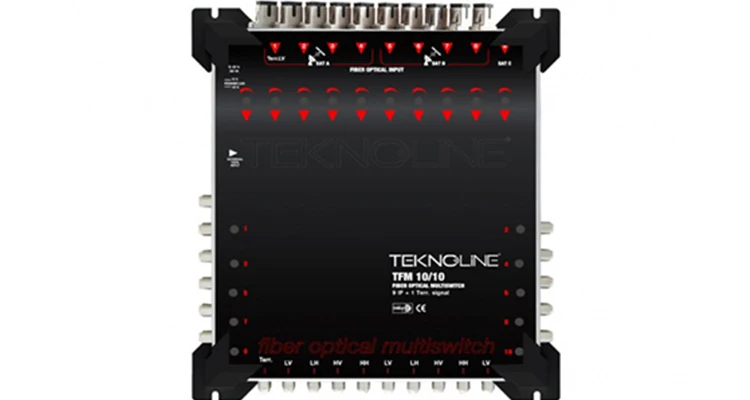

High Quality OPTIC MULTISWITCH (2SAT 1MDU 1TERR) TFM1010

2 SAT & + 1 TERR Fiber Optik Multiswitch
Optic multiswitch system over 9 fiber optic core
Optic receiver and multiswitch are in all-in-one box
Gain adjustment for each input
Voltage Led indicators
High isolation, compact, Plug & Run
High performance and special power supply
External TERR Input
Input\t9 SC/APC (Full Band) Optic Connector
Subscriber Outputs\t10 F Connectors (75 ohm)
Satellite Frequency Range\t950-2150 Mhz
Frequency Range\t47-870 MHz
Gain Adjustment \t0-20dB
Optic Wavelength\t1310nm
Max. Optic Input Power\t2 mW
Sat-Sat Isolation\t> 35dB
Sat-Terr Isolation\t> 40dB
Isolation between Subscriber Outputs\t> 36dB
Power Supply\t12V-5V 3000mA / 18W
Operating Temperature \t-25 ... +50Cº
Dimensions\t270x235x58mm
Weight\t730gr
