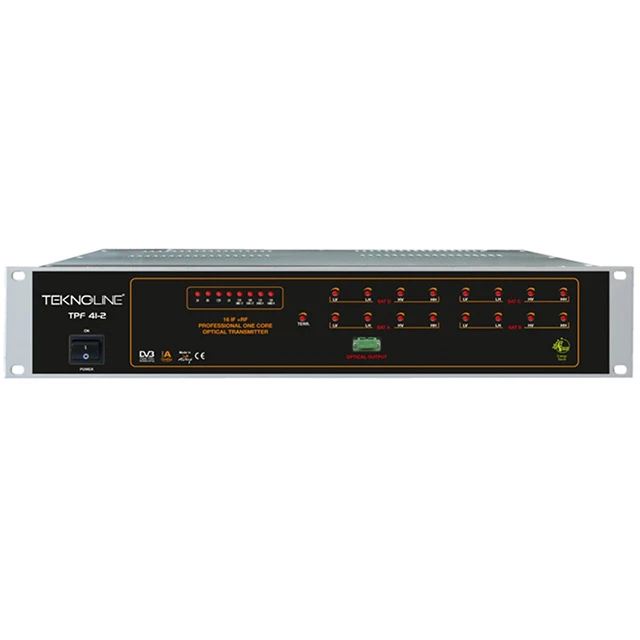

OPTIC TRANSMITTER (4 SAT 1TERR) TPF41 4 SAT 1 TERR (16IF 1 TERR) Single Core Fiber Optical Transmitter

OPTIC TRANSMITTER (4 SAT 1TERR) TPF41 4 SAT 1 TERR (16IF 1 TERR) Single Core Fiber Optical Transmitter

Category: >>>
Supplier: TEKNOLINE TEKNOLOJIK SISTEMLERI ANONIM SIRKETI [Turkey]TEKNOLINE

Price:RUB 173,776.76

Quantity:

Product Overview

Description

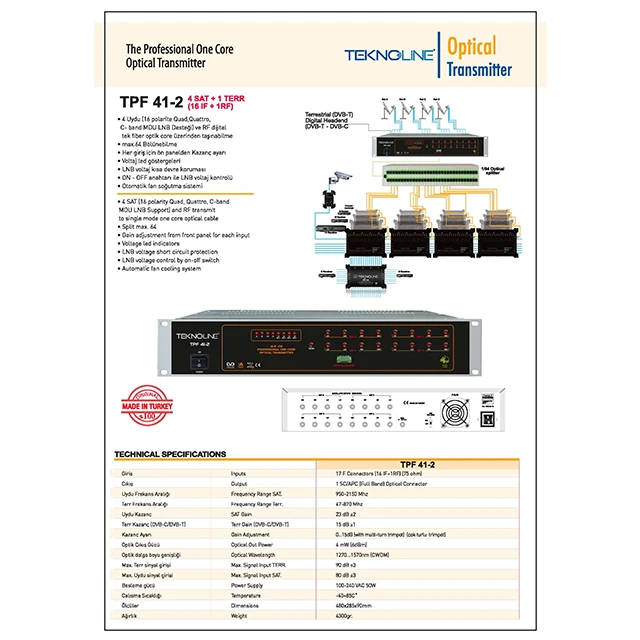

4 SAT + 1 TERR (16 IF + 1 RF) Transmitter - Teknoline

4 SAT + 1 TERR (16IF + 1 TERR) Single Core Fiber Optical Transmitter

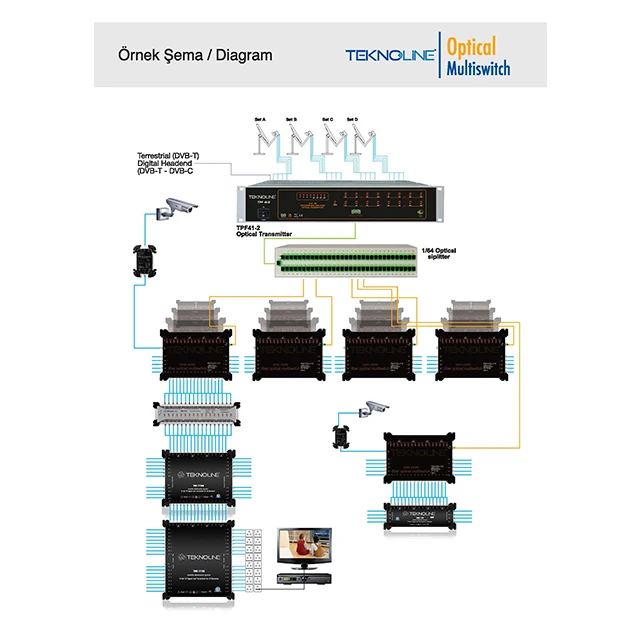

4 Satellite (16 Polarite Quad, Quattro, C-Band, MDU LNB Support) and carrying over RF Digital single fiber core
Max. 64 Divisibility
Gain adjustment for each input from front panel
Voltage led indicators
LNB Voltage short circuit protection
ON-OFF switch and LNB voltage control
Auto fan cooling system

Input	17 F Connectors (16IF+1RF) (75 Ohm)
Output	1 SC/APC (Full Band) Optical Connector
TERR Frequency Range	47-870MHZ
Satellite Frequency Range	950-2150MHZ
Satellite Gain	23dB ±2
Terr Gain(DVB-C/DVB-T)	15 dB ± 1
Gain Adjustment	0-15 dB (with multi-turn trimpot)
Optical Wavelength Width	1270-1570 nm (CWDM)
Max. Terr Signal Input	90 dB ± 5
Max. Sat Signal Input	80 dB ± 5
Optical Output Power	4 mW (6dBm)
Power Supply	100-240 VAC 50 W
Operating Temperature	-40+85°C
Dimensions	480x285x90mm
Weight	4300 gr
