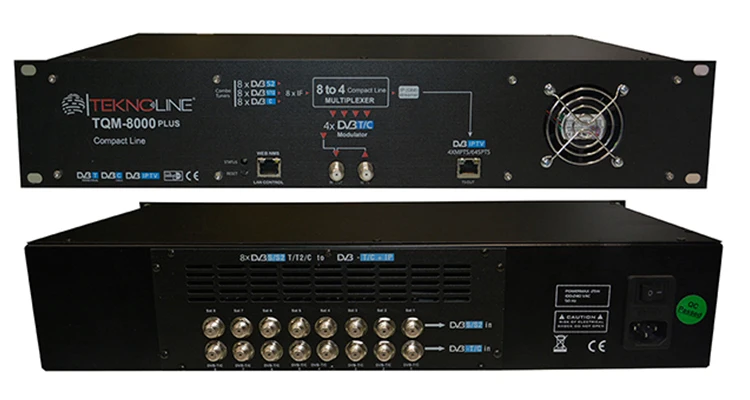

High Quality MULTIPLEXER TQM 8000 PLUS 8 TO 4

MULTIPLEXER TQM 8000 PLUS 8 TO 4
Input Specifications
IF Input
Type 8 x IF DVB-S/S2 (QPSK, 8PSK)
Input frequencies 950...2150 MHz
Connector 75Ω - F, female
LNB
Voltage OFF / 13V / 18V
Current < 400mA
22 KHz signal On / Off
-Voltage 0.65V ±0.35V
-Frequency 22 KHz ±4Hz
-DiSEqC 1.0 (Port A, B, C, D)
DVB-S
Symbol Rate 1 - 45 MBaud
Roll off factor 0.35
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8 (Automatic)
Spectral Inversion Reverse, Non-reverse (Automatic)
DVB-S2
Constellation QPSK, 8PSK (Automatic)
Symbol Rate 1 - 45 MBaud (QPSK)
1 - 30 MBaud (8PSK)
Roll off factor 0.2 / 0.35 (Automatic)
Code Rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
Spectral Inversion Reverse, Non-reverse (Automatic)
Output Specifications
DVB-T
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard Interval 1/4, 1/8, 1/16, 1/32
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C
Bandwidth 5, 6, 7, 8 MHz
Mode2K, 8K
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol Rate 1-7.2 Ms/s
TQM-8000 FTA User Manuel 22
RF Output
Type 4 x RF out in adjacent channels
Output Frequencies 36...950 MHz (1 Hz step)
Output Level 90dBμV
Connector 75Ω - F, female
Output Attenuator 0...-20dB
MER >40dB
Output loop-through loss <1dB
Transport Stream Processing
Services User selection by service names
Automatic Regeneration PAT, CAT, SDT, PMTs, EITs tables
NIT Pass-through
PCR re-stamping
LCN support Yes
IP Streaming
IP TS Out Yes
Protocol UDP / RTP (Multicast/Unicast)
Speed 1 Gbit (480 Mbps in IP only mode)
IGMP support Yes, v2, v3
Type MPTS (up to 4 TS)
