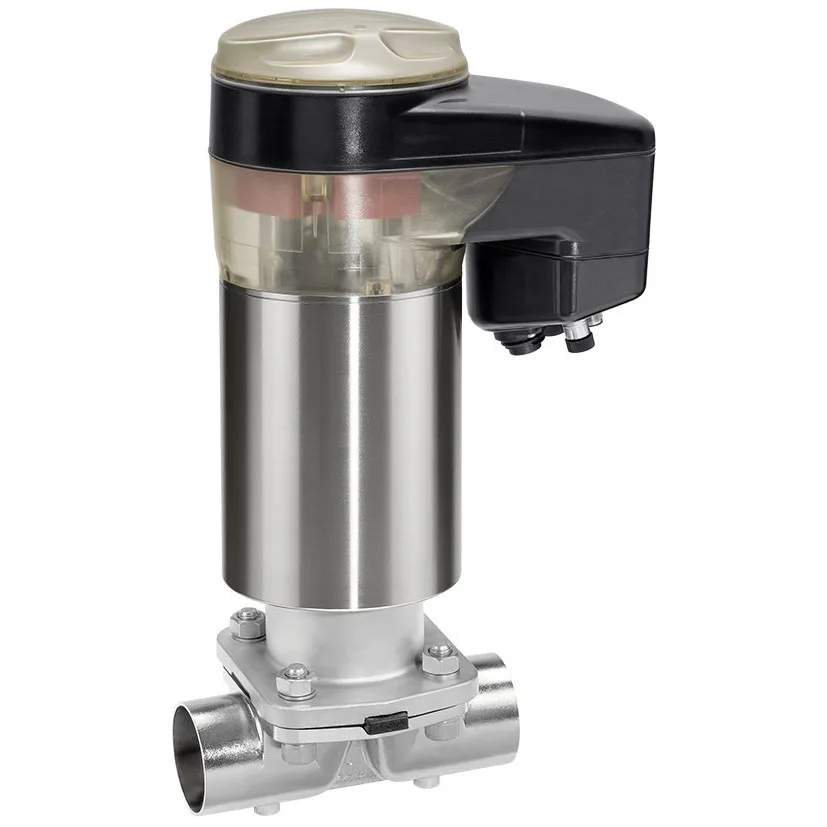

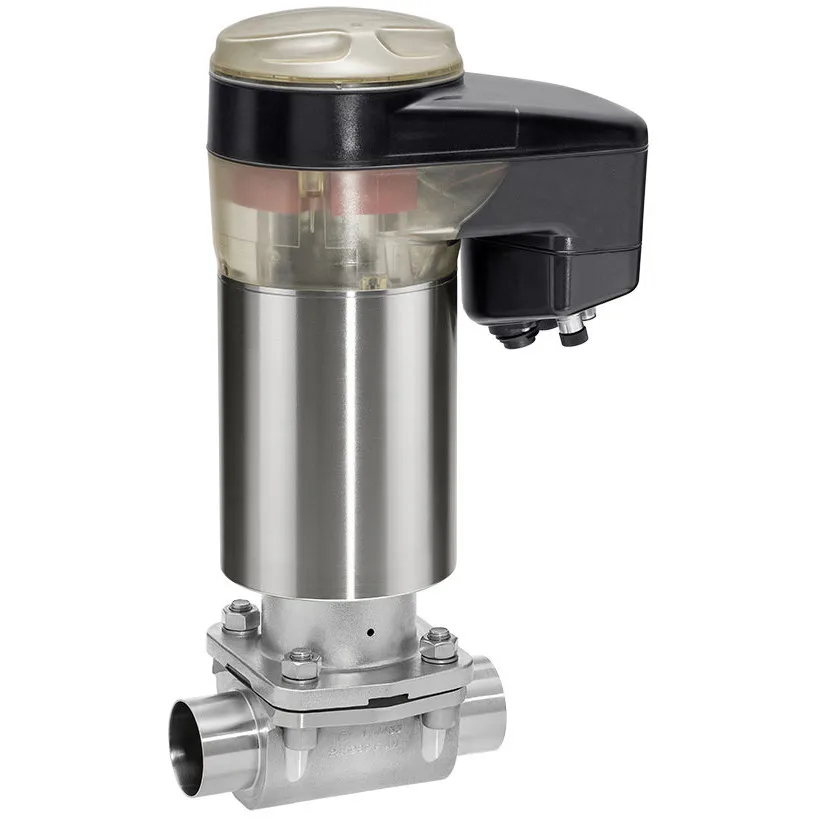

Diaphragm valve 649 eSyDrive Made in Germany

The GEMUe 649 eSyDrive diaphragm valve is actuated by a motorized hollow shaft actuator. It is based on technology that does not use brushes or sensors and therefore guarantees high performance and a long service life. In addition to OPEN/CLOSE applications, the valve is ideal for variable and complex control applications. The actuator has an integrated web server for parameterization and diagnosis purposes.
Hermetic separation between medium and actuator
Installation for optimized draining is possible
Open/close function, positioner and process controller
Force and speed are variably adjustable
Extensive diagnostic functions
Operable via web interface eSy-Web or Modbus TCP
Various functions of add-on components and accessories are already integrated (e.g. position indicators, stroke limiters, etc.)

Technical specifications
Body configurations:2/2-way body | i-body | Multi-port body | T body | Tank valve body | Welding configuration
Connection types:Clamp | Flange | Spigot | Threaded connection
Connection standards:ANSI | ASME | BS | DIN | EN | ISO | JIS | SMS
Body materials:1.4408, investment casting material | 1.4435 (316L), forged material | 1.4435 (BN2), forged material | 1.4435, investment casting material | 1.4539 (904L), forged material | EN-GJL-250, cast iron material | EN-GJS-400-18-LT, SG iron material
Body lining:Hard rubber | PFA | PP
Diaphragm materials:CR | EPDM | FKM | NBR | PTFE/EPDM
Protection class:IP 65
Conformities:BSE/TSE | EAC | Oxygen | Reg. (EU) No. 10/2011 | Regulation (EC) No. 1935/2004 | Regulation (EC) No. 2023/2006 | TA Luft (German Clean Air Act) | USP

Characteristics:

Pictures:

We offer various payment options. Please contact us for futher details.

1. Our products are packed according to the international export packing standards for seaworthy packing: carton box, plastic bag, wooden or iron/steel pallet or container.


2. We can also deliver our products carefully packed according to customer requirement. Please contact us for getting further details.


3. Packaging includes the full set of documents and (if necessary) operate maintenance and engine operate manual, spare parts list and set of inspection certificate issued by manufacturer.
