Product Overview

Description



Product Description

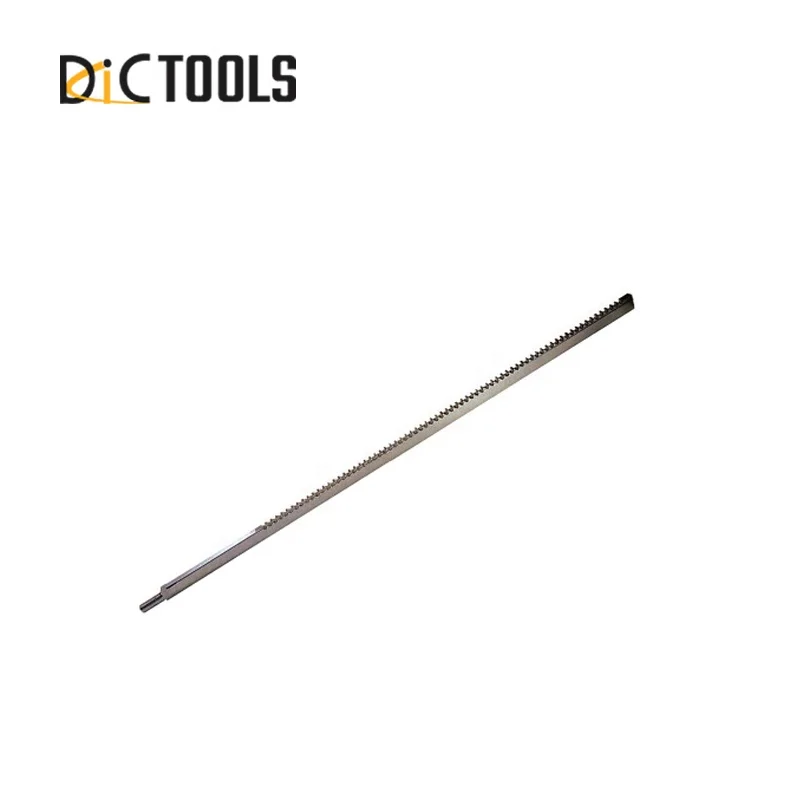

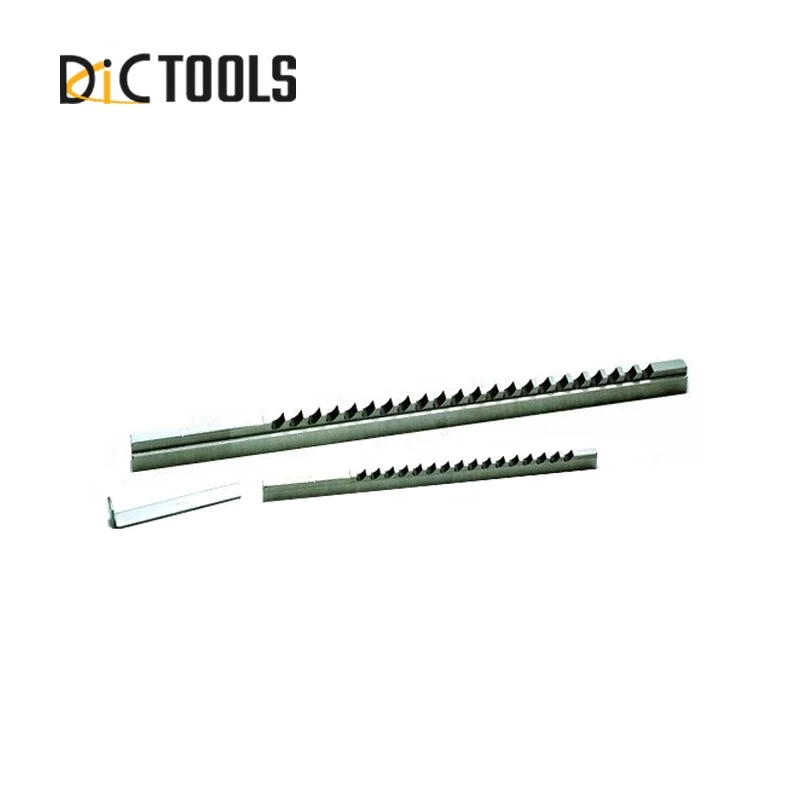

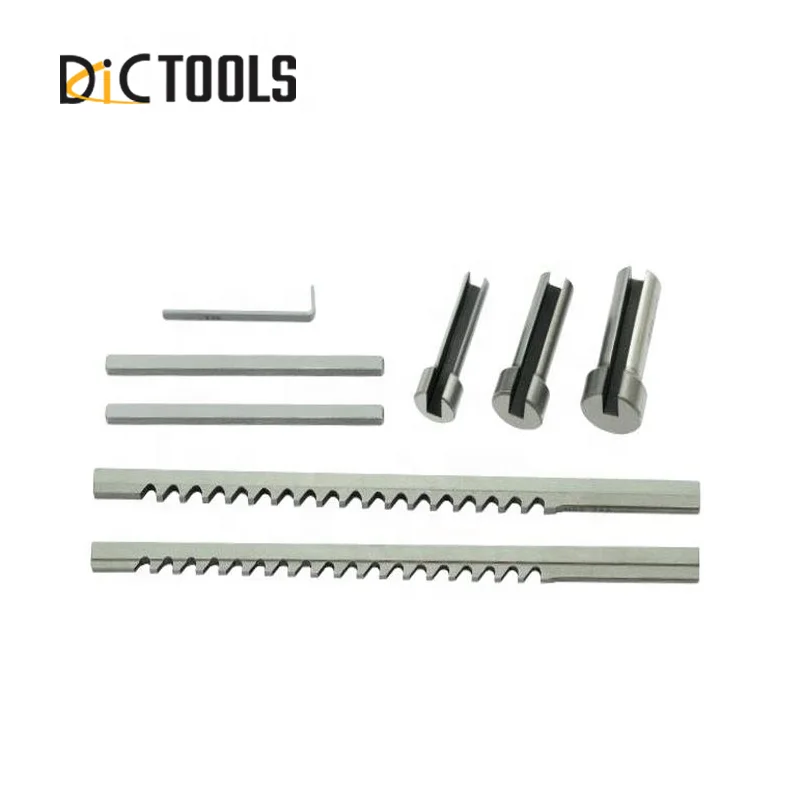

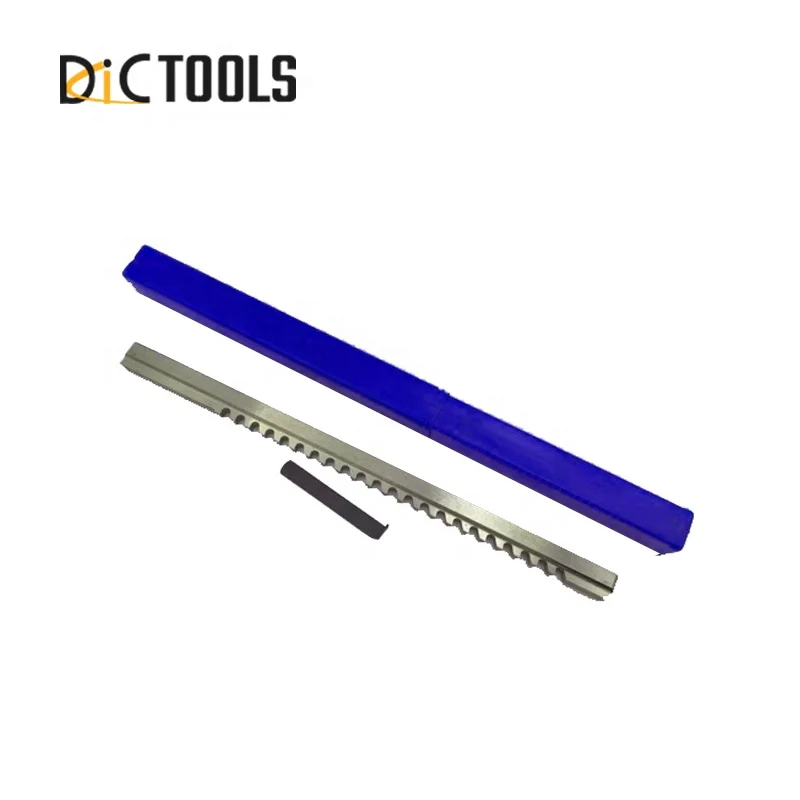

Pull Type Keyway Broaches:-
We are Manufacturer and Exporter of Pull Type Keyway Broaches which are used in high volume production. These are available in Both Inch as well as Metric Sizes. Pull Type keyway Broaches are available either as industry standard 500series or 600 series. The Material used for Push Type Keyway Broaches is HSS M-2, M-35, M-42, ASP 2030, ASP 2052 or it can be also made as per requirement.
SPECIFICATIONS AND FEATURES:
* Material : HSS M-2, M-35, M-42, ASP 2030, ASP 2052 Available in all Standards
* Nominal Dia. : 10mm- 85mm
* Pull Type Keyway sizes : 1/16- 5/32, 3/16- 1/4, 9/32-7/16, 1/2-5/8, 3/4 – 1
* Keyway length : 2mm to 25mm


Details Images






Technical Specification


Nom Dim A
Decimal Dim A
Min Hole Size
Min - Max Length of Cut
B
C
D
E
F
G
#of Cuts
1/16"
.0635"
3/8"
3/8 - 1 1/4"
0.1552
20
0.313
0.271
7 13/16
0.042
1
3/32"
.0948"
7/18"
1/2 - 1 1/2"
0.1865
24
0.367
0.309
8 1/4
0.058
1
3/32"
.0948"
5/8"
5/8 - 2 1/2"
0.249
33
0.491
0.433
10
0.058
1
1/8"
.126"
1/2"
1/2 - 1 1/2"
0.249
30
0.438
0.364
9
0.074
1
1/8"
.126"
7/8"
5/8 - 2 1/2"
0.3115
33
0.594
0.52
10
0.074
1
5/32"
.1572"
19/32"
1/2 - 1 1/2"
0.249
30
0.525
0.436
9
0.089
1
5/32"
.1572"
23/32"
5/8 - 2 1/2"
0.3115
33
0.625
0.536
10
0.089
1
3/16"
.1885"
11/16"
5/8 - 2 1/2"
0.374
36
0.581
0.476
10
0.105
1
3/16"
.1885"
15/16"
11/16 - 3 1/2"
0.374
36
0.796
0.691
10 11/16
0.105
1
7/32"
.2198"
11/16"
5/8 - 2 1/2"
0.374
33
0.557
0.437
10
0.12
1
11/32"
.2198"
15/16"
11/16 - 3 1/2"
0.374
42
0.813
0.693
11 1/16
0.12
1
1/4"
.251"
11/16"
5/8 - 2 1/2"
0.374
36
0.612
0.476
10
0.136
1
1/4"
.251"
1"
11/16 - 4"
0.499
45
0.877
0.741
12
0.136
1
1/4"
.251"
1 7/16"
7/8 - 6"
0.624
51
1.25
1.114
13 3/4
0.136
1
9/32"
.2828"
7/8"
11/16 - 4"
0.499
42
0.716
0.564
11 5/8
0.152
1
9/32"
.2828"
1 1/4"
7/8 - 6"
0.499
51
1.093
0.941
13 1/2
0.152
1
5/16"
.314"
1"
11/16 - 4"
0.499
45
0.908
0.741
12
0.167
1
5/16"
.314"
1 5/16"
7/8 - 6"
0.499
51
1.158
0.991
13 3/4
0.167
1
3/8"
.3765"
1 1/16"
11/16 - 4"
0.499
45
0.938
0.739
12
0.199
1
7/16"
.439"
1 5/16"
11/16 - 4"
0.624
48
1.39
1.16
12
0.23
1
7/16"
.439"
2"
1 - 8"
0.624
48
1.611
1.496
15 5/8
0.23
2
1/2"
.5015"
1 1/2"
11/16 - 4"
0.624
48
1.312
1.051
12
0.261
1
1/2"
.5015"
1 1/2"
1 - 8"
0.624
48
1.377
1.246
16 1/2
0.261
2
9/16"
.5645"
1 3/4"
11/16 - 4"
0.6865
54
1.438
1.146
11 13/16
0.292
1
9/16"
.5645"
1 5/8"
1 - 8"
0.6865
51
1.391
1.245
16
0.292
2
9/16"
.5645"
2 1/4"
1 1/8 - 12"
0.874
60
1.641
1.495
20
0.292
2
5/8"
.627"
1 7/8"
1 1/16 - 4"
0.749
60
1.625
1.301
12
0.324
1
5/8"
.627"
2 1/2"
1 - 8"
0.874
54
1.657
1.495
16 3/8
0.324
2
5/8"
.627"
2 1/4"
1 1/8 - 12"
0.874
60
1.657
1.495
20
0.324
2
3/4"
.752"
1 7/8"
11/16 - 4"
0.874
60
1.625
1.239
12
0.386
1
3/4"
.752"
2"
1 - 8"
0.999
60
1.688
1.495
16 1/4
0.386
2
3/4"
.752"
2 1/4"
1 1/8 - 12"
0.999
60
1.688
1.56
20
0.386
3
7/8"
.877"
2 1/4"
11/16 - 4"
1.124
63
1.875
1.426
12 3/8
0.449
1
7/8"
.877"
2 1/4"
1 - 8"
1.124
63
1.719
1.494
15 3/4
0.449
2
7/8"
.877"
2 1/4"
1 1/8 - 12"
1.124


Main Products








Packing & Delivery






Company Profile


Dedicated Impex Company is well-reputed manufacturer and exporter of HSS & Carbide Cutting Tools. Our products are manufactured by using best material and modern techniques, which make them extremely up to the standard in this challenging domain. The offered products are highly appreciated among customers due to their corrosion resistance, robust design, optimum finish and high tensile strength. Also, these are available in various sizes, dimensions and patterns in order to meet the requirements of customers.

DIC TOOLS consider quality as an integral aspect of our process as it's not only for satisfies customers but also imparts us with a feeling of contentment. Quality is our mission. We maintain a strict quality management policy, which is religiously practiced within the organization.




FAQ


Q1: Are you manufacturer & exporter?
A1: Yes, we are manufacturer & exporter.

Q2: What is your Core Products?
A2: Our Main Product is HSS & Carbide Cutting Tools.

Q3: What’s Warranty of your product?
A3: One year Warranty for all products

Q4: How long is your delivery time?
A4: 15 days to 20 days for normal order, Delivery time depends on order qty.

Q5: free of cost sample?
A5: Depending on your order quantity, after confirmed order.
