3way valve for Wall Hung Gas boiler
3way valve for Wall Hung Gas boiler

3way valve for Wall Hung Gas boiler

Share on (50037713312):


Price:RUB 303.28 - RUB 530.73

Quantity:


Product Overview

Description

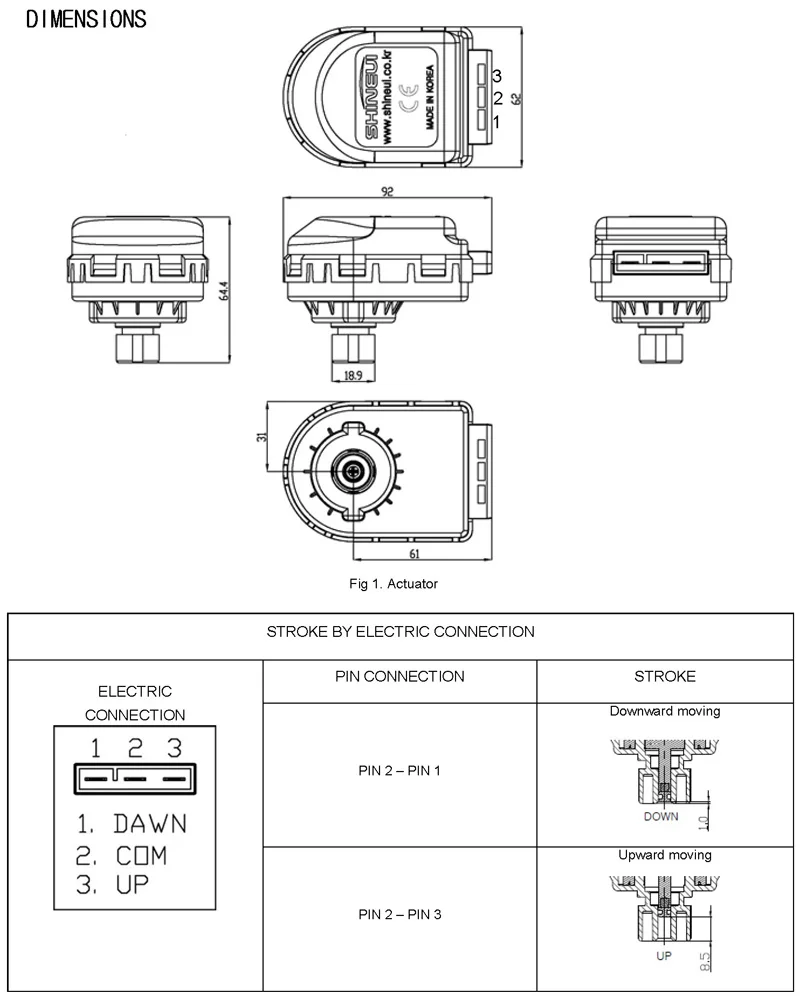

Model

STV-LM39-7.5mm
Torque75N
Response time
<depend on RPM>

Low -> High : 5.5sec

High -> Low : 4.5sec

Max Strocke7.5mm
MotorSynchronous Motor, 3.3 / 4 RPM, 50 / 60Hz
Watt3W
VoltageStandard : 220VAC (Option : 24VAC, 110VAC)
InsulationMore than 500 MΩ (between electric wire and body by DC 500V Megger)
Withstand voltage1,500VAC/1min (between electric wire and body)
Ambient temperature-25 ~ 70 ℃
Electrical connection250 TAP TERMINAL (0.8T)
