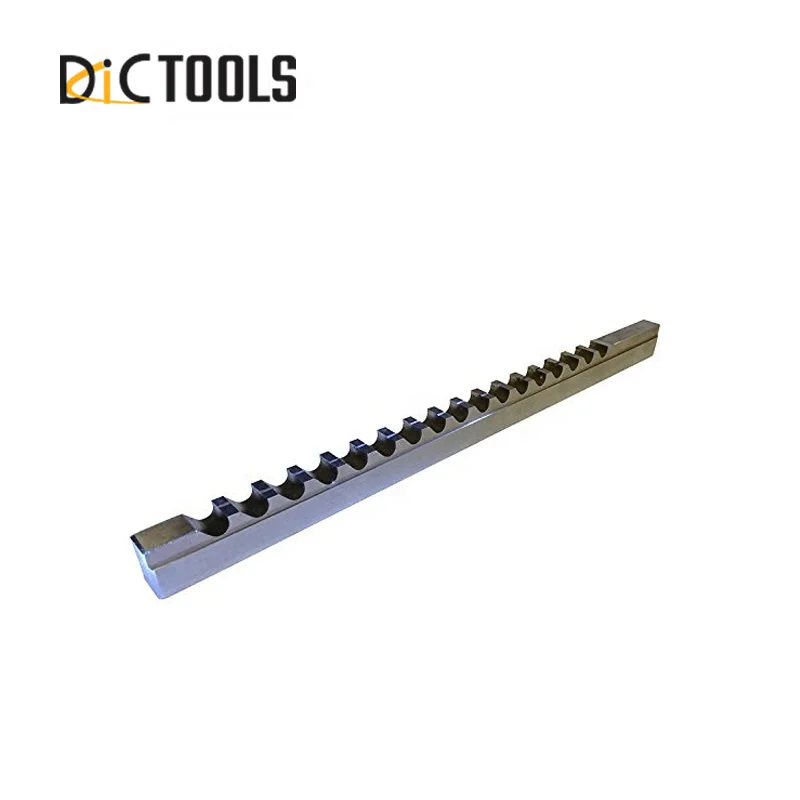

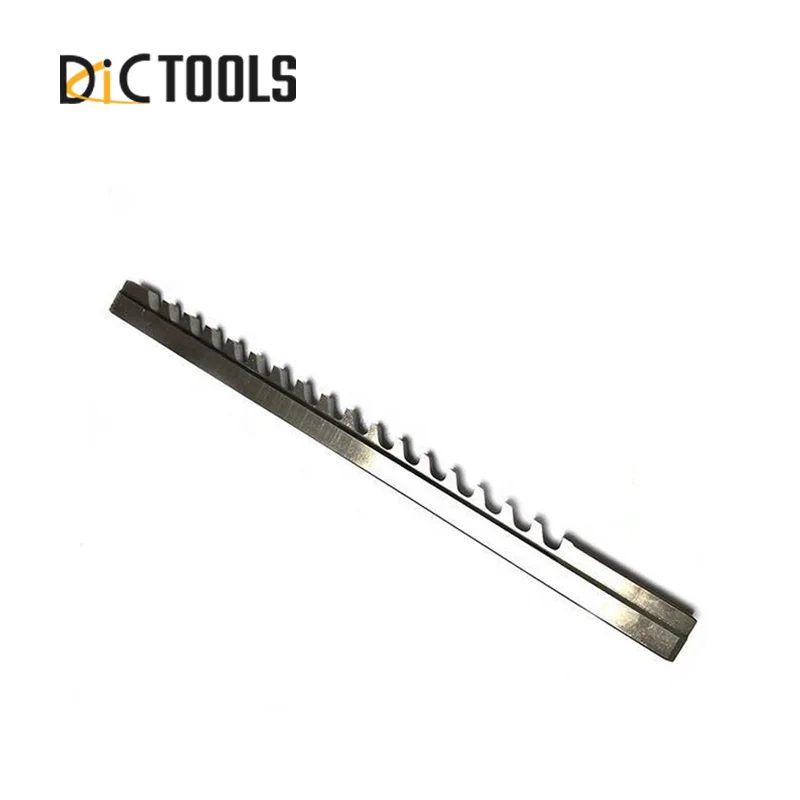

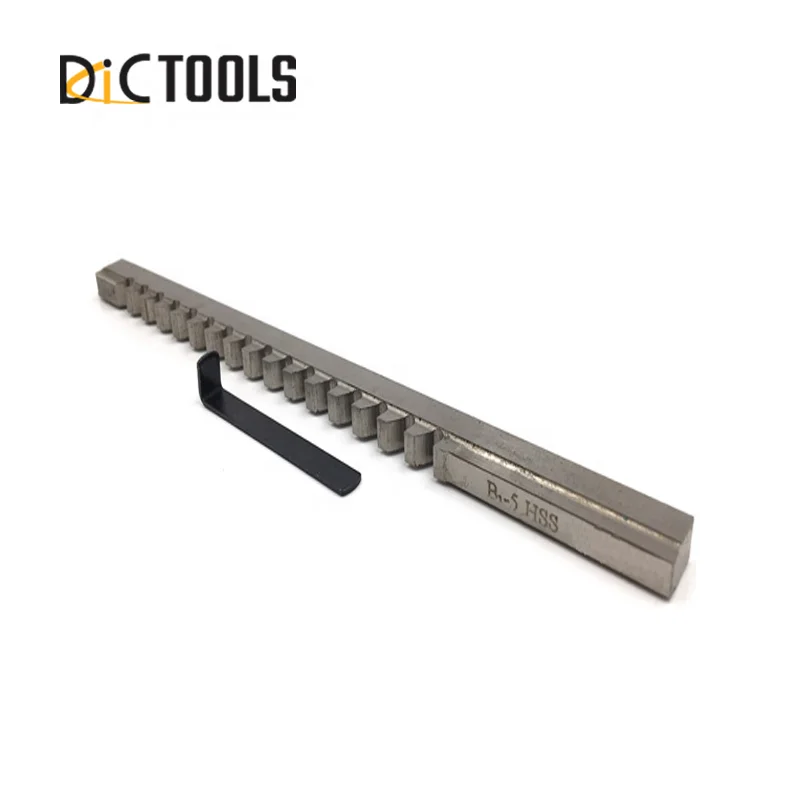

We are Manufacturer and Exporter of Push Type Keyway Broaches which are supplied with necessary shims.Push Type Keyway Broaches features the most common Metric Sizes from 2mm to 45mm. It should be kept in mind that Broach and Bushing style must match. The Material used for Push Type Keyway Broaches is HSS M-2, M-35, M-42, ASP 2030, ASP 2052 or it can be also made as per requirement. We are fully equipped to supply special Special Push Type Keyway Broaches to your specifications. These Broaches are available in Inch as well as Metric sizes. We can also supply these Broaches as per our customer requirement of material and sizes.
Details Images
Technical Specification
EDP NO.
Broach Size
Style
Tolerance (Decimal Equiv.)
Broach Dimensions
Standard Millimetre Key
Shim Req
No. of Teeth
44401
2
A
.0782-.0791
1/8 x5
2 x 2
18
44402
3
A
.1176-.1185
1/8 x5
3 X 3
1
18
44403
4
B1
.1569-.1579
1/4 X 6 3/4
4 X 4
1
16
44404
5
B1
.1963-.1972
1/4 X 6 3/4
5 X 5
1
16
44405
5
C
.1963-.1972
3/8 X 11 3/4
5 X 5
1
22
44406
6
C
.2356-.2366
3/8 X 11 3/4
6 X 6
1
22
10232
7
C
.2749-.2763
3/8 X 11 3/4
7 x 6
1
22
44407
8
C
.3143-.3155
3/8 X 11 3/4
8 X 7
2
22
44408
10
D
.3930-.3942
9/16 X 13 7/8
10 X 8
2
17
44409
12
D
.4716-.4730
9/16 X 13 7/8
12 X 8
2
17
44410
14
D
.5503-.5517
9/16 X 13 7/8
14 X 9
2
17
44411
16
E
.6290-.6304
3/4 X 15 1/2
16 X 10
3
20
44412
18
E
.7078-.7092
3/4 X 15 1/2
18 X 11
3
20
44413
20
F
.7864-.7880
1 X 20 1/4
20 X 12
3
26
44414
22
F
.8651-.8667
1 X 20 1/4
22 X 14
4
26
44415
24
F
.9439-.9455
1 X 20 1/4
24 X 14
5
26
44494
25
F
.9832-.9848
1 X 20 1/4
25 X 14
4
26
10233
28
1.1025-1.1035
1 1/8 x 20 1/4
28 x 16
5
26
10234
32
1.2600-1.2610
1 1/4 x 20 1/4
32 x 18
5
22
10235
36
1.4175-1.4185
1 7/16 x 20 1/4
36 x 20
7 **
22
10236
40
1.5753-1.5760
1 9/16 x 20 1/4
40 x 22
7 **
22
10237
45
1.7718-1.7728
1 3/4 x 20 1/4
45 x 25
8 **
22
