75 Tonnes Capacity CEMENT Storage SILO, CEMENT TANK Cement Silo Manufacturing Plant,construction Works Pump Powder Silo Provided

CONSTMACH manufactures cement silos which has stock capacity from 30 to 3000 tons as welded and bolted types.

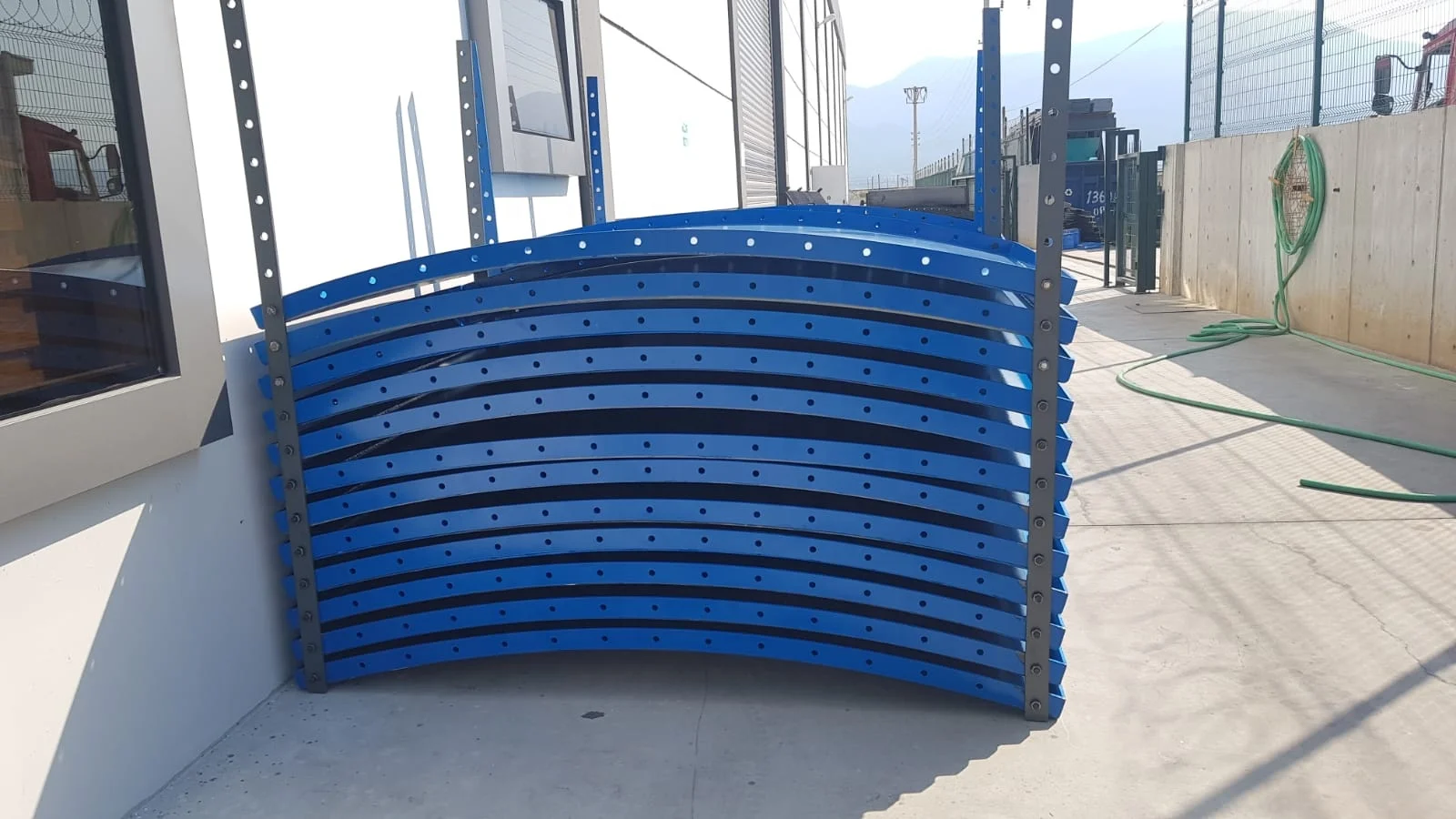

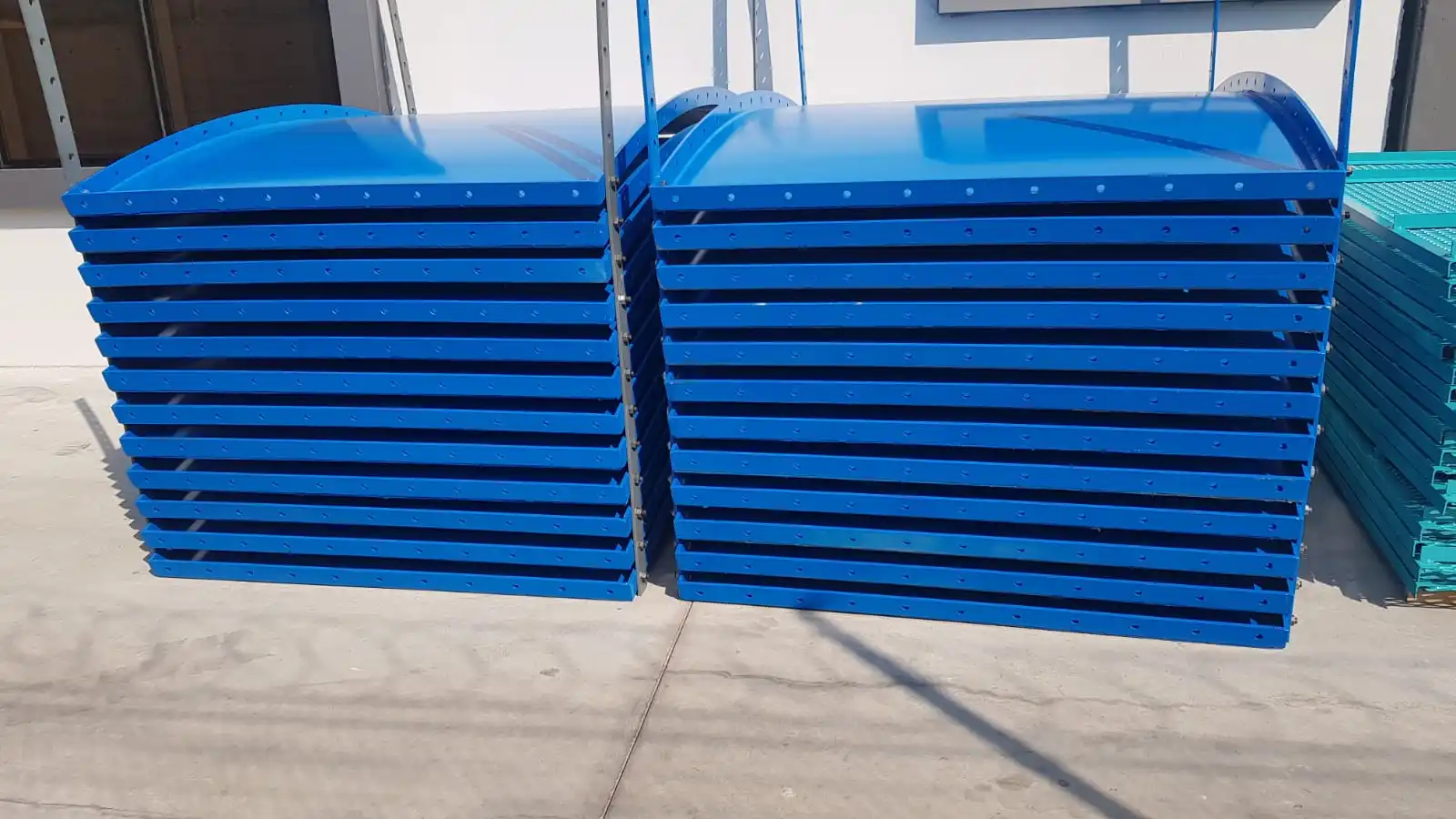

Parts of bolted type cement silos are manufactured by sensitive laser cutting and drilling methods. In jobsite, parts of cement silos can be assembled easily and sensitively.
Our cement silos includes all necessary accessories such electronic filter, filling pipe, butterfly valve, level indicator, safety valve, airjet pulse, manhole etc.

Parts of bolted type cement silos are manufactured by sensitive laser cutting and drilling methods. In jobsite, parts of cement silos can be assembled easily and sensitively.
Our cement silos includes all necessary accessories such electronic filter, filling pipe, butterfly valve, level indicator, safety valve, airjet pulse, manhole etc.

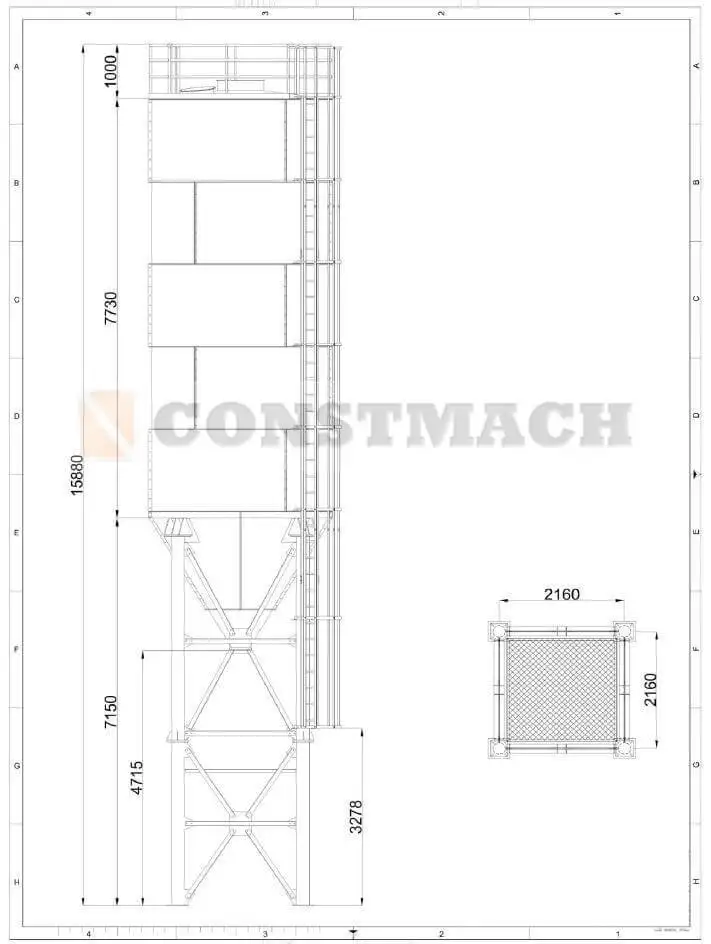

SILO CAPACITY: 75 TONS, 58 m³
SILO HEIGHT: 15880 mm
SILO DIAMETER: Ø 3060 mm
QUANTITY OF SILO LEGS: 4
SILO OUTPUT DIAMETER: Ø 300 mm
NUMBER OF COMPONENTS: 8
SILO WEIGHT: 6360 kg
MATERIAL OF SILO LEGS: 219x5 mm, STEEL PIPE
SUPPORTS OF SILO LEG: NPL 80 mm CORNER IRON
SHEET METALS OF SILO LEG: 20 mm SHEET METAL
CONICAL PART SUPPORT MATERIAL: 100 mm STEEL C CHANNEL
CONICAL PART MATERIAL: ST - 37 - 6 mm SHEET METAL
SILO BODY MATERIAL: ST - 37 - 5 mm SHEET METAL
SILO TOP COVER MATERIAL: ST - 37 - 4 mm SHEET METAL
CHARGING PIPE: 4" STEEL PIPE UP TO SILO LEG
INNER MANHOLE IS PRESENT
OUTER MAN HOLE IS PRESENT
SILO ROOF INCLUDES HANDRAILS
MAINTENANCE PLATFORM IS PRESENT
STRUCTURAL ANALYSIS IS MADE FOR THE SILOS AND MANUFACTURING PROCESS DEPENDS ON APPROVED PROJECTS.

Assembly & Training

- Assembly
- Commissioning of the plant
- 7 days free training & test production.

After-Sales Service

* 2 YEARS WARRANTY
* Engineers available to service machinery overseas.
* 10 YEARS SPARE PARTS WARRANTY
