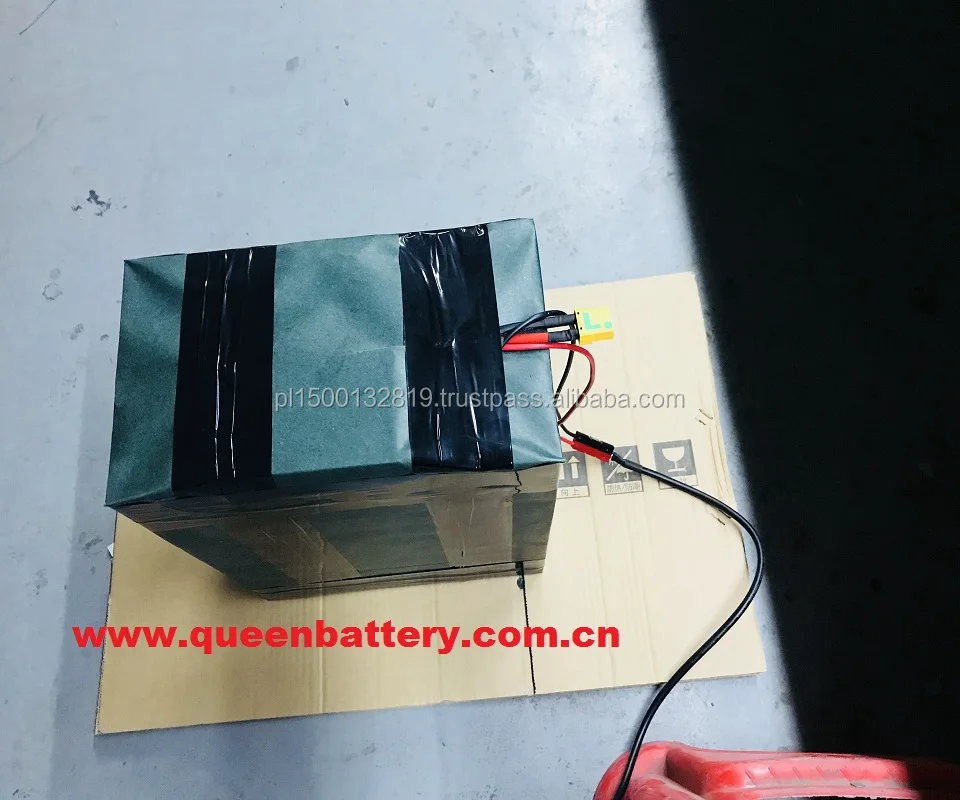

LIFEPO4 BATTERY PACK 20S8P 60V40AH 32650 WITH BMS with xt90 with anderson connector for EV

Product Overview

Description

LIFEPO4 BATTERY PACK 20S8P 60V40AH 32650 WITH BMS with xt90 with anderson connector for EV



1..Cell Types : Li-ion Battery 18650 , 3.7V, 2200mah,2600mah,2800mah,3000mah,2900mah 3200mah 3500MAH 3400MAH

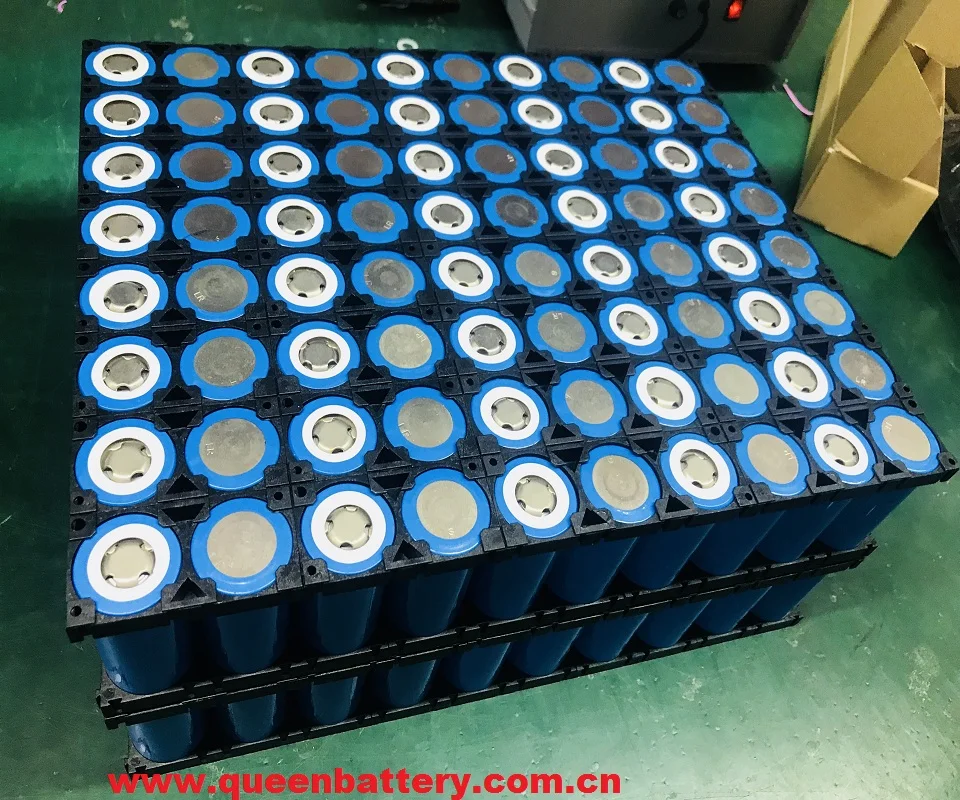

2. Battery Struction: 20S8P

3. Voltage\\Capacity: 60V40AH

4. Main Protecion Function: Over Charge,Over Discharge,Overcurrent, Overload , Short Circuit

5. Application : Electric bicycle, E-bike, EV, Electric scooter, Golf carts, Electric wheelchair



No.	Item		Specific
1	Nominal Voltage		60v
2	Nominal Capacity		40Ah
3	Discharge Protect Voltage		2.50±0.10V/CELL
4	Charge Current		50-100A(can be changed)
5	Size	Length	As sample
		Width	As sample
		Height	As sample
6	Working Temperature	Charge	0~45°C,45~85%RH
		Dis-charge	-20~55°C,45~85%RH
7	StorageTemperature and Humidity	One month:	-20~55°C,45~85%RH
		Two months:	-20~45°C,45~85%RH
		One year:	-5~+20°C,45~85%RH
8	Max Charge Voltage		73V
	PACKAGE		customized
9	Weight		15KG
	Charge Method		CC-CV









































LIFEPO4 BATTERY PACK 20S8P 60V40AH 32650 WITH BMS with xt90 with anderson connector for EV



Delivery Time:1-3working days



Delivery :UPS DHL FEDEX EMS etc.



Min order:200pcs



Payment:T/T or Paypal or WU









 Btw,offer all types 18650 cells with protected as well.customized all kinds of battery pack



 According to client's requirements
