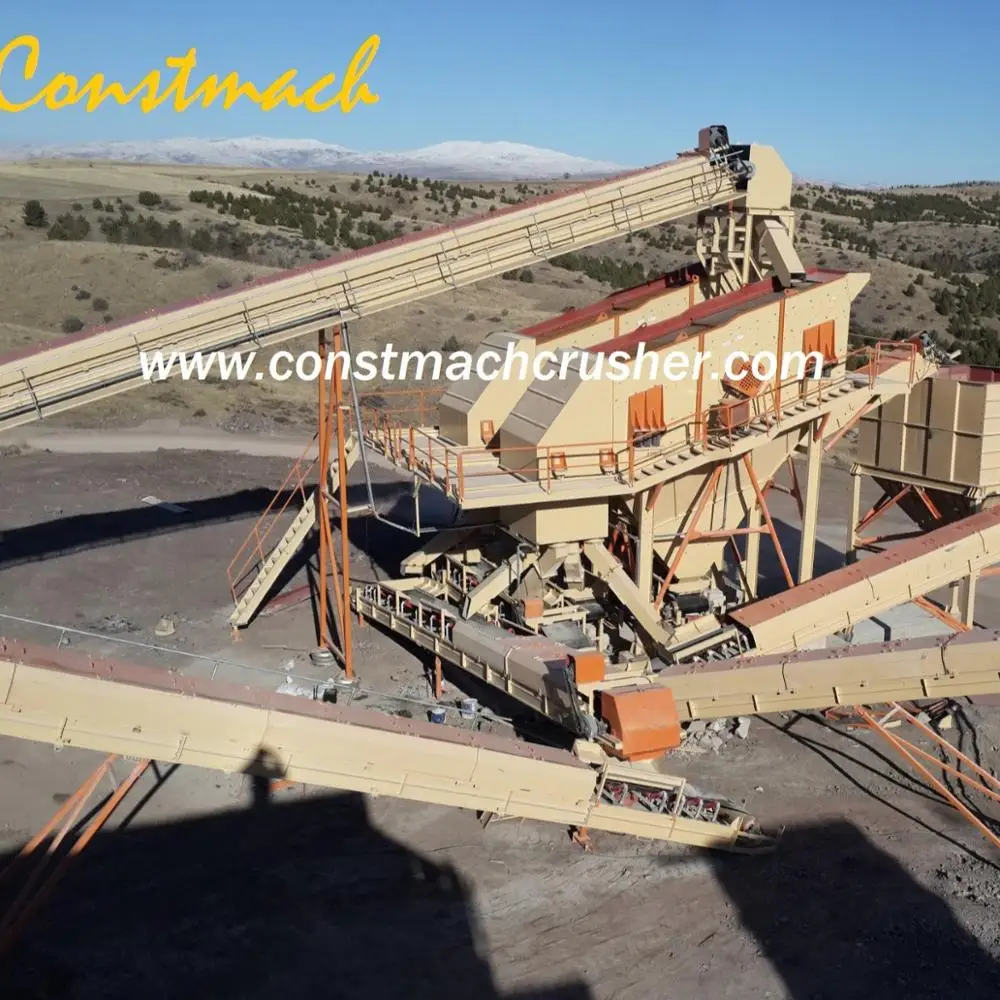

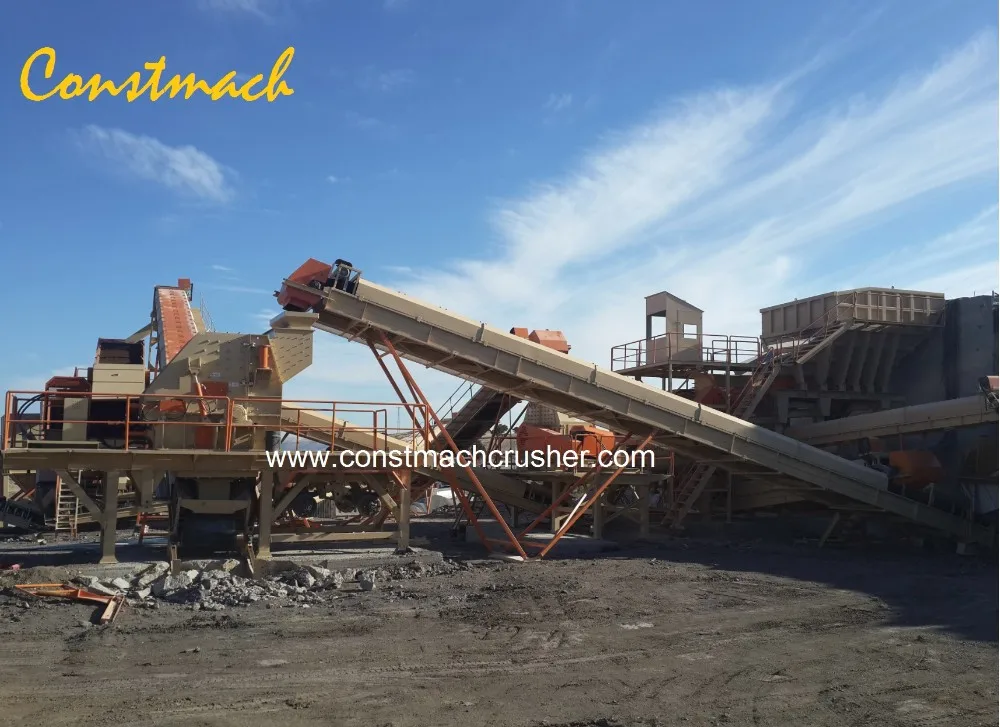

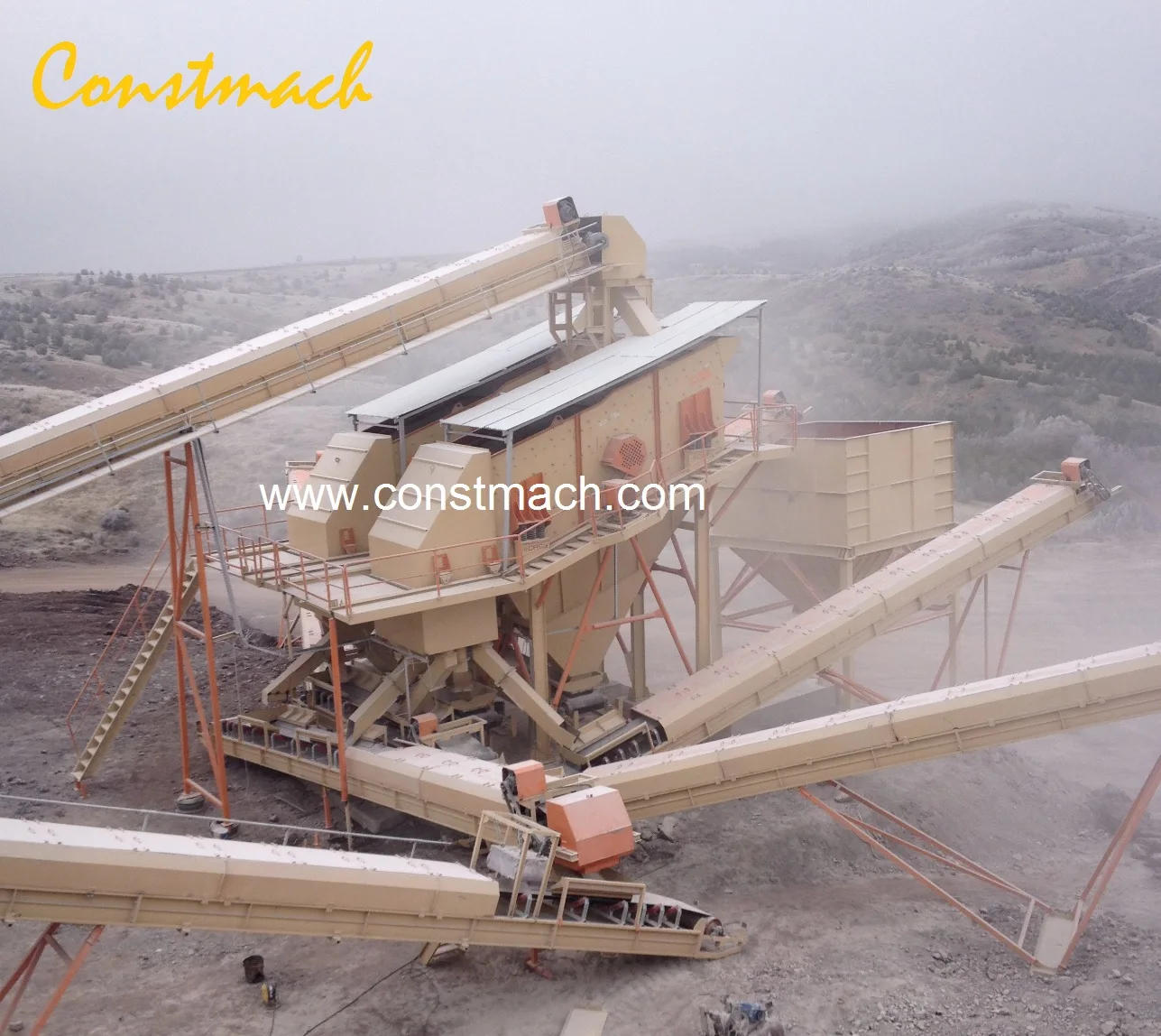

250 Tph Capacity Crushing Screening Plant Quarry, Stone Crushing 250 300 T/h 10 Years FREE of Charge

CONSTMACH HIGH QUALITY CRUSHING AND SCREENING PLANT FOR MIDDLE HARD STONES UP TO BASALT
SUITABLE SOLUTION TO MAKE  PROCESS LIMESTONE, BASALT AND OTHER TYPES OF MIDDLE HARD ROCKS.

Our company can provide many kinds of plans for customer choices. These plans are optimized combination of features of equipments and demands of customers. These technical indicators should be referred to:

1. Type of the materials to be crushed
2. Maximal size of the feeding material
3. Size of the final products and usage
4. Production capacity.

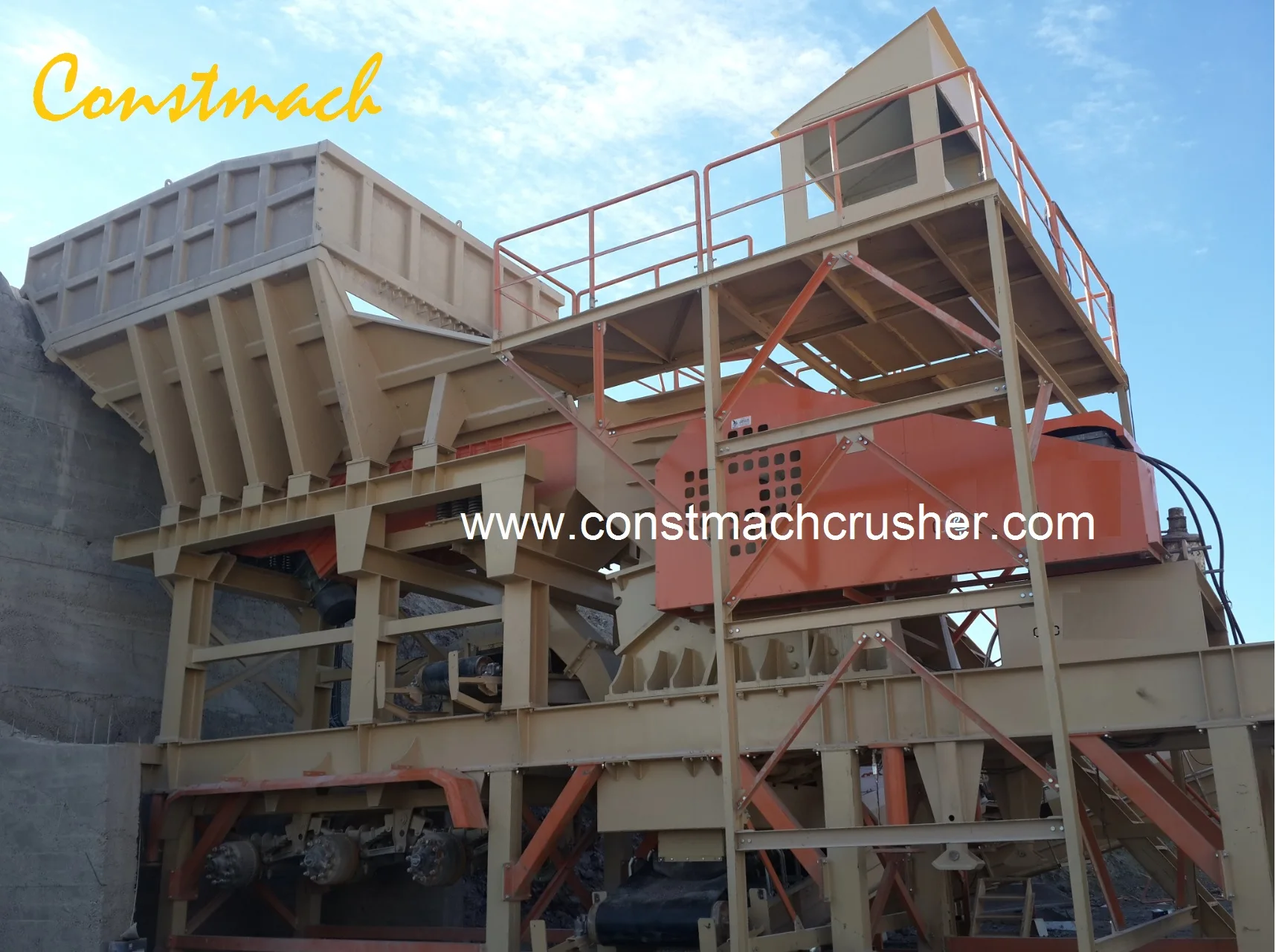

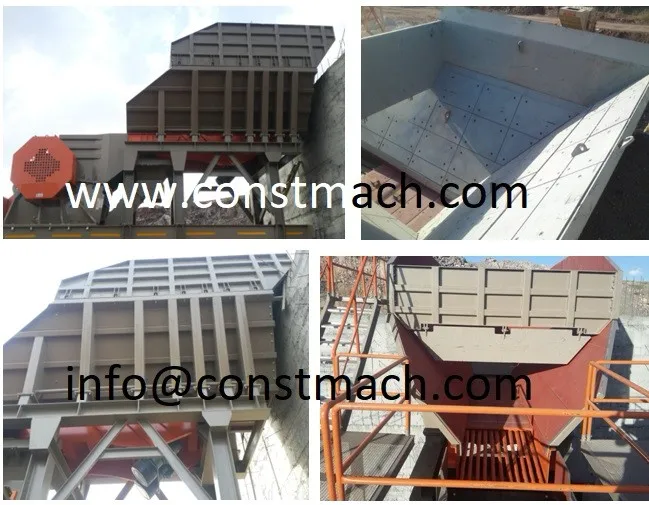

•\tDimensions : 1100 x 4600 mm
•\tHoppers Volume : 45 m3
•\tFeeding Capacity : 300 - 350 tons/h
•\tGrill Dimension : 1460 mm
•\tMain Body Thickness : 20 mm
•\tBody liners: HARDOX 450 – 10 mm
•\tWeight : 18,5 tonnes
•\tVibromotors : 2 x 9.2 kW – OLI Brand, Origin: ITALY
•\tWalking platforms are included.

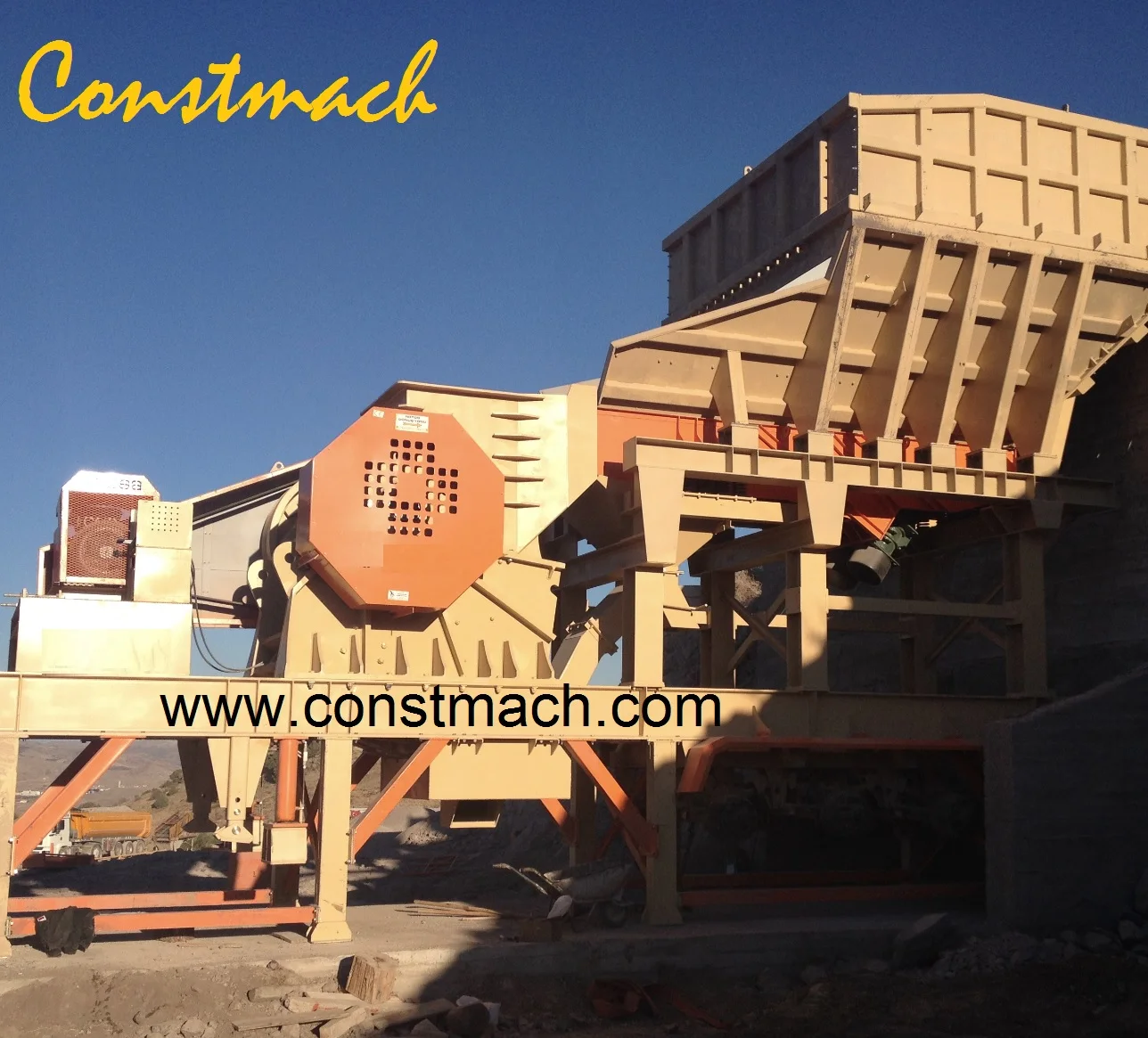

•\tFeed Opening size\t\t: 1.100 x 850 mm.
•\tCapacity: 250-300 tph
•\tMaximum feding size: 850 x 850 mm
•\tPower\t\t: Heavy duty AC motor, 132 kW.1450 rpm – EMTAŞ Brand
•\tJaws & abrasion parts: Special treated abrasion steel
•\tAbrasion steel treatment: Austenitic
•\tAbrasion – austenitic steel content:
•\t%16-18 Mn + % 2,2 Cr
•\tAbrasion – austenitic steel hardness > 450 HB
•\tPitman\t: GS 45 casting steel
•\tRotating (eccentric) mile/shaft : Cr - Ni - Mo forging steel
•\tBearings\t\t: Heavy duty,
•\tJaw adjustment mechanism : Mechanic
•\tCoating\t\t: Double lay epoxy coated after
•\tsand blasting and lining
•\tWalking – maintenance platformsa re included.

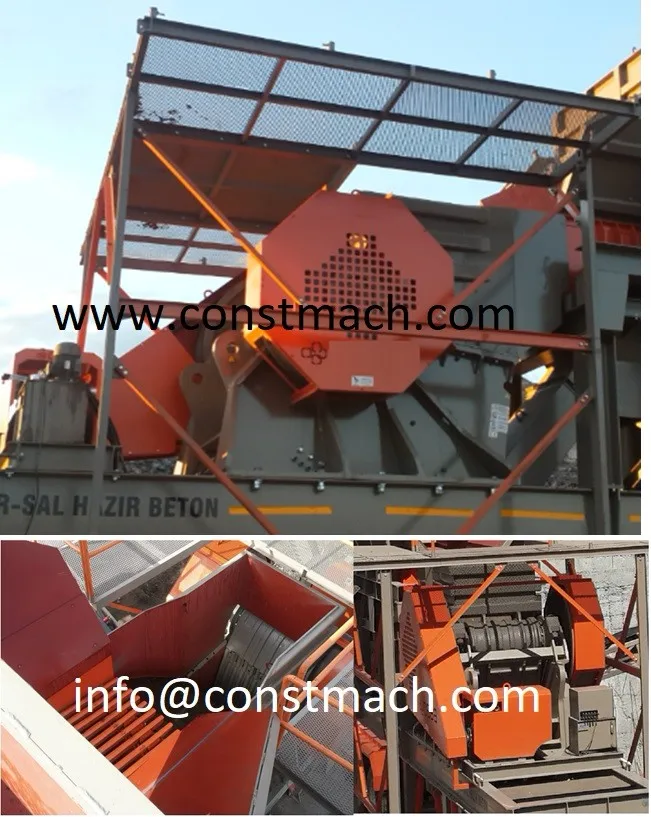

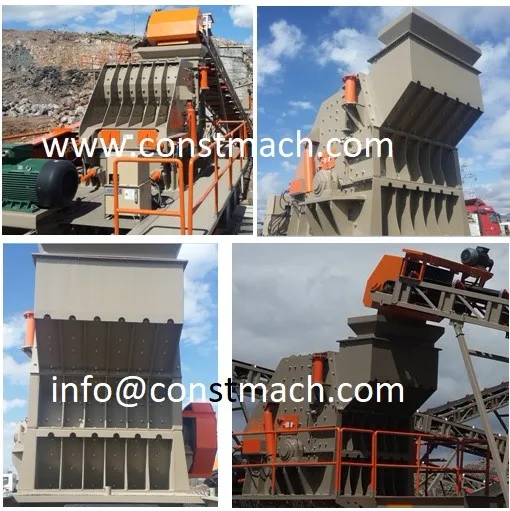

•\tModel : DMK 03
•\tMax. Feeding Size : 350 mm.
•\tRotor Size : 1400 x 1100 mm.
•\tInlet : 780 x 1250 mm.
•\tRotor Speed : 750 rev/min.
•\tCapacity : 300 - 350 tons/h
•\tMotor Power : 250 kW.
•\tWeight : 20,5 tones
•\tPallet material: Mn-Cr 18 %2.2 Mo
•\tHydraulic adjustment mechanism included.
•\tChassis and walking platforms are included.

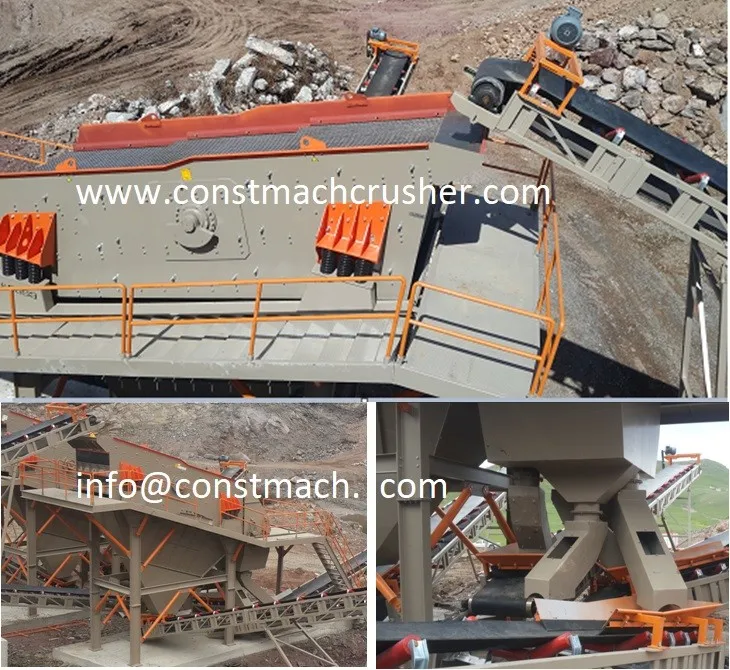

Model : CVS-2060/4
Dimension : 6.000 x 2.000 mm
Screen Layer : 4
Screening Surface : 12m²
Driving Power : 22 kW
Screen Pitch : 18º
Strok : 6 - 8 mm
Flow Speed : 0.45 m/s
Main Body Thickness : 12 mm
Bearings: Heavy duty type, SKF or FAG brand, Made in Germany
Discharging shoots are coated with HARDOX 450 – 10 mm sheets
Weight of the screen: 21 Tonnes

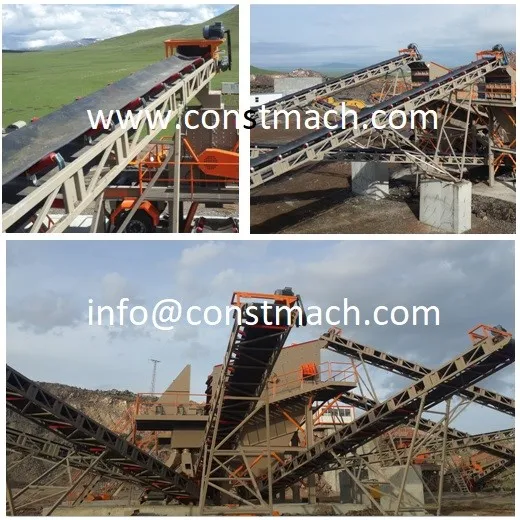

•\tBelt : EP125 : 10 mm
•\tDriving Drum : Ø420x12
•\tTail Drum : Ø373x10
•\tBearings : FAG or SKF Brand
•\tBushing : SNH-513
•\tWalking platform is included
•\tCovering is OPTIONAL

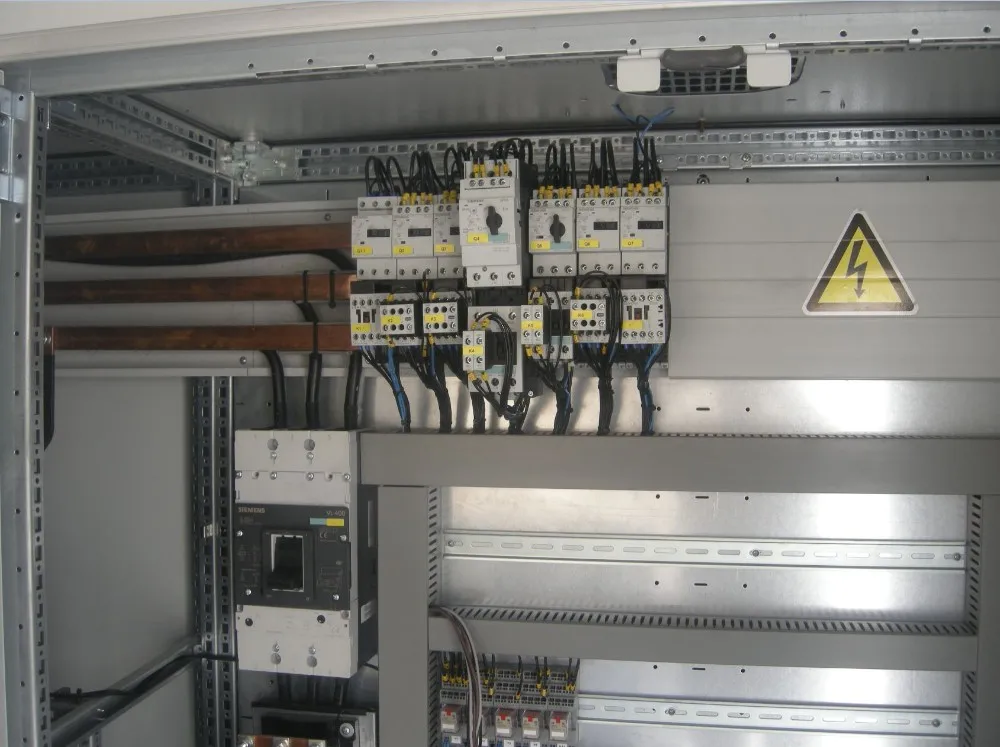

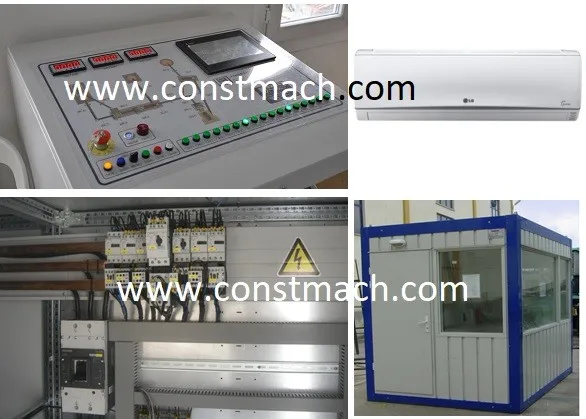

•\tDimensions : 2200x4000x2200 mm
•\tElectronic equipments : Siemens or Schneider Brand
•\tAir conditioner 12000 BTU
•\tHeat and noise isolated
•\tPVC door and windows
•\tWiring between plant equipment and control panel is included.

Assembly & Training

- Assembly
- Commissioning of the plant
- 7 days free training & test production.

After-Sales Service

* 2 YEARS WARRANTY
* Engineers available to service machinery overseas.
* 10 YEARS SPARE PARTS WARRANTY
