T 1200U Manually 1800~2,000 rpm Engine R.P.M Agricultural Chemical Fogger Pest control Vehicle mounted atomizer

Product Adavantage

1. Low noise, Low vibration, light weight, space saving design
2. Particle size:10~40 micron, Ultra Low Volume spraying
3. Automatic key type starting method
4. You can control the chemical spraying nozzle in the driver’s cabin in automatic way"

Usage

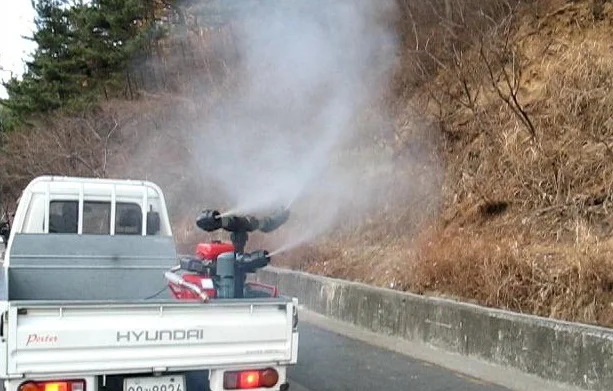

Mounted on the car and controlled by wireless-remote control system
Controlling Pest, Virus, Germs, and Harmful insects in 20-50 micron particles
3-Spraying nozzle -head direction to be adjusted manually or automatically
Hi-Power in 6.7 to 7.0HP gasoline engine
Low-noise, Low-vibration, and Space saving TANK-130lit. T-1200U / UA

Specification
Model 1200U /UA
How to Start Key Start -Auto/Manual
How to Control Remote Control
Chemical Consumption 50-150 liter / hour
Chemical Tank Capacity 150 liter
Fuel (gasoline)Consumption 2.16 to 2.64 liter / hour
Chemical Tank Capacity 130 or 150 liter
Engine Revolution 1800-2000 rpm
Nozzle Quantity 3 nozzles
Dry Weight 90.00kgs
Controlling Direction of 3
3 Nozzles Turning 180 ° by manual
Measurement(LxHxW ) 900 x 900 x 550 mm

"

MANSANG CO., LTD.

Address : 107-108, I-Dong, 19, 2 Sunhwan-Ro, 1124 Beon-Gil, Heungdeok-Gu,

Cheongju-Si, Chungbuk, 28363 Republic of Korea

Tel: 82-43-235-8104

Fax: 82-43-235-8103
