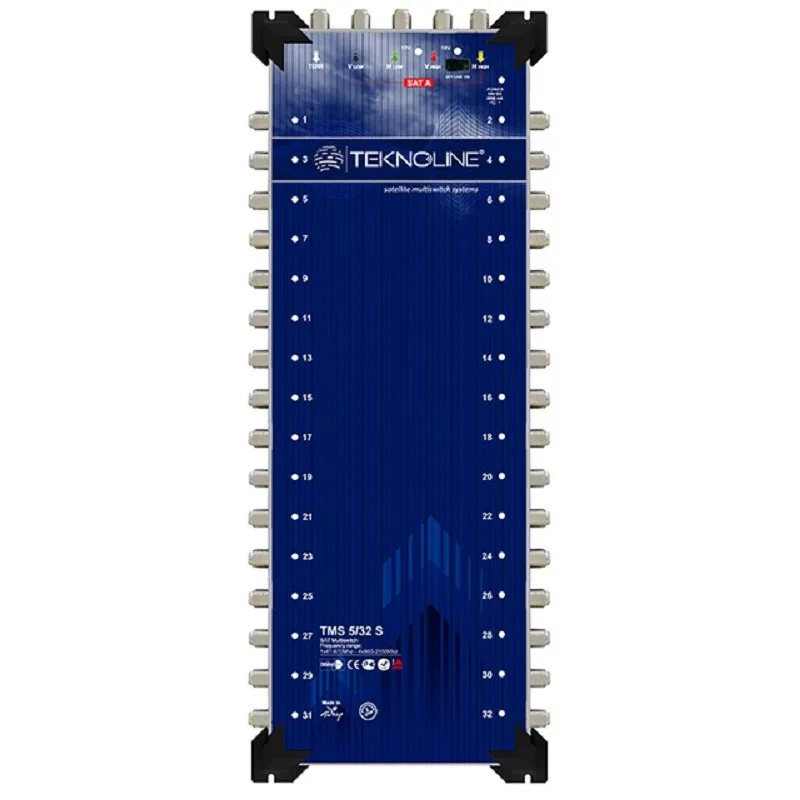

Satellite Multiswitch 5 in 32 out Stand Alone With Led Indicator

Quad & Quattro LNB
LNB feeding 14V – 18V – 22KHz
Subscriber port protection up to 100 volt
100 meter distribution length for each subscriber

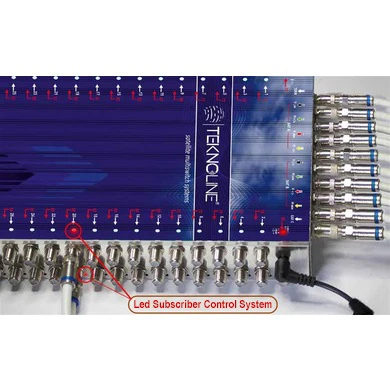

Subscriber control system with LED
Ergonomic and stylish design
Suitable to terrestrial digital broadcasts
Suitable to HD broadcasts
Doesn't select receiver with DISEqC 2.1 software
Low cascade loss in high subscriber distributions
Adapts to port locking systems
SAT TERR

Frequency Range 950-2150 Mhz 47-870 Mhz
Connection Gain +1dB ±1 -5dB ±2
Output Level (IMA 3) 102dBµV
Total Current Draw With LNB 450 mA (18V DC)
Decoupling SAT/TERR > 37 dB
Decoupling SAT/SAT > 33 dB
Decoupling Subscriber / Subscriber > 34 dB
