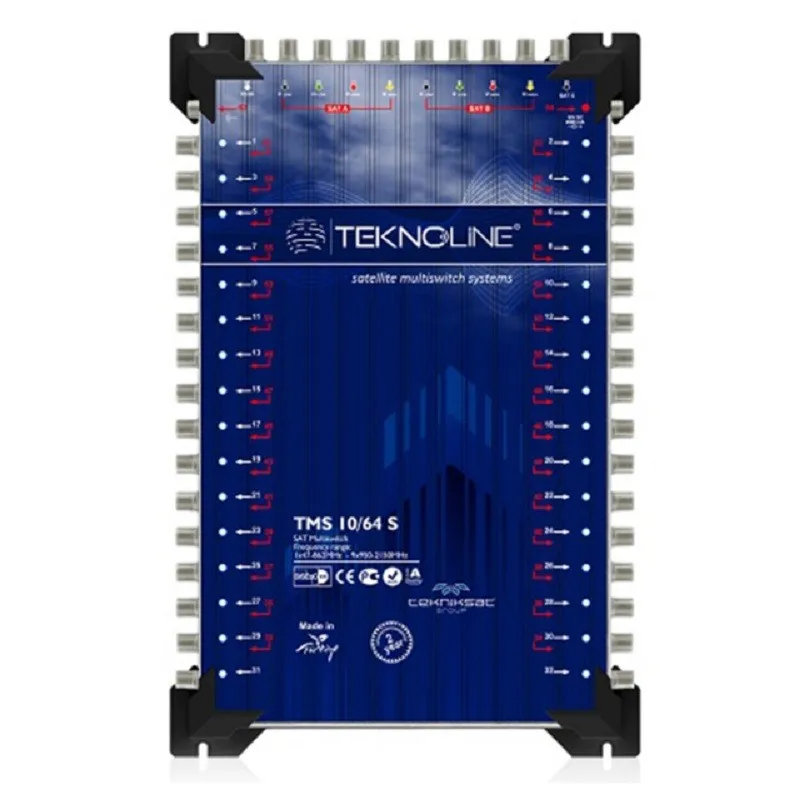

High Quality satellite multiswitch 10 input 64 output with indicator led and diseqc lnb power

• Quad & Quattro LNB

• Subscriber port protection up to 100 volt

• 100 meter distribution length for each subscriber

• Subscriber control system with LED

• Ergonomic and stylish design

• Suitable to terrestrial digital broadcasts

• Suitable to HD broadcasts

• Doesn't select receiver with DISEqC 2.1 software

• Low cascade loss in high subscriber distributions

• Adapts to port locking systems

SAT TERR
Frequency Range 950-2150 Mhz 47-870 Mhz
Connection Gain +2dB ±1 -4dB ±1
Output Level (IMA 3) 102dBµV
Total Current Draw With LNB 800 mA (18V DC)
Decoupling SAT/TERR > 37 dB
Decoupling SAT/SAT > 33 dB
Decoupling Subscriber / Subscriber > 34 dB
