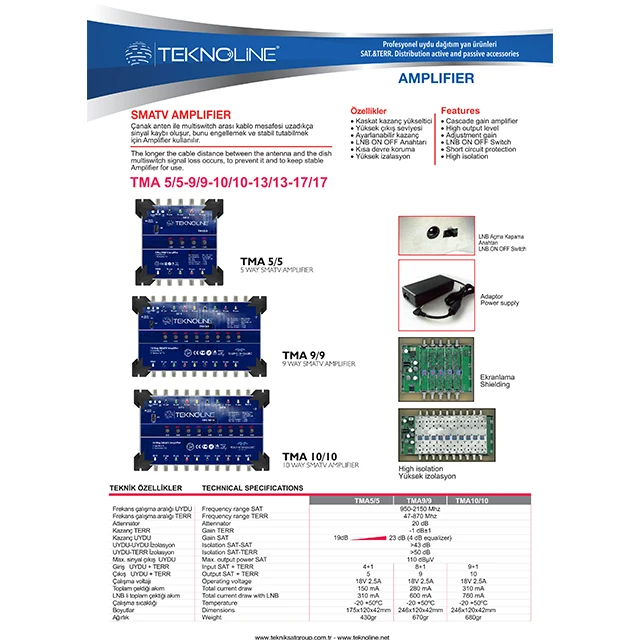

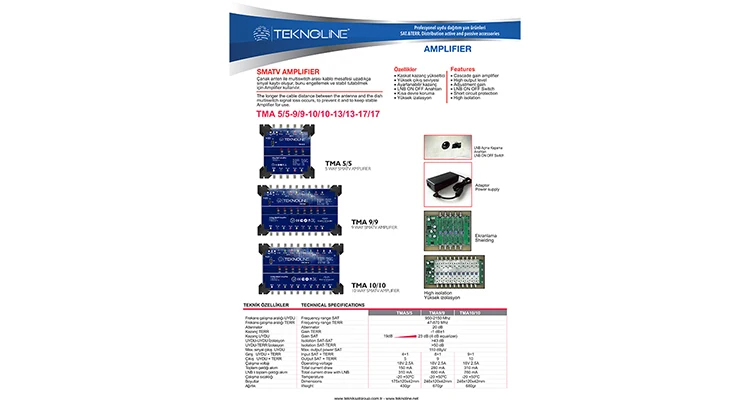

Cascade gain amplifier High output level Adjustable gain LNB ON/OFF switch Short circuit protection High isolation Frequency operation range SAT\t950-2150 Mhz Frequency operation range TERR\t47-870 Mhz Gain Adjustment\t20 dB TERR Gain\t-1 dB±1 SAT Gain\t19...23 dB (4 dB equalizer) SA-SAT Isolation\t>43 dB SAT-TERR Isolation\t>50 dB Max. signal out SAT\t110 dBµV SAT + TERR in\t8+1 SAT + TERR out\t9 Operation voltage\t16V 1,5A Total current\t280 mA Total current with LNB\t600 mA Operation temperature\t-20 +50ºC Dimensions\t246x120x42mm Weight\t670gr
\t
Color
\t
Material
\t
Frequency Range
\t
Blue
\t
SHEET METAL
\t
950-2150 Mhz
Detailed Images
Packing & Delivery
Packing and Delivery We pack your products in the best way and deliver them to you as soon as possible.
